• Model NO.：230
• Engraving Method：Vector Engraving
• Engraving Machine Type：Laser Engraving Machine
• Drive Type：AC Servo Drive
• Certification：SGS, CE
• Laser Type：Fiber Laser
• Control：Automatic
• Current：AC
• Condition：New
• Usage：Metal,Gold,Silver,Stainless Steel,Steel
• Power：10,30,20,50W
• Electrical Requirements：AC220V10%.50Hz.10AMP
• Transport Package：Plywood Case or as Your Request
• Specification：SGS,CE
• Trademark：Dapeng
• Origin：China Shenzhen
• HS Code：8414802000
• Production Capacity：300set,Month

Basic Info.

Model NO. 230 Engraving Method Vector Engraving Engraving Machine Type Laser Engraving Machine Drive Type AC Servo Drive Certification SGS, CE Laser Type Fiber Laser Control Automatic Current AC Condition New Usage Metal/Gold/Silver/Stainless Steel/Steel Power 10/30/20/50W Electrical Requirements AC220V10%.50Hz.10AMP Transport Package Plywood Case or as Your Request Specification SGS/CE Trademark Dapeng Origin China Shenzhen HS Code 8414802000 Production Capacity 300set/Month

Product Description

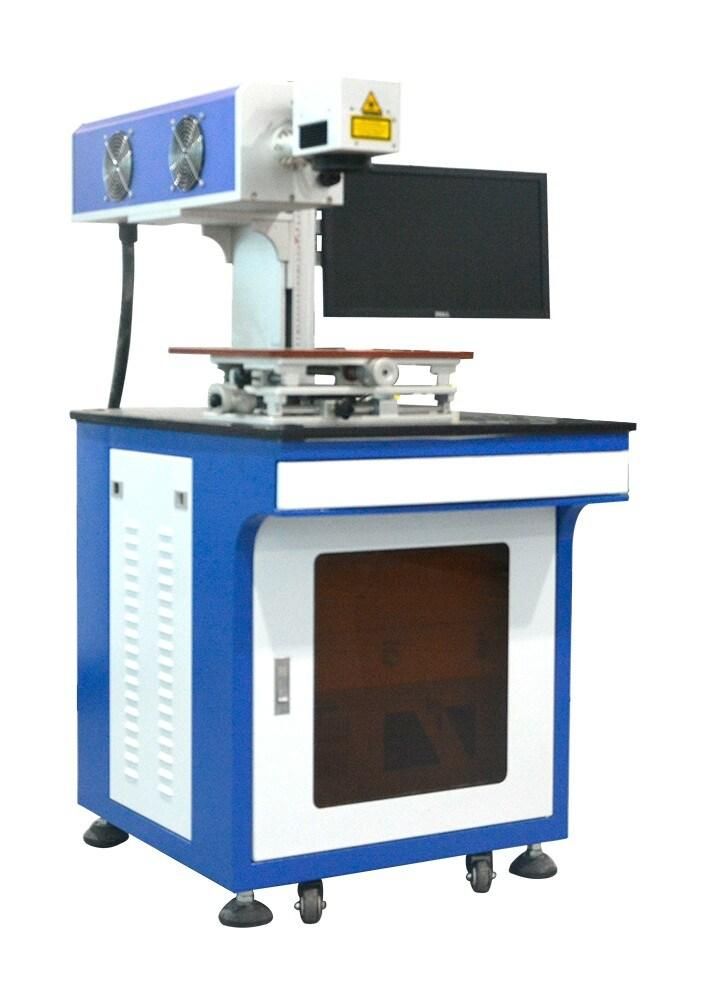

laser engraver Table Type Laser Machine Laser Marking Machine



Advantages:

Coast saving on power consumption/Unit Power only 0.6KW
No routine maintenance/ zero-maintenance
Life time over 100,000hrs
Air cooled/No chiller needed
Red aiming pointer/No more mistakes
Solid aluminum top work surface & Swing arm laptop stand
Portable tabletop units to automated production systems available

Specifications:


Model	DML-F10/20/30/50
Laser Power:	10W,20W,30W,50W
Wavelenth:	1064nm
Standard Marking Area:	100mm*100mm
Optional Marking Area:	150mm*150mm,200mm*200mm,300mm*300mm
Marking Speed:	≤7000mm/s
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.10Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.5kw
Operational Temp Range	10-40C
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	2 years on laser source
Dimensions:	820*690*1550MM
Net Weight	180KG

Software:

True Type Fonts	Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers	Customizable Auto Dating	Barcodes
QR Codes and Data Matrix	UID Wizard	Logos
Photo Quality Images - JPG, TIF, GIF	Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics	CAD Files

Features:

Easy to Use Automation Features	Sharp, High Contrast, Impact Free	High Speed Galvo Steering
Compact	100,000 Hrs Laser Lifetime	2 Year Warranty
Turnkey System	Permanant Marking	Air Cooled/Energy Efficient
Tunable Pulse Rate	Environmentally Friendly/No Consumable	Digital I/O for Easy Operation
Fast Set-Up	Red Laser Pointer

Applications:

We offer Fiber Laser Marking Machine with following applications:
Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
Hall marking on Gold
Automotive & Engineering Industries
Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other  instruments
Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.

MATERIALS:

Stainless Steel	Steel	Aluminum, Carbide
Nickel	Titanium	Cast Iron
Chrome	Painted Metal Alloys	Multi-Coated Metals
Plastics/Rubber	Backlit Buttons	Polycarbonate
PVC	Composites	Many more materials
