• Model NO.：1000
• Specification：1000W 2000W 3000W 4000W 6000W
• Trademark：Raycus Max IPG
• Origin：China
• HS Code：8456110090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. 1000 Specification 1000W 2000W 3000W 4000W 6000W Trademark Raycus Max IPG Origin China HS Code 8456110090 Production Capacity 100 Sets / Month

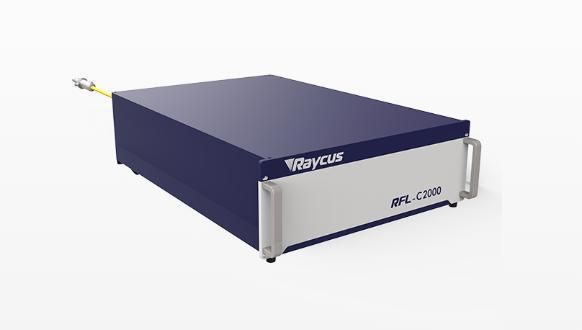

Product Description

It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.

 Technical characteristics

• High electro-optical conversion efficiency
• Output fiber length can be customized
• QBH/QD connector
• Maintenance-free operation
• Wide modulation frequency range
• Small size, easy to install

 Optical properties

• Average output power: (W): 2000
• Central wavelength: (nm): 1080±5
• Maximum modulation frequency: (kHz): 20
• Output power instability: ±1.5%
• Red laser: Yes

 Output characteristics

• Output connector: QBH (customizable)
• output fiber core diameter (μm): 50 (customizable)
• beam quality:<1.5
• polarization state: random
• output fiber length (m): 20(customizable)

 Electronic control characteristics

• Input power (V AC ): 380±10%, Three Phase-four Wire Connect
• Control mode: RS232, AD
• power adjustment range (%): 10-100

Other characteristics

• Dimensions (mm ): 414*686*158
• Weight (kg): <50
• Cooling method: water cooling
• Working temperature (ºC ): 10-40
