• Structure Type：Split Structure
• Laser Classification：Free Electron Laser
• Laser Technology：Laser Vapor Cutting
• Model：X700c
• Control System：DSP
• Laser Power：80W
• Driver Type：Micro Stepping Motor
• Working Platform：Blade Platform
• PC Interface：USB2.0 and U Disk
• Transport Package：1502mm*1007mm*1210mm
• Specification：1.83 Cu. m
• Trademark：REDSAIL
• Origin：China
• HS Code：8456110090
• Production Capacity：2000

Basic Info.

Structure Type Split Structure Laser Classification Free Electron Laser Laser Technology Laser Vapor Cutting Model X700c Control System DSP Laser Power 80W Driver Type Micro Stepping Motor Working Platform Blade Platform PC Interface USB2.0 and U Disk Transport Package 1502mm*1007mm*1210mm Specification 1.83 Cu. m Trademark REDSAIL Origin China HS Code 8456110090 Production Capacity 2000

Product Description

Redsail CO2 Laser Machine 80W 100W 130W CNC Laser Cutter for Acrylic MDF Wood Plastic Leather
Free upgrade 200mm electric table     A. Describe

• Control system: DSP
• Working size: 28"x21"(700mm x 500mm) with double side open door
• Up and down work plate: 7.8" (200mm)
• Laser tube type: Co2 Glass sealed laser tube
• Laser power: 80W
• Driver type: Micro Stepping Motor
• Max speed: 1000mm/s

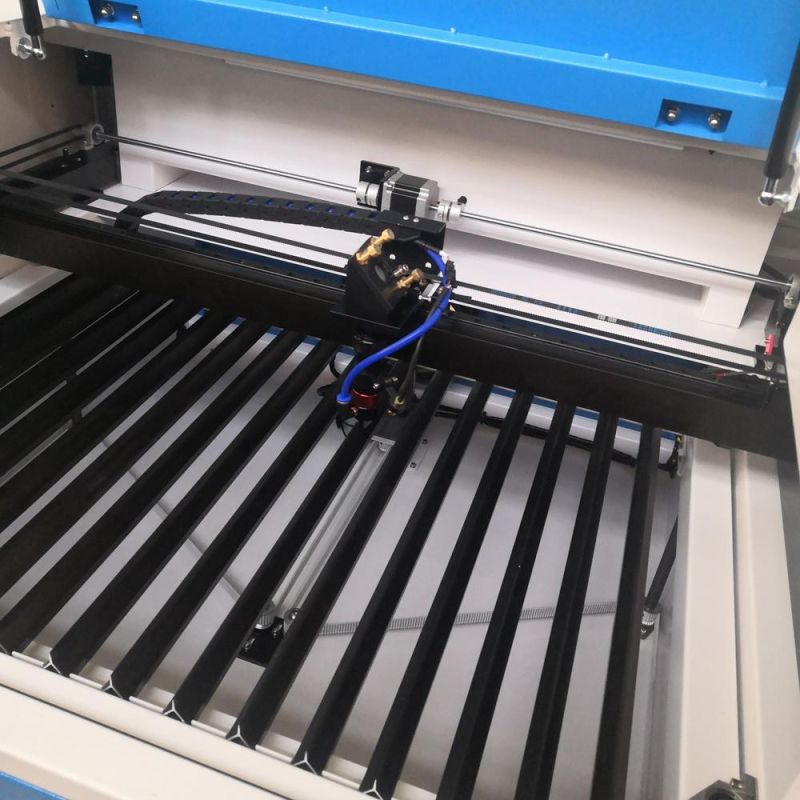

• Working platform: Blade platform
• Cooling system: Water pump
• Adjust table: Motorized up and down table
• Resolution: 1000 DPI
• Location precision: 0.01mm
• PC Interface: USB2.0 and U Disk
• Voltage: 110V~240V/50Hz~60Hz
• Controller: Auto laser
• Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
• Warranty: 12 Months (12 months for laser machine, 18 months for Laser tube, 3 months for mirrors and lens)
• Package Dimension(L/W/H): 1540* 1540*1220 (mm)
• Package: Standard Wooden case for export

      B. Feature

• Imported linear square guide way and transmission system,equipped with speed-down structure,three-phase motors and drivers,make the cutting smooth and  running more stable
• Equipped with  high-speed DSP control system, USB2.0 interface outputting directly, intelligent  software, support Autocam, Coreldraw Ect.
• High power CO2 laser tube, equipped with imported mirrors, lens, prolong the service life  .
• The speed and  laser energy can be adjusted anytime, very easy to operate
• Good water  protection system, ensures the services life of laser tube efficiency
• With CE and FDA certificate, more reliable
• High moving accuracy in high speed by step motor and transmitting system
• Nonmetal Laser Cutting Machine is designed for industry application, driven by high-grade stepper motor, precision guide way drive and High-precision in  positioning make the running more stable, Large area precision cutting mechanical movement system can guarantee smoothness and flatness of cut cross section.

      C. Standard Accessories

• Laser Engraving software Package (English Version)
• User Manual (CD)
• Water pump
• Air exhaust fan (Installed on machine)
• Air Pump
• Communication cable
• 3 Reflect optics (installed in the  machine)
• 1 Focus optics (installed in the machine)
• Other  tools

       D. Option Parts

• Red-dot Positioning Function(showing outline or laser dot position)
• Rotary(for engraving cylinder materials)
• CW-5000/CW-5200
• RUIDA controller

      E. Application field

• Laser Engraver is a kind of Laser Engraving Machine System equipped with Co2 laser Tube, It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc.,
• engrave Painted Metals and Anodized aluminum are also OK. It is most suitable and the preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc.

      F. Sample      G. After-sales service

• All of our product are direct from original manufacturer, so our price is more lower than others with same quality. We have a large number of inventory, if you want something in our store, we can send you within 24 hours.
• If you wre new user, don't worry, we can give you professional suggestions to further reduce your production cost in the long run.
• Please feel free to contact us if you need more information. our technical support will be there to assist you.
• If you like our products and services, please give us five points.
• If you have any questions, please do not hesitate to contact us. We'll try our best to solve the problem.

      H. FQA      Q: Do I need two laser machines to engrave and cut separately?      A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
      Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
      A: Yes, either is ok. It supports Windows 10, Windows 2000, Windows XP, Win 7, and other operating systems
      Q: What kind of graphic format does it support?
      A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
      Q: How to distinguish laser tubes with different powers and applications?
      A: 1. Laser tube length (relatively speaking, the longer, the bigger)
         2. Laser tube diameter (relatively speaking, the thicker, the bigger)
         3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a
         low- power laser tube to engrave, such as 40W, 50W or 60W.
     Q: Is it better to increase blow to improve laser processing performance?
     A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
     Q: How long will it take to learn to operate a laser machine?
     A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do                            some simple tests on different processing materials to know how to set the correct speed and laser power.
     Q: Is a laser machine in operation harmful to our bodies?
     A: It is not harmful as long as the laser is not exposed directly to skin and eyes.     I. About us Here are some key terms for warranty policies you should know before your bidding:                       Have a good day!

• Our warranty coverage for this item is one year from the date you received the product.
• We offer our warranty services worldwide.
• Provide service free for the machine all the life.
• You have to return the item within 30 days, if the machine has bad quality.
