• Model NO.：OH300
• Laser Classification：No Needed
• Type：Oxygen and Hydrogen Gas
• Gas Output：300L,H
• Welding Type：Oxyhydrogen Welding Machine
• AC Voltage Requirement：220V
• Max. Working Pressure (Kg/Cm2)：2
• Max. Flame Modifier Consumption (L/H)：0.75
• Rated Power：1.2kw
• Color：Green
• Water Feed：Manual
• Dimension：750*250*510mm
• Feature：Oxy-Hydrogen Platinum Resistor Welding Machine
• Transport Package：Standard Export Package; 1set,Carton
• Specification：gas capacity300L,h
• Trademark：Okay Energy
• Origin：Changsha, China
• HS Code：8405100000
• Production Capacity：200sets,Month

Basic Info.

Model NO. OH300 Laser Classification No Needed Type Oxygen and Hydrogen Gas Gas Output 300L/H Welding Type Oxyhydrogen Welding Machine AC Voltage Requirement 220V Max. Working Pressure (Kg/Cm2) 2 Max. Flame Modifier Consumption (L/H) 0.75 Rated Power 1.2kw Color Green Water Feed Manual Dimension 750*250*510mm Feature Oxy-Hydrogen Platinum Resistor Welding Machine Transport Package Standard Export Package; 1set/Carton Specification gas capacity300L/h Trademark Okay Energy Origin Changsha, China HS Code 8405100000 Production Capacity 200sets/Month

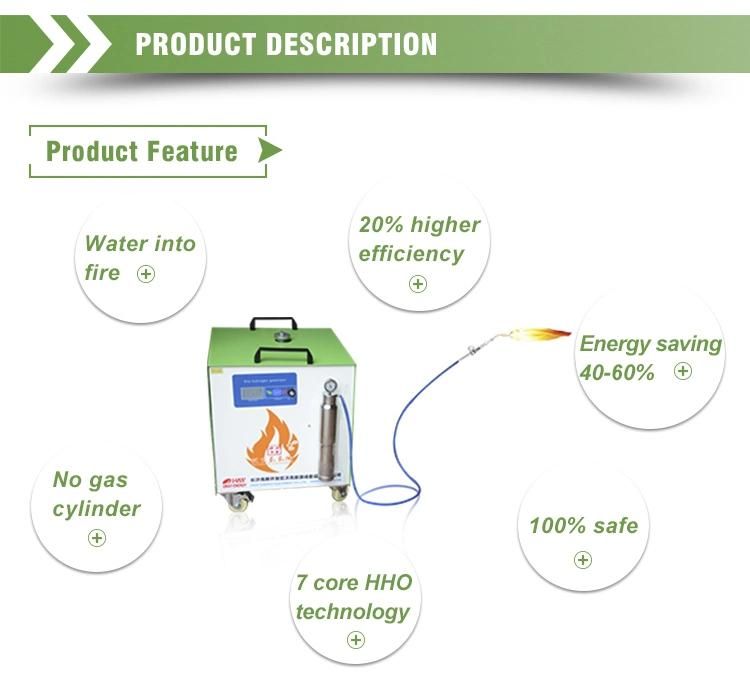

Product Description

Oxyhydrogen Platinum Resistor Welding Machine






The data sheet

Model Number	OH100	OH200	OH300	OH400	OH600
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single
Rated Power(KW/h)	0.4	0.8	1	1.4	2
Max Gas Output	100L/h	200L/h	300L/h	400L/h	600L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2
Max. Water Consumption (L/h)	0.06	0.1	0.16	0.21	0.33
Water Feed	manual	manual	manual	manual	manual
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.15
Flame Modifier Feed	manual	manual	manual	manual	manual
Dimensions - L*W*H (mm)	390*250*510	450*250*510	590*250*510	710*250*510	930*250*510
Gross Weight (kg)	15	20	25	35	45
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction

Video demonstrations
1)Videos for welding demo: jewelry welding,electric motor welding and brazing,copper welding  http://okayenergy.en.made-in-china.com
2)How to install our OH machines?
click or copy the link for video play: http://okayenergy.en.made-in-china.com
Shipment and Package
About shipping We have long-term cooperated shipping counrier providing one-stop safety and quick shipping service.
Flexible Shipping method by international express(DHL,Fedex,UPS etc),by air,by sea as your requirement.Or using your shipping forwarder.
About Package Standard export package,1set/carton;For industrail larger machine,1set/woodern pallet;

Okay Service
1.24hour online chat,email or phone support for inquiry,technical and after-sales service;
2.Warranty:1year.(The core part of machine for 1year.The other parts of machine for half of year in addition to human damage;
3.online trade assurance service(Protection buyer's payment regarding on-time delivery and product quality.)
