• Laser Wavelength：355nm
• Laser Classification：UV Laser
• Type：UV Laser Marking Machine
• Marking Method：Scanning Marking
• Transport Package：Plywood Case
• Specification：880*650*1450mm 150Kg
• Trademark：Dapeng laser
• Origin：China Shenzhen
• HS Code：8456110090
• Production Capacity：350units,Month

Basic Info.

Laser Wavelength 355nm Laser Classification UV Laser Type UV Laser Marking Machine Marking Method Scanning Marking Transport Package Plywood Case Specification 880*650*1450mm 150Kg Trademark Dapeng laser Origin China Shenzhen HS Code 8456110090 Production Capacity 350units/Month

Product Description

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 30 units/month in China.

We are looking for distributor. Price is more competitive.
Videos: dplaser.en.made-in-china.com    dplaser.en.made-in-china.com

Introduction:
Ultraviolet (UV) laser is a kind of cold light, mainly used in super precise marking and engraving, particularly suitable for food, pharmaceutical packaging material marking, micro punching, glass high-speed dividing, silicon wafer complex graphics cutting, etc.
Without heat effect, the effect of laser marking and cutting is precise, smooth and steep. Except copper, 355nm UV laser could be absorbed by many materials, so it is suitable for manufacture more material type.

Features:
1. High quality light beam, small focal point, ultra- fine marking.
2. High speed and high efficiency.
3. Widely used, because most materials could absorb UV laser.
4. Low energy consumption, environmentally friendly, no consumables.
5. Little affect area, no heat effect, without material burned problem.

Applications:
1.Mark on coated silicon solar panel, Remove the surface film on object:
2.Mark on mobile protection film, LCD screen , optic device, automobile glass etc:
3.Also suitable for most of metal and non-metal material marking or coated surface marking, ie, hardware, ceramic, glasses, clock ,PC, electronic device, PCB and control panel, nameplate and plastic material etc.


Specifications:


Model	UV-3/5
Laser Power:	3W,5W
Wavelenth:	355nm
Standard Marking Area:	100mm*100mm
Marking Speed:	≤7000mm/s
Minimum Line Width	0.012mm
Min. Character size	0.15mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.003mm
Electrical Requirements:	Ac220V±10%.50HZ.10Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<1kw
Operational Temp Range	10-40ºC
Operational Humidity Range	5%-75%, Non-condensing
Dimensions:	820*690*1550MM
Net Weight	180KG

Software: EZCAD

True Type Fonts	Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers	Customizable Auto Dating	Barcodes
QR Codes and Data Matrix	UID Wizard	Logos
Photo Quality Images - JPG, TIF, GIF	Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics	CAD Files

Showroom

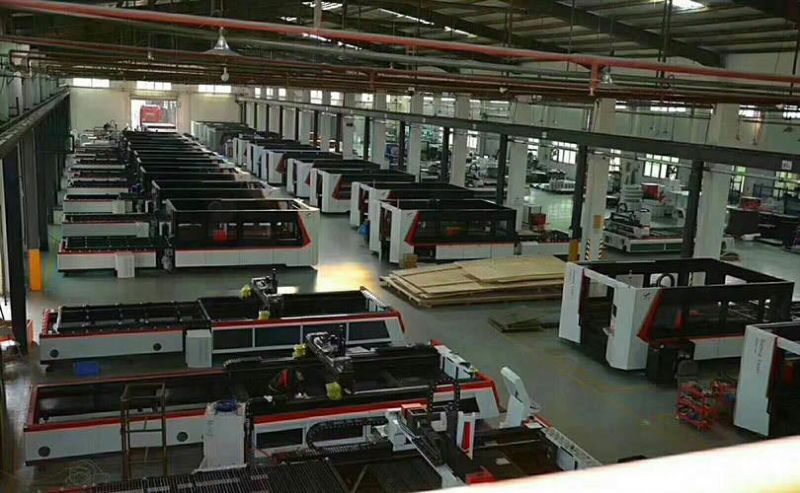

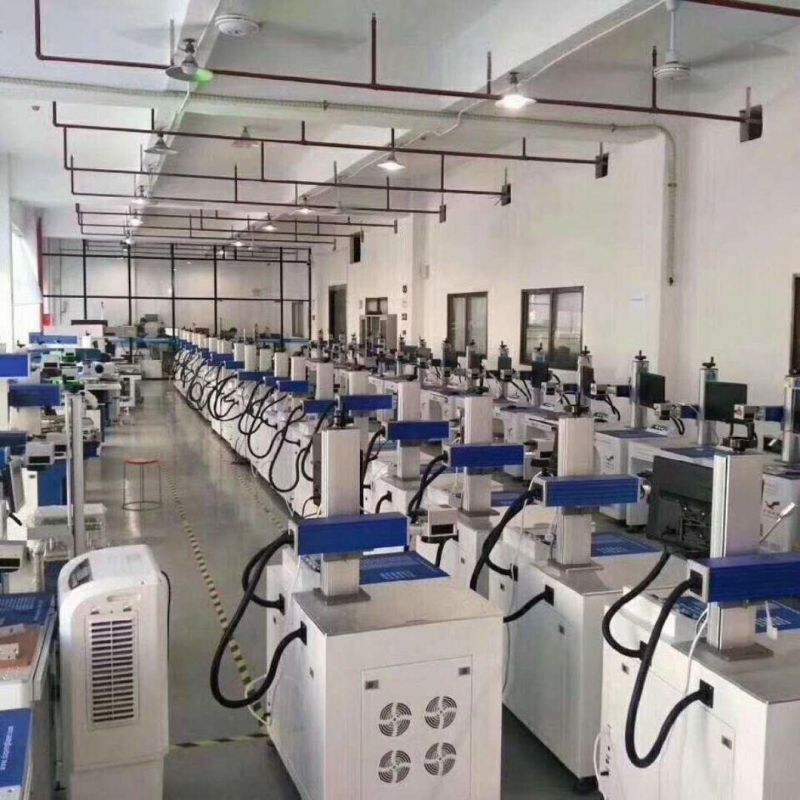

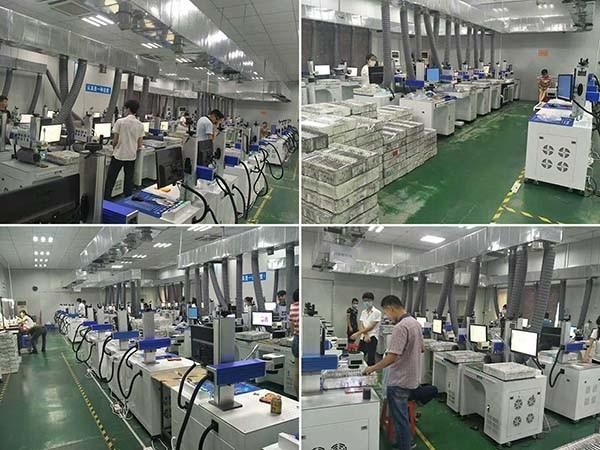

Machines applied in our customer factory:

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 30 units/month in China.

We are looking for distributor. Price is more competitive.
