• Model NO.：201
• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• Engraving Machine Type：Laser Engraving Machine
• Drive Type：AC Servo Drive
• Certification：SGS, Ce
• Laser Type：Fiber Laser
• Control：Automatic
• Current：AC
• Condition：New
• Usage：Metal,Gold,Silver,Stainless Steel,Steel
• Power：10W,20W,30W,50watt
• Location Precision：0.01mm
• Transport Package：Plywood Case or as Your Request
• Specification：SGS,CE
• Trademark：Dapeng Laser
• Origin：China Shenzhen City
• HS Code：8414802000
• Production Capacity：50 Set,Day

Basic Info.

Model NO. 201 Laser Classification Semiconductor Laser Engraving Method Vector Engraving Engraving Machine Type Laser Engraving Machine Drive Type AC Servo Drive Certification SGS, Ce Laser Type Fiber Laser Control Automatic Current AC Condition New Usage Metal/Gold/Silver/Stainless Steel/Steel Power 10W/20W/30W/50watt Location Precision 0.01mm Transport Package Plywood Case or as Your Request Specification SGS/CE Trademark Dapeng Laser Origin China Shenzhen City HS Code 8414802000 Production Capacity 50 Set/Day

Product Description

 Approved SGS 20W Fiber Laser Marking Machine for Jewelry


Features:

Easy to Use Automation Features	Sharp, High Contrast, Impact Free	High Speed Galvo Steering
Compact & Fast Set-Up	100,000 Hrs Laser Lifetime	2 Year Warranty
Turnkey System	Permanant Marking	Air Cooled/No Chiller needed
Tunable Pulse Rate	No routine maintenance/No Consumable	Digital I/O for Easy Operation
Red Aiming Pointer/No more mistakes	Solid Aluminum Top Work Surface & Swing Arm Laptop Stand	Portable Tabletop Units to Automated Production Systems Available

Specifications:


Model	DPL-F10/20/30/50
Laser Power:	10W,20W,30W,50W
Wavelenth:	1064nm
Standard Marking Area:	100mm*100mm
Optional Marking Area:	160mm*160mm,200mm*200mm,300mm*300mm
Marking Speed:	≤7000mm/s
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.5Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.5kw
Operational Temp Range	10-40C
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	2 years on laser source
Dimensions:	820*690*1550MM or 920*690*1550MM
Net Weight	180KG

Dapeng Laser's marking machine is manufactured from a modular aluminum structural framing system. The high-strength aluminum profiles provide the stability of an optical instrument with the rigidity and durability of a machine tool.

The DPL series Fiber Laser Marking Machine adopts superior quality fiber laser and high precison digital scan head to enable stable output and high quality laser mode. Fiber laser marking machine can meet the demand of mass production with fast marking speed,good marking effect and high efficiency.



Software:

True Type Fonts	Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers	Customizable Auto Dating	Barcodes
QR Codes and Data Matrix	UID Wizard	Logos
Photo Quality Images - JPG, TIF, GIF	Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics	CAD Files

Applications:

We offer Fiber Laser Marking Machine with following applications:
l Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
l Hall marking on Gold
l Automotive & Engineering Industries
l Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other  instruments
l Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.

Materials:

Stainless Steel	Steel	Aluminum, Carbide
Nickel	Titanium	Cast Iron
Chrome	Painted Metal Alloys	Multi-Coated Metals
Plastics/Rubber	Backlit Buttons	Polycarbonate
PVC	Composites	Many more materials

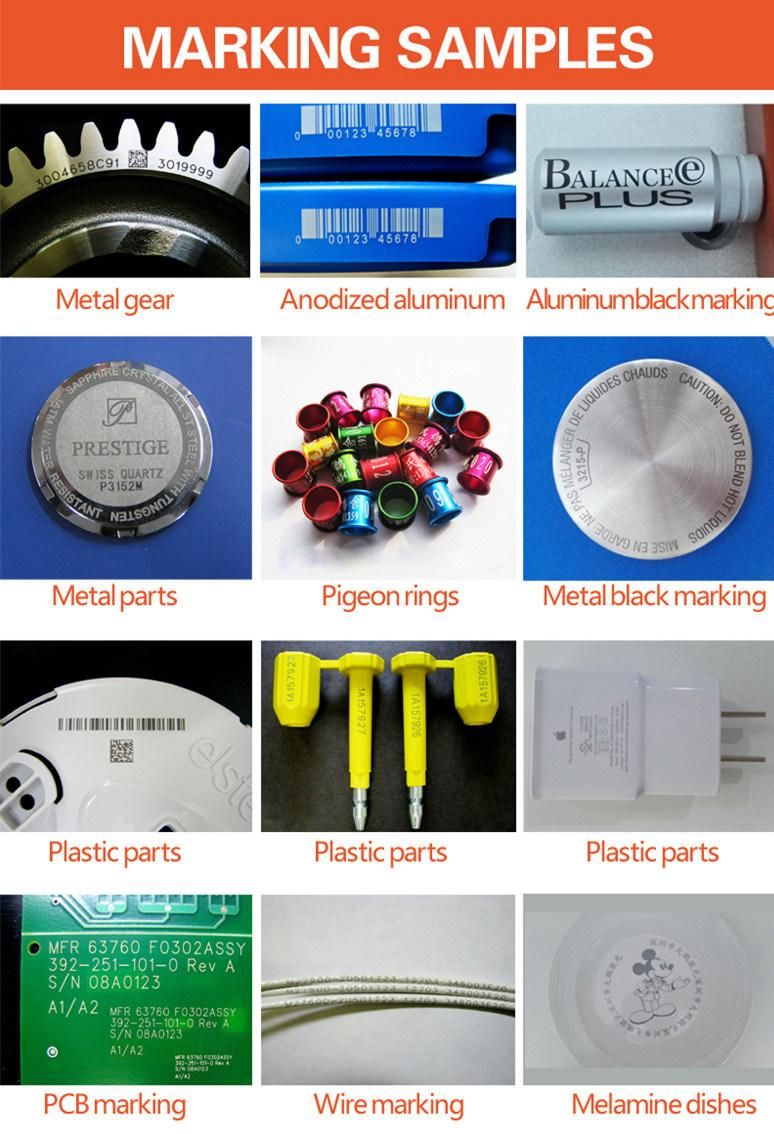

sample marking


Company
 Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and

servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides

equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military,

semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets.

With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard

and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker

systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last

10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil,

Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will

have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost

effectiveness, and technical support.

China. Last year 2016 we sold more than 5000sets of laser systems, about 80% are sold in domestic market, and others

we sold to America, Spain, Poland, India, Egypt and many other countries.
