• Model NO.：PE-F3015B
• Laser Technology：Laser Flame Cutting
• Maximum Run Speed：90m,Min
• Laser Wavelength：1080 Nm
• Minimum Cutting Line Width：0.1mm
• Control：CNC
• Rated Output Power：50-2000W
• X, Y-Axis Positioning Accuracy：≤±0.01mm
• Repeated Positioning Accuracy of The Tab：≤±0.01mm
• The Maximum Load of The Workbench：800kg
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO 9001 & CE
• Trademark：perfect laser
• Origin：China
• HS Code：84561000
• Production Capacity：300 Units, Month

Basic Info.

Model NO. PE-F3015B Laser Technology Laser Flame Cutting Maximum Run Speed 90m/Min Laser Wavelength 1080 Nm Minimum Cutting Line Width 0.1mm Control CNC Rated Output Power 50-2000W X, Y-Axis Positioning Accuracy ≤±0.01mm Repeated Positioning Accuracy of The Tab ≤±0.01mm The Maximum Load of The Workbench 800kg Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification ISO 9001 & CE Trademark perfect laser Origin China HS Code 84561000 Production Capacity 300 Units/ Month

Product Description

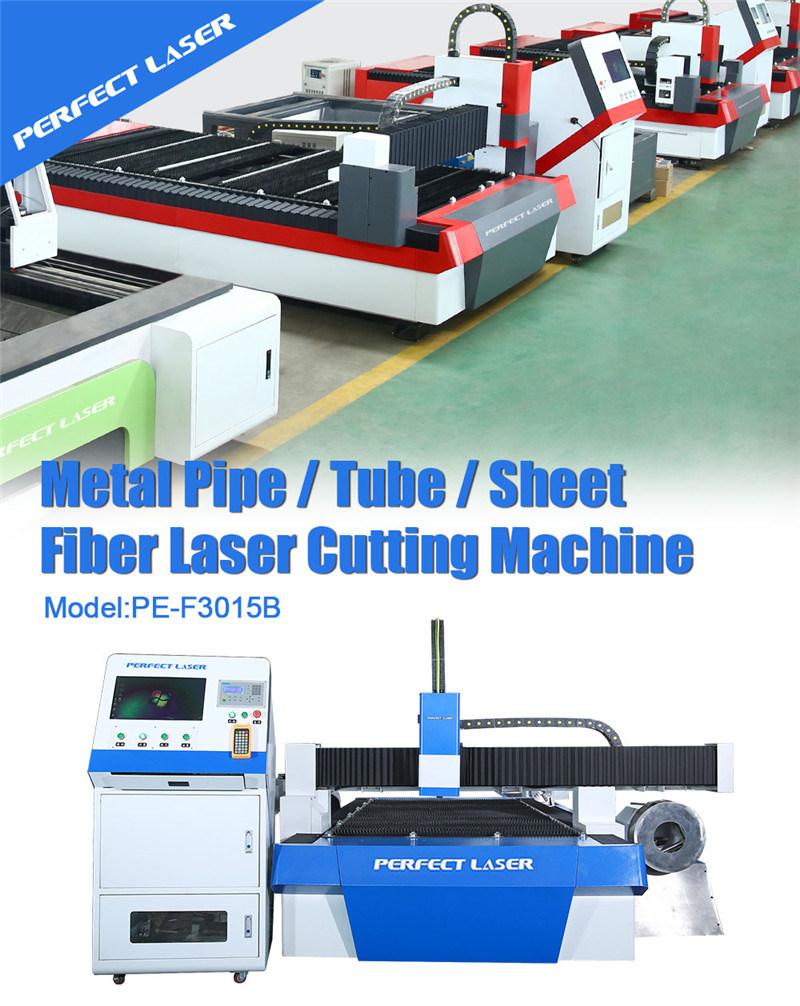

1000W Sheet Fiber CNC Laser Metal Cutting Machine for Tube and Pipe
(Model: PE-F3015B)

----Description of CNC Laser Metal Cutting Machine:
Perfect Laser, professional fiber laser cutting machine manufacturers, with advanced cutting machine equipment, first-class technology, quality service, get good reputation in fiber lasercutting machine equipment industry.
In order to meet the needs of customers for cutting metal pipe and sheet, Perfect Laser launched the muti-functional Metal Pipe and Sheet Fiber Laser Cutting Machine(Model:PE-F3015B). This cutting machine is adopted the Taiwan famous screw guide, Panasonic servo and drive, the cutting machine can improve the working efficiency greatly. And the pipe diameter of cutting machine can up to 200mm (can be customized according to customer needs ). Moreover, the cutting machine unique design with rotary auxiliaries can solve the technical problems for cutting pipe and sheet.

----Feature of CNC Laser Metal Cutting Machine:
Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.

----Application of CNC Laser Metal Cutting Machine:

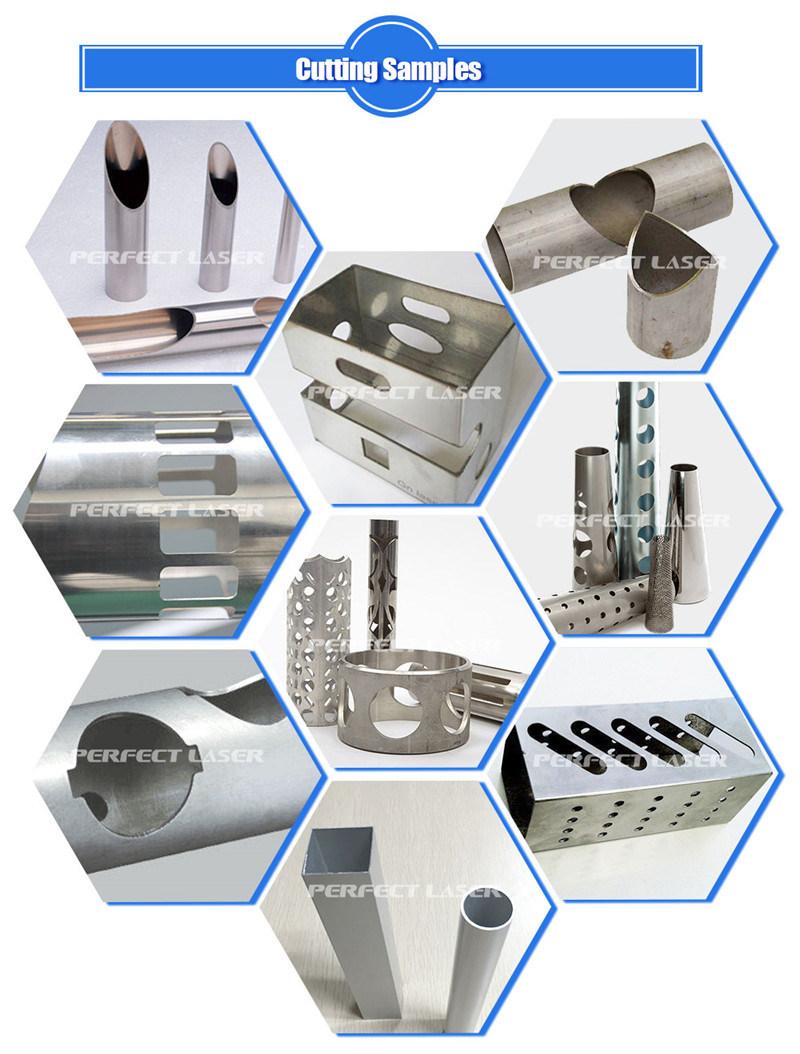

This metal laser cutter can effectively cut pipe, square tube, rectangular tube, oval tube, parallel oval tube, D-tube and other styles of pipe.
The metal laser cutter main processing materials: stainless steel, carbon steel, manganese steel, galvanized sheet, all kinds of alloy plate, rare metals.
The metal laser cutter main application industry: sheet metal industry, kitchenware industry, elevator mobile phone industry, advertising industry, chassis cabinet industry, machinery parts processing industry, precision machining industry, automobile manufacturing industry, dailylight industry, agricultural machinery and food machinery industry, hardware bathroom industry, Medical fitness equipment industry.

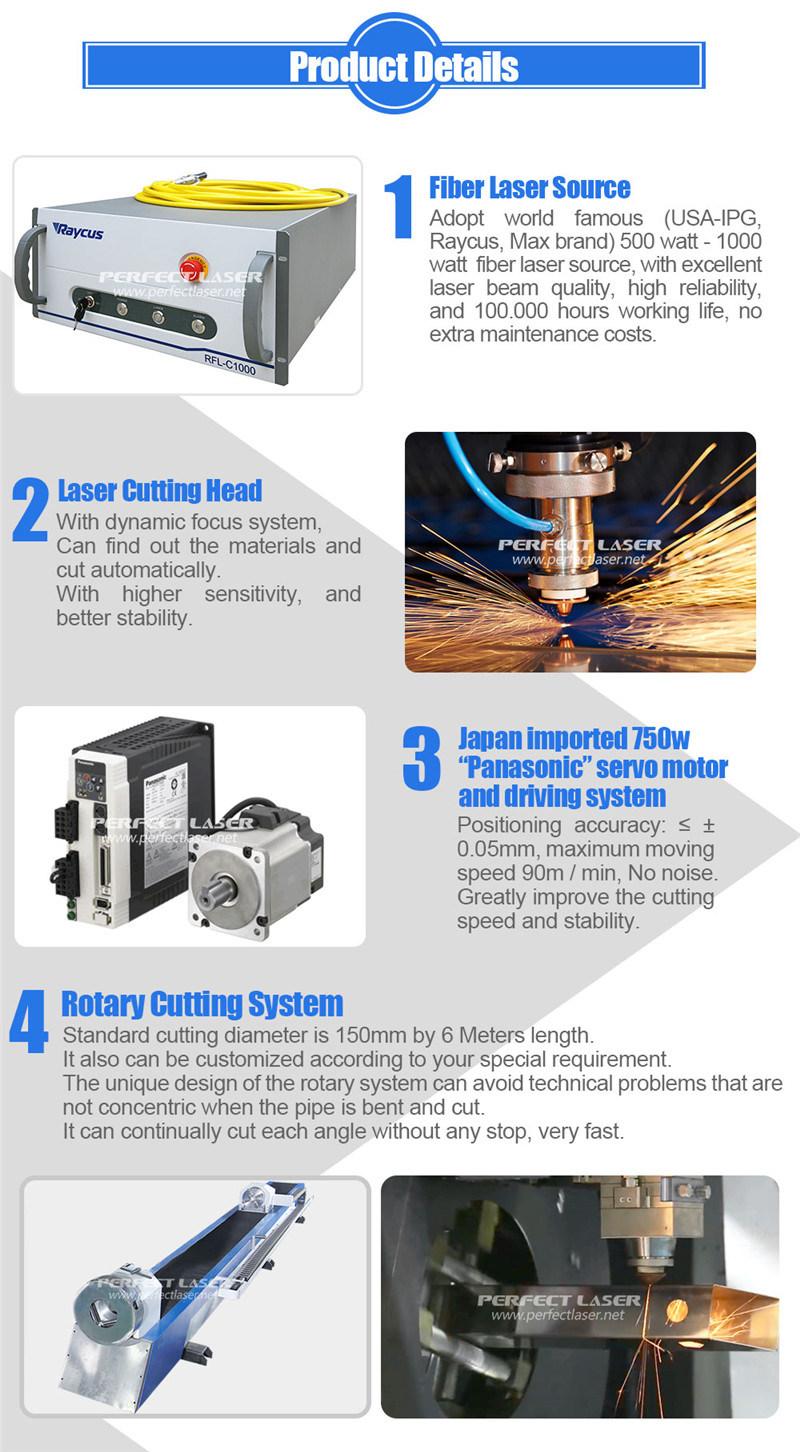

---Product Details of CNC Laser Metal Cutting Machine:


---Technical Data of CNC Laser Metal Cutting Machine:

Name	Metal sheet and pipe fiber laser cutting machine
Model	PE-F3015B 500W (800W1000W2000W)
Maximum run speed	90m/min
Laser Wavelength	1080 nm
Minimum cutting line width	0.1mm
Rated output power	50--2000W
X, Y-axis positioning accuracy	≤±0.01mm
Repeated positioning accuracy of the table	≤±0.01mm
The maximum load of the workbench	800KG
Effective processing format	1500*3000mm
Z-axis travel	120mm
Volume	4.6*2.3*1.8m
Power	12KW
Water cooler	2kw
Electricity power	380v 50Hz±10%
Red light spot position	yes
Auxiliary gas	Oxygen, nitrogen
Pipe type	Round,oval,special-shaped pipe
Pipe Length	3-9m
Diameter	1mm-300mm

---Our Company (Perfect Laser Co., Ltd)
Perfect Laser's Mission: To offer outstanding technical platform & valuable products to our users.
The core running principle of Perfect Laser:
1> Chases for the persistently success in long-term basis.
2> Advocates & Builds multi- culture environment.
3>Occupies the leading position when enters into each field with good plan & fine operation.
Our Mission is to Improve Our Customers' Competitive Position in the Marketplace.

---Service
1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us and all of our machine with a 12 months quality guarantee period.
2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.

4> Our engineer can make a door-to-door instruction training service.
