Low Price Gold and Silver Ring CNC Laser Engraving Machine for Metal Guns Jewelry
JINAN XINTIAN TECHNOLOGY CO., LTD.- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Type：Optical Fiber Laser Marking Machine
Base Info
- Model NO.：XTL-FP
- Marking Method：Scanning Marking
- Transport Package：Plywood
- Specification：99x62x106cmx154kg
- Origin：China
- HS Code：8456110090
Description
Overview
Technical date
50khz-100khz(50w)Galvometer ParametersMaximum Linear Speed7000mm/sResolution12μradRepeatability8μradOptiocal output characteristicsMarking Range110x110mmMinimum Line Width0.01mmMinimum Character height0.2mmCooling SystemCooling MethodAir CoolingSysten PropertyLaser power0.5kw/AC220V(110V optional)LTower height50cm/80cmEnvironment Requirement0-35ºC
Technical IndicatorsNameLaser Parameterslaser sourceRaycus/JPT/IPG(optional)Laser Wavelength1064nmAverage Output Power30wModulation Frequency Range30kHz-60Khz(20w/30w);
50khz-100khz(50w)Galvometer ParametersMaximum Linear Speed7000mm/sResolution12μradRepeatability8μradOptiocal output characteristicsMarking Range110x110mmMinimum Line Width0.01mmMinimum Character height0.2mmCooling SystemCooling MethodAir CoolingSysten PropertyLaser power0.5kw/AC220V(110V optional)LTower height50cm/80cmEnvironment Requirement0-35ºC
Working videos brass markinghttps://youtu.be/bieldrdDPP0Jewelry ring markinghttps://youtu.be/ZSgs1BphpUkJewelry ring cuttinghttps://youtu.be/V2WM4DrAG_Ystainless steel markinghttps://youtu.be/oX7pJrggGgsCarbon steel markinghttps://youtu.be/1L_mpHLIOg4Samples

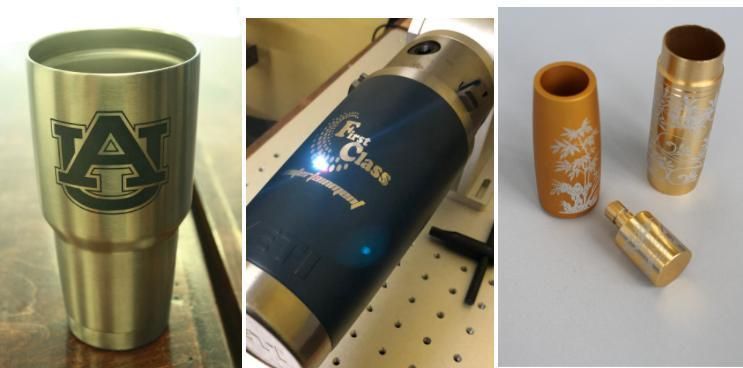

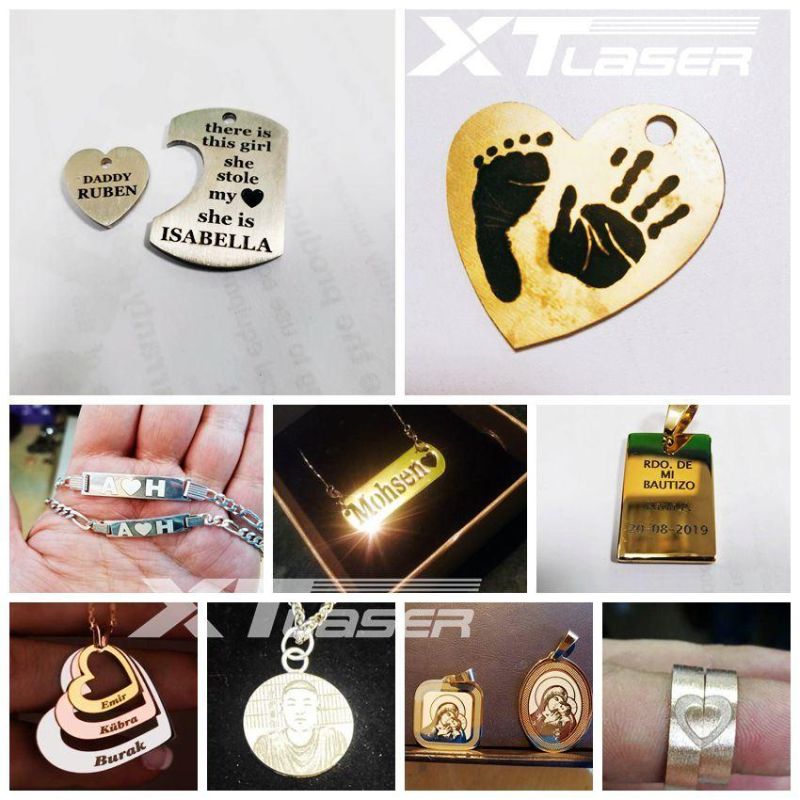

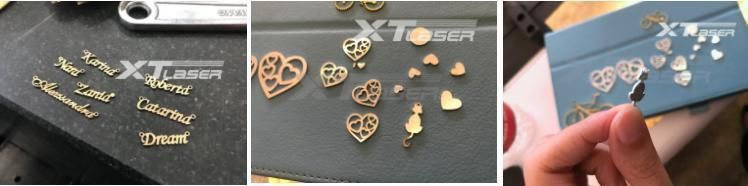

Fiber laser marker can mark on almost any metal.
It can also cut some thin jewelry plate.
30w cut up to 0.5mm gold/silver/brass.
50w cut up to 1-1.2mm gold/silver/brass.
If thicker than this thickness,it is also ok,but it takes much longer time to do it.

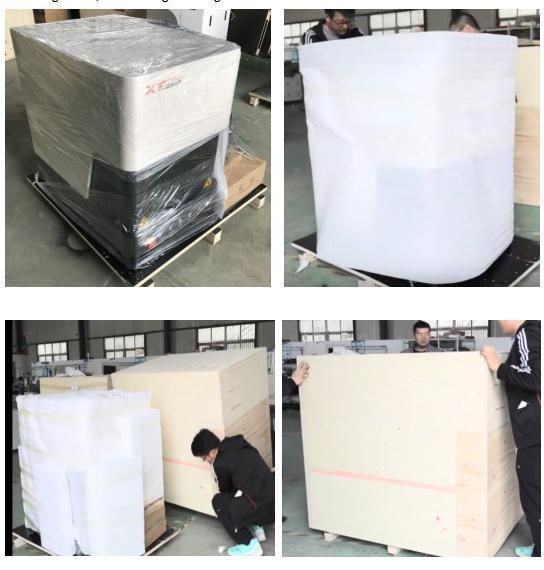

Ply-wood case:99*62*106cm,120kg/154kg
