1000W Fibre Laser Cutting Machine Metal Cutting Machine GS-3015
Dongguan Glory Star Laser Technology Co., Ltd.- Application：Agriculture Machinery, Automotive Industry, Advertising Industry, Metal Processing
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Fiber Laser
Base Info
- Model NO.：GS-3015
- Laser Technology：Laser Control Fault Cutting
- Model No.：GS-3015
- Control Mode：CNC
- Cutting Mode：Fiber Laser
- Cutting Nozzle Shape：Ring Type
- Cutting Speed：0-6000mm,Min
- Voltage：AC380V
- Gas：Oxygen, Nitrogen
- Laser Power：500W,1000W,2000W Ipg Laser Generator(Optional)
- Transport Package：Packed in Piaywood
- Specification：CE, SGS, FDA, Bureau, ISO
- Trademark：GLORYSTAR
- Origin：China
- HS Code：84561090
- Production Capacity：5000PCS,Years
Description
4mm Metal Parts by 1kw
Carbon Steel 12mm 10mm 8mm 4mm 6mm

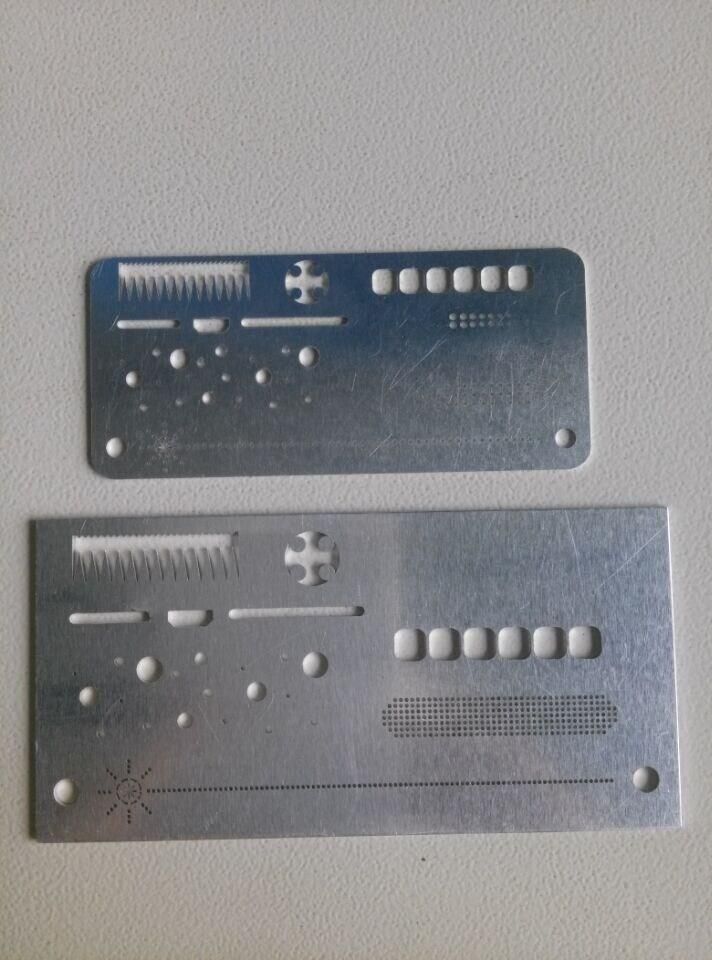

1kw laser drilling and hollowing 2mm stainless steel
Fiber laser generator is a developed technology, which expert laser beam of high density energy and focus on the surface of work piece, to make instant melting and vaporing of the area lighted by the superfine focus spot, then the automatic laser cutting can be realized when moving the light spot position by CNC mechanical system.
1.Machine structure:600ºC heat treatment, 24 hours cooling in the oven, 8 meters gantry milling,to make sure 20 years usage without deformation.
2.Speed:Adopting imported high-speed transmission system, the fiber laser machine reaching 20m/min cutting speed and 0.5G accelerated speed in China.
3.Configurations:
(1).300W fiber laser generator
(2).AC servo Motor from Japan Panasonic.
(3).High precise pinion and rack,double-drive transmitting system and linear guide rail from HIWIN.
(4).Laser head from Germany Precitec.
(5).Lens from USA II-IV
(6).Professional operation system.
4.Consumable parts:
(1).Protection Lens.
(2).Nozzle.
About Us
We are in top 3 laser manufacture in China,our main products are fiber laser cutting machine ,Co2 laser cutting machine ,laser marking machine ,laser welding machine and CNC bending machine.We are specially for laser technology for more than 15 years,we have our research and development department. now we have more than 300 employees.
