• Model NO.：LS50F
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：50W
• Laser Type：Fiber
• Laser Source：Jpt
• Marking Area：110*110mm
• Transport Package：International Standard Plywood Box
• Specification：940*860*1020mm
• Trademark：Lansen Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. LS50F Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 50W Laser Type Fiber Laser Source Jpt Marking Area 110*110mm Transport Package International Standard Plywood Box Specification 940*860*1020mm Trademark Lansen Laser Origin China HS Code 8456110090 Production Capacity 300sets/Month

Product Description

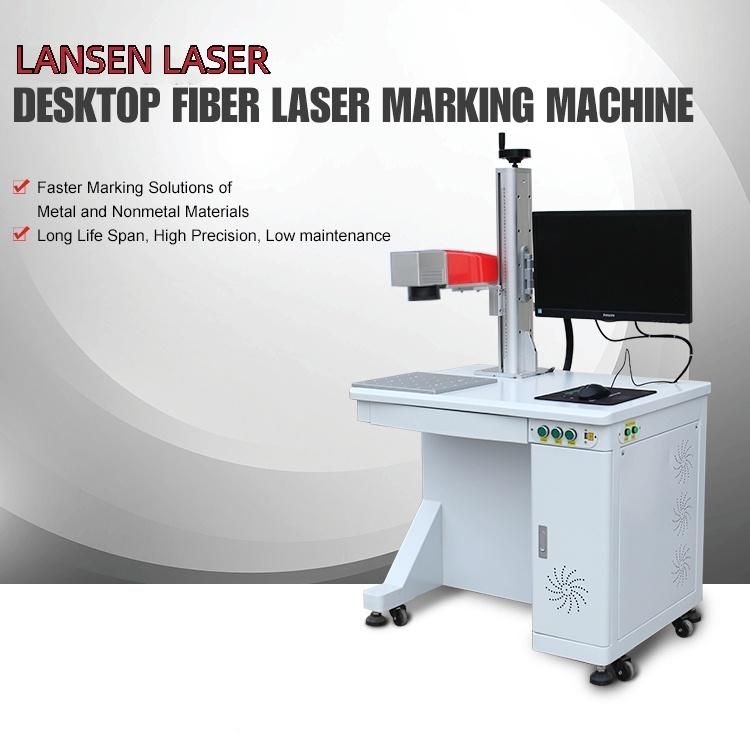

Desktop Fiber Laser Marking Machines Price JPT 50W
Product Description
 1). Wide range: Can be used on many materials like metal, plastic, leather, alloy etc. Can be used in many industries like Jewelry engraving, medical devices, phone case engraving, hardware industry, stainless steel tableware, electron components marking etc.
2). Permanent marking: Laser marking is a permanent marking. It won't fade, run or become less discernible as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.
3). Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
4). Easy to operate: Support almost any windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.
5). High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.
6). Non-contact process: Won't cause mechanical extrusion or mechanical stress to materials. Laser beam won't move the work piece.
7). Easy operate: Win 10 computer and displayer include, all software and driver installed, just open the computer to mark.



 Parameters:

Laser Source	Fiber Laser
Output Power	20W/30W/50W/100W
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110x 110mm/ 200x 200mm(optional)/300*300mm(optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220V / Single-Phase Circuit / 50/60Hz /4A

Advantages
1).Wide range: Can be used on many materials like metal, plastic, leather, alloy etc.
2).Permanent marking:  It won't fade, run or become less discernable as time passes.
3).Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
4).Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop.
5).High precision: 0.003mm re-position accuracy.  Minimum line width 0.01mm.
6).Non-contact process: Won't cause mechanical extrusion or mechanical stress to materials.

1.Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
2.Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES, steel, titanium, copper and other materials.

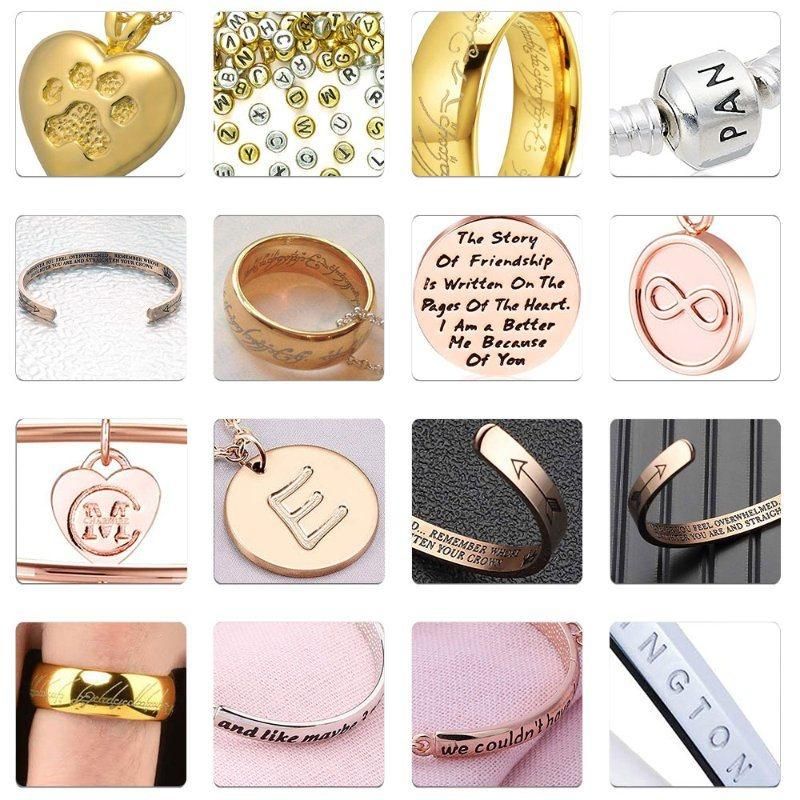

Samples:

Packaging&Shipping:


Our Survice:
1. 24 Months for Machine
2. 6 Months for equipment outside, such as water pump, fan, air pump,etc.
3. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material. Lifely and fast technical guide and solution within 24hours by email and web camera.

About us:

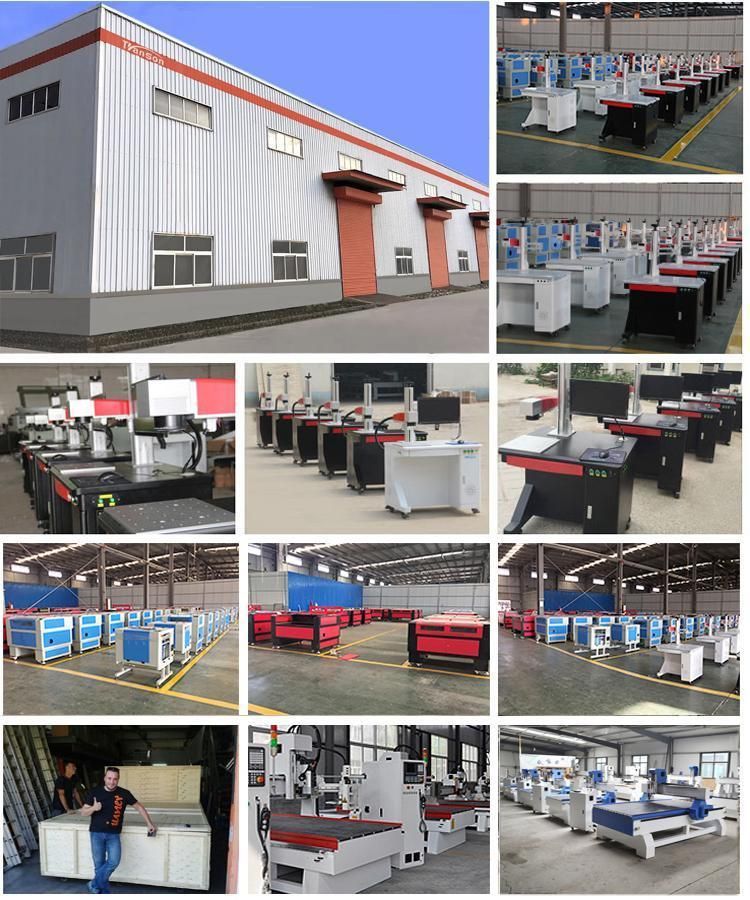

Compnay profile:


FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
