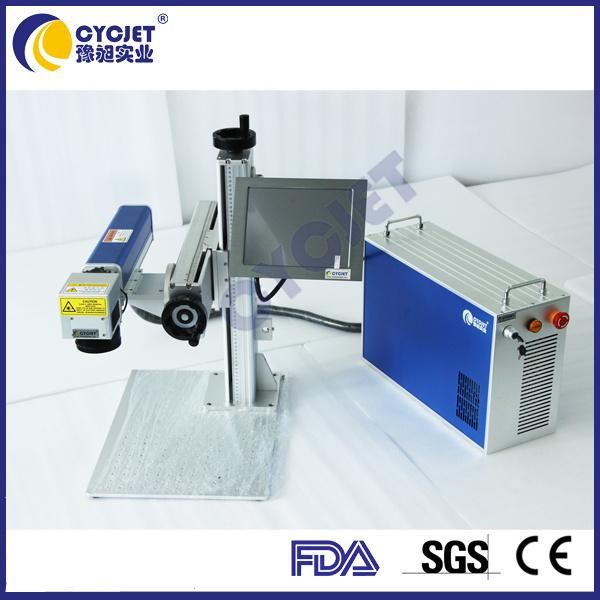

Cycjet Laser Tag Laser Marking Machine

Shanghai Yuchang Industrial Co., Ltd.
  • Laser Visibility：Visible
  • Applicable Material：Nonmetal
  • Cooling System：Air Cooling
  • Technical Class：Continuous Wave Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Solid Laser

Base Info

  • Model NO.：LF20F
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Name：Cycjet Laser Tag Laser Marking Machine
  • Application：Tags, Steel Sheet , Alum-Alloy Sheet
  • Capacity：20W
  • Information Input：Touch Screen and USB
  • Pulse Frequency：20 kHz - 100 kHz
  • Marking Range：110 mm X 110 mm (Can Be Customized)
  • Transport Package：Wooden Case with Foam
  • Specification：155X55X56cm
  • Trademark：CYCJET
  • Origin：Shanghai
  • HS Code：8456110090
  • Production Capacity：300units,Month

Description

Basic Info.

Model NO. LF20F Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Name Cycjet Laser Tag Laser Marking Machine Application Tags, Steel Sheet , Alum-Alloy Sheet Capacity 20W Information Input Touch Screen and USB Pulse Frequency 20 kHz - 100 kHz Marking Range 110 mm X 110 mm (Can Be Customized) Transport Package Wooden Case with Foam Specification 155X55X56cm Trademark CYCJET Origin Shanghai HS Code 8456110090 Production Capacity 300units/Month

Product Description

Cycjet Laser Tag Laser Marking Machine
Cycjet Laser Tag Laser Marking Machine

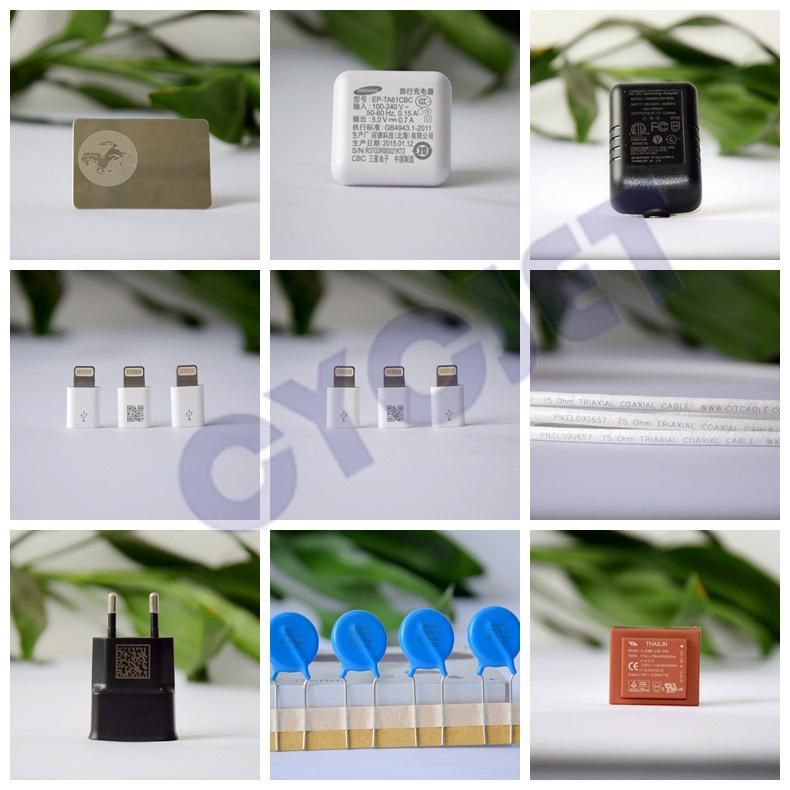

Application Scope:

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.


Terms Of Payment:
T/T, LC

After-sale Service
1, Warranty Valid: 18 Month
2, Online or Spot Training

Details and Specifications:

Specifications		Laser Device: Fiber
Output Power: 20W
Beam quality M2: <2
Laser wavelength: 1064 nm
Air cooling
Pulse frequency: 20 KHZ - 100 KHZ
Marking range:
110 mm x 110 mm (can be customized)
MarkingSpeed:7000mm/s
Marking Depth: ≤0.3mm
Marking Line Width: 0.01-0.2mm (based on difference material)
Min character Size: 0.015mm.
Repeat accuracy: + / - 0.003 mm
Marking area locating: Red-light locating system.
Power supply:
AC 100-260 v 50/60 hz
Power: ≤800W
Delivery&PackageDelivery Time: 3-7 days after received Advance Payment
By Vessel or Air Plane
Standard Package: Wood Carton, Carton Box
