• Model NO.：LSM20F
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W
• Laser Type：Fiber
• Transport Package：International Standard Plywood Box
• Specification：880*690*550mm
• Trademark：Lansen Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. LSM20F Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W Laser Type Fiber Transport Package International Standard Plywood Box Specification 880*690*550mm Trademark Lansen Laser Origin China HS Code 8456110090 Production Capacity 300sets/Month

Product Description

Handheld Fiber Laser marker Printer Metal Jewelry Marking 20W 30W

Lansen Laser is the world famous fiber laser marking machine manufacturers and suppliers, recently launched a new laser marking machine: Handheld Fiber Laser Marking Machine .

This type of laser marking machine can remove the original fixed bracket and make handheld marking, the laser marking machine mini structure and handheld design can meet a variety of production needs, the laser marking machine is compact and mini size, small footprint, marking speed is twice as the same type of laser. Adopting high quality fiber laser, the core components of the life length up to 20,000-100,000 hours or more, no need of consuming materials


 Parameters:

Laser Source	Fiber Laser
Output Power	20W/30W/50W
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110x 110mm/ 200x 200mm(optional)/300*300mm(optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220V / Single-Phase Circuit / 50/60Hz /4A

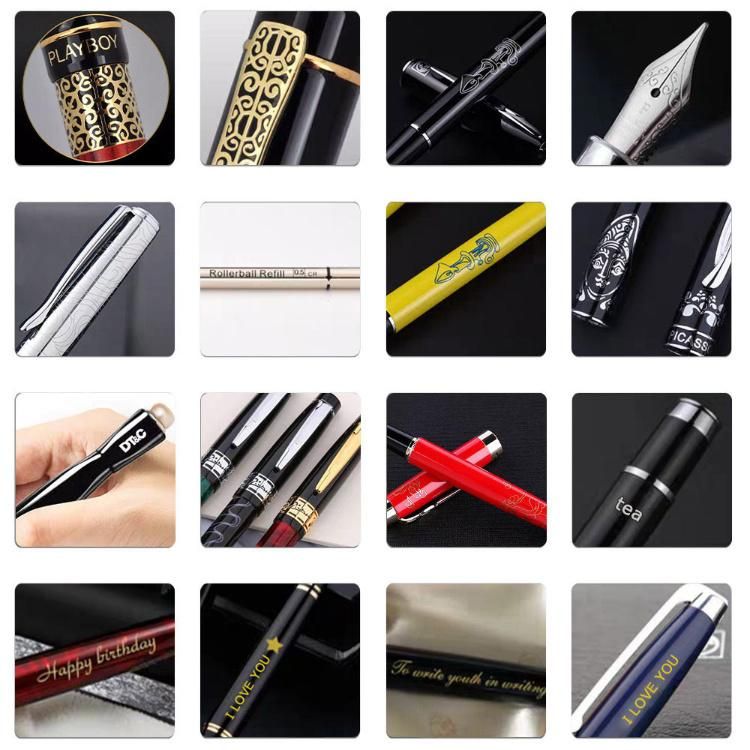

Samples:



Our Survice:
1. 24 Months for Machine
2. 6 Months for equipment outside, such as water pump, fan, air pump,etc.
3. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material. Lifely and fast technical guide and solution within 24hours by email and web camera.

About us:


FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?

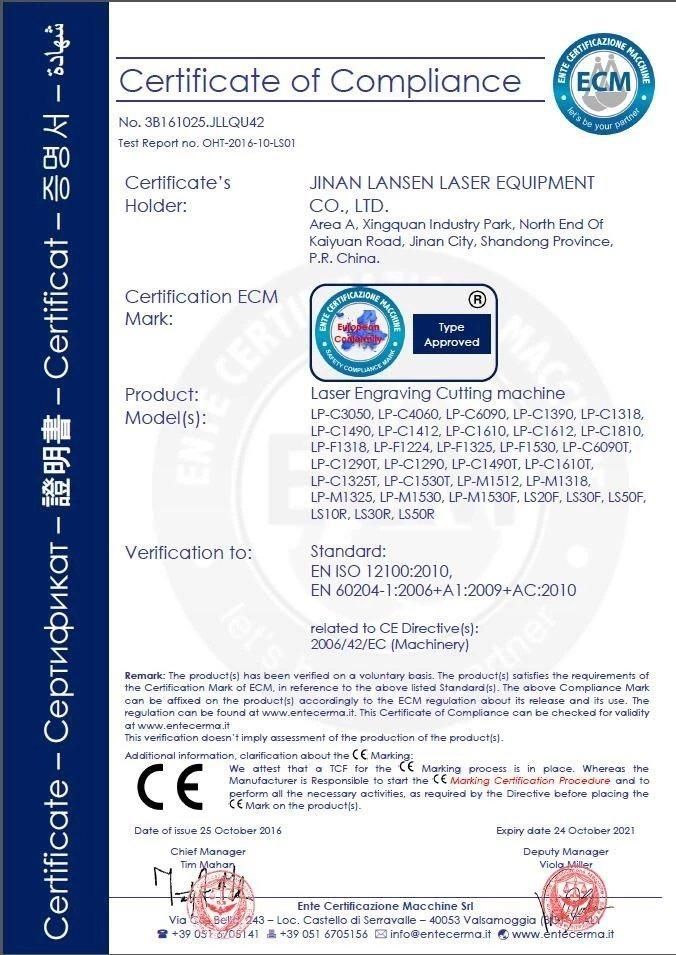

A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
