• Model NO.：MAN-30

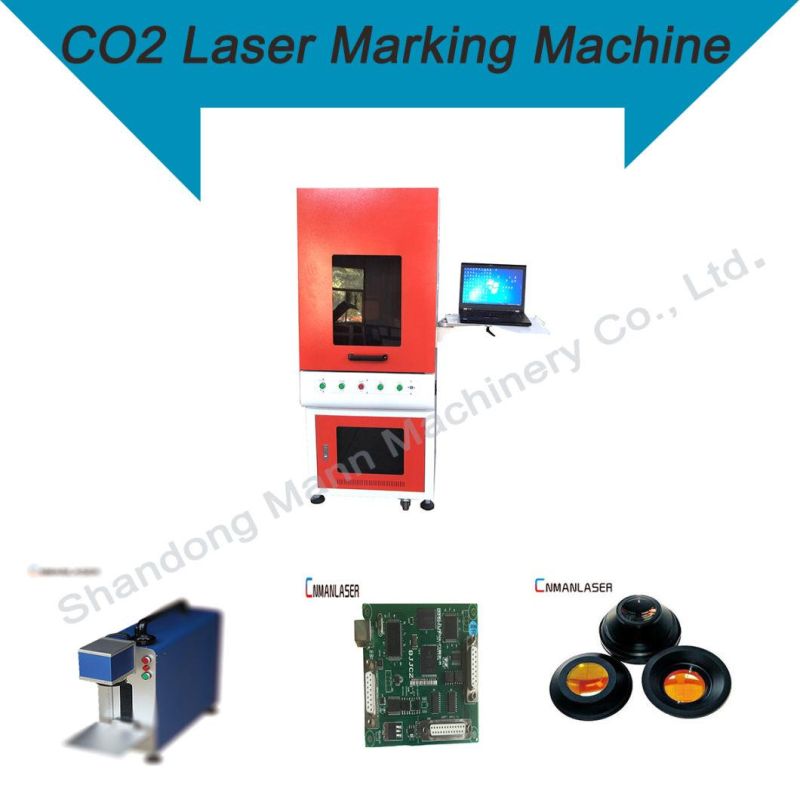

• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Warranty：3 Years
• Certification：Ce FDA ISO
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-30 Type CO2 Laser Marking Machine Marking Method Scanning Marking Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Warranty 3 Years Certification Ce FDA ISO Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

Product Features:

CO2 Laser Marking Machine equips with the most advanced metal RF CO2 laser tube, can be refilled with CO2 gas, no need to change consumables, exempt-maintenance and long life time.
With high-rate of photoelectric conversion and RF metal tube, the laser beam mode is much better than common machine with glass laser tube, and the high accuracy marking effect is what common CO2 laser marker can not achieve.
With multifunctional marking software, the machine can be collocated with ital-controlled rotary accessory, automatic fixture, and production line.





Digital Galvanometer laser scanning Head with Fast Marking Speed
A wide selectivity of operating wavelengths ultra-low amplitude noise, high stability and ultra-long lifetime

Control System
EZCAD control system with stable performance and high reliability. More than 10.000 sets of equipment are using EZCAD control card shield-utilizing part of complex functions, ensuring higher stability.

Field mirror
YAG field mirror with high transmittance and high intensity laser spot uniformity and compactness achieves the standard with more delicate effect.

Application Fields:

Application materials:  CO2 Laser Marking Machine is widely used for Jeans marking, Shoes Engraving, nylon marking, ABS/PVC/PC board marking, plastics marking, rubber marking, resin marking, medicine box marking, ceramic marking, fabrics marking, leather marking, etc. In the industries of garment engraving and cutting, fabric cutting, medical packaging, handicrafts & gift, building ceramics, beverage packaging tobacco packaging rubber items, nameplate casing, electronic components, leather and other industries.

Model name	MAN-F30
Laser type	DAVI (optional)
Laser power	20W/30W 50W/(optional)
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3 years
Optional parts	Rotary device
Machine color	blue grey ( red white,yellow black etc. for option)

Low Cost In Use >> No wearing part free of maintenance.
High Speed >> Imported laser scanning system makes the marking speed up to 7000mm/s .
High Precision>> High precision , re-position precision is 0.002mm.
Energy Saving>>The efficiency of optic electrical converting is up to 70%.
High Reliability>> MTBF ( mean time between failures ) >100 , 000 hours.
Integrated and Compact >> Small size only 0.5 M2, can be put on desk and easy to install .
Easy Operating>> easy operation ,VCD training , trouble free
10 Years Long Lifetime >> Fiber laser device adopts Germany IPG technology , 100000 hours lifetime .
No consumables>> while machine can be used free of maintenance for 8 -10 years.
Air cooling>> Adopts air cooling , has excellent cooling effect than the other cooling method.
