• Model NO.：DPLC3015-500I-D02
• Electrical Requirements：380V,50Hz.60AMP
• Type for Cutting Machine：Laser Cutting Machine
• Outline Size(mm)：4270mm*2420mm*1750mm (L*W*H)
• Automation：Automatic
• Condition：New
• Servo：Japan
• Cooling Mode：Water Cooled
• Certification：CS, SGS, ISO 9001:2008
• Type：High-Power Laser Cutting Machine
• Transmission Way：Y-Axis Imported Gear Rack Double Driver
• Transport Package：Wooden Box
• Specification：SGS,CE
• Trademark：Dapeng
• Origin：China Shenzhen
• HS Code：84561000
• Production Capacity：1set,Day

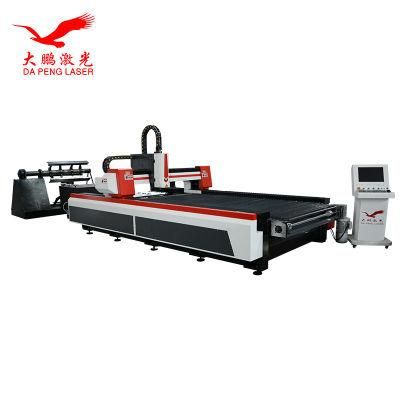

Stainless Steel Fiber Laser Cutting Machine
ADVANTAGES:
1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

SPECIFICATIONS:
ModelDPLC3015-500IDPLC3015-1000IMedium of laserSemiconductor pump continuous ytterbium doped fiberLaser wavelength 1070nmLaser output power500W1000WCutting area(mm)(L×W)      3000mm×1500mmMax cutting speed(m/min) 18 m/min24 m/minMin line width< 0.1mm< 0.125mmCutting depth 0.2mm---5mm       0.2mm---8mmDriving WayImported servo motorTranmission WayY-axis imported gear rack double driver,X-axis imported gear rackOperational Temp Range10 ~ 40ºCElectrical Requirements380V/50Hz.60AmpCooling ModeWater cooledContinuous working time24 hoursWarranty:2 years on laser source WeightAbout 3000kg                Outline size(mm)       4270mm×2420mm×1750mm  (L×W×H)
APPLICABLE MATERIALS:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

APPLICABLE INDUSTRY:
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

-------------------------------------------------------------------------------------------------------------
SUPPORT and WARRANTY

MANUALS AND INSTRUCTIONAL VIDEOS
An Operation Manual and instructional video that contains clear explanations of the Installation process and the usage of the software, the control panel and other features.

WARRANTY AND PROFESSIONAL SUPPORT
To make sure your machine never stops running, in the unlikely event that your equipment needs technical service, we have an extensive inventory of spares parts as well as technical support at any of our fully stocked facilities in China and the others oversea(India), DA PENG LASER, also offers a comprehensive warranty policy for manufacture deffects.

Shipping and training
INSTALLATION, TRAINING, STOCK AND DELIVERY
Up to 8 hours of training (2 days of 4 hours) in the Installation, Maintenance & Operation of the Laser Machine, as well as the included software is available Free of charge at our premises. Unlimited technical support is offered via telephone, e-mail and other means. Optional On-Site Installation and Training by our Tech Support Engineer is available for an additional charge at the customer's request. We have 1 fully stock facilities and other plants in the China and can deliver anywhere in the world.
