• Model NO.：PEDK-13090
• Laser Classification：Free Electron Laser
• Engraving Method：Vector Engraving
• Engraving Machine Type：Laser Engraving Machine
• Usage：Plastic
• Laser Type：CO2
• Control：CNC
• Current：AC
• Condition：New
• Engraving Speed：1-60000mm,Min
• Cutting Speed：1-10000mm,Min
• Repeat Location Accuracy：0.0125mm
• Laser Power Controlling：1-100% Manual Adjustment and Software Controlling
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO 9001 & CE
• Trademark：perfect laser
• Origin：China
• HS Code：84561000
• Production Capacity：100 Units, Month

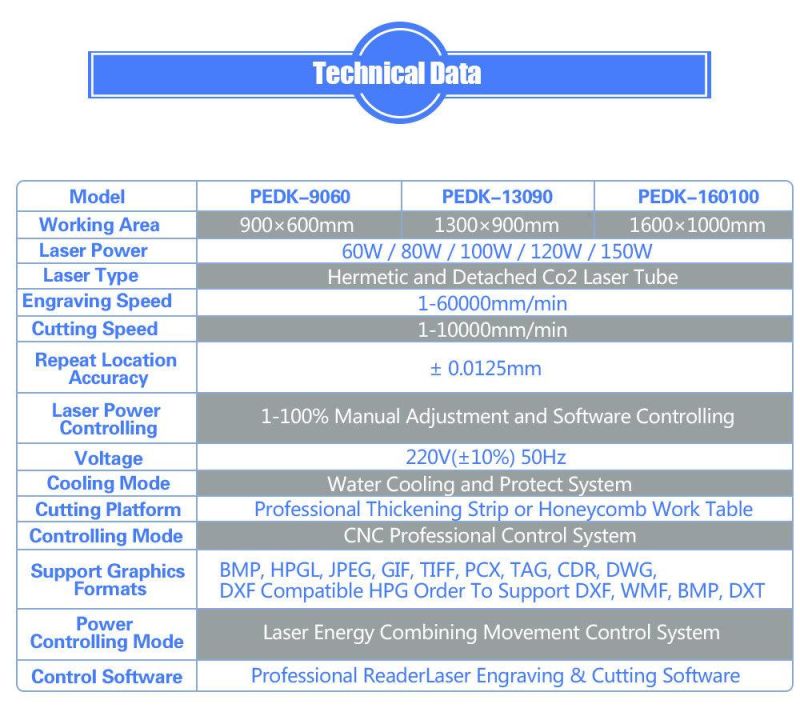

Working Area

1300x900mm (4 feet*3 feet) Co2 Laser Cutters

Laser Power

60w / 80w / 100w / 130w / 150w

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

0-60000mm/min

Cutting Speed

0-10000mm/min

Cutting Thickness

0-25mm acrylic (Others Determined by Materials)

Repeat Location Accuracy

+/-0.0125mm

Driving Mode

DC0.8A 24V Stepper Motor

Position System

Red dot Laser Pointer

Interface

USB port transfer

Voltage

AC220v/50hz or 110v/60hz

Machine Power

900w

Controlling System

CNC Professional Control System

Support Graphics Mode

BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.

Cooling Mode

CW-3000 Water Cooling (with Protection Function)

Auxiliary Devices

Exhaust Fan and Exhaust Pipe

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Power Control Mode

Laser Energy Combining Movement Control System

Software

Professional Reader Laser Cutting Software

Operating Temperature

0-45C

Operating Humidity

5-95%

Packing

Wooden Box

Guarantee Time

12 Months for Machine, 3-10 Months for Laser Tube

Operation

VCD Training, Engineer Overseas Available

Machine Size

1970mm*1480mm*1250mm

Training&Service:
1. 12months Guarantee Period;
2. Free Online Consulting Service
3. Free Operation Training in our factory;
4. Detailed Operational Manual &Traning CD in English Version
5. Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except for the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of the quality period, the parts required to repair or change, if any, shall be paid.


Please advise us of the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!

1): The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)

2): The cutting depth on the above materials? (max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)

3):The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,1600*1000mm...)Working area and laser power can be customized.

4)After cut/engrave, what will be the material used for? (application)

5)Are you an end-user or reseller?

Welcome for your inquiry soon.

Company Review:

Perfect Laser is 20 years laser industrial machine manufacturer and exporter Certified with CE&ISO&TUV.
Exported to more than 180 countries. Received many good feedback from our clients.



>>> Questions for the buyer:
1> the exact material and thickness you want to work with?
2> The working size of the machine you demand?
3> Is the machine urgent for you? (If it is urgent, we can make early preparations to ensure on-time shipment)

>>> Video links:
CO2 Laser Engraving Machine working video:

PEDK-160260 Large Scale CO2 Laser Engraving Machine:

PEDK-13090 CO2 Laser engraving & cutting machine 6mm Plywood:
