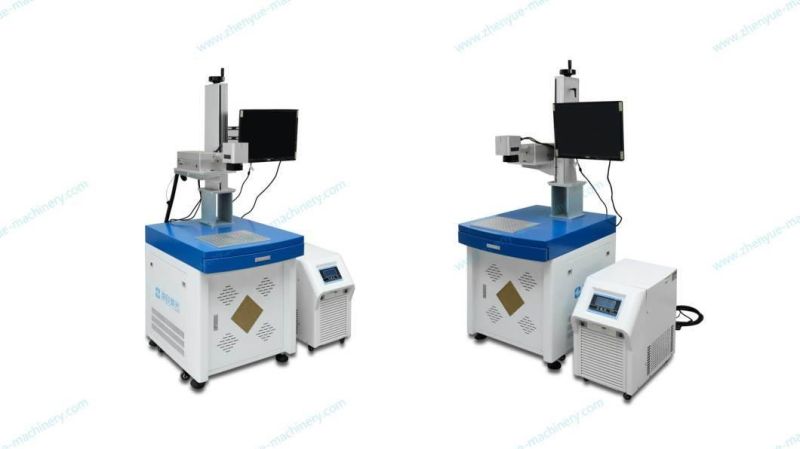

355 Nm Wavelength Laser UV Laser Marking Machine 3W 5W 8W for Plastic Marking
Ningbo Zhen Yue Machinery Co., Ltd.- After-sales Service：Online Sales After Service
- Warranty：2 Years
- Laser Visibility：Visible
- Applicable Material：Nonmetal
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
Base Info
- Model NO.：HR-Z8
- Laser Wavelength：Deep Ultraviolet
- Laser Classification：Solid Laser
- Marking Method：Scanning Marking
- Output Power：8W
- Overall Weight：120kg
- Scanning Speed：Max 10m,Sec
- Working Life：100000hours
- Working Area：175*175mm(Customized)
- Transport Package：Standard Export Plywood Cases
- Specification：60cm*80cm*140cm(standard)
- Trademark：HAIRONG
- Origin：China
- HS Code：8456100090
- Production Capacity：300units,Month
Description
Output Power
3W
5W
8W
Operation Mode
Pulsed
Pulsed
Pulsed
Single Pulse Output Energy at 20kHz
1.0MJ
1.0MJ
1.0MJ
Pulse Width
<25ns
<25ns
<25ns
Peak Power of the Pulse at 20kHz
>20/10kW
>20/10kW
>20/10kW
Adjustment Range of the Output power
10 - 100%
10 - 100%
10 - 100%
Output Power Stability
<+/- 2, %
<+/- 2, %
<+/- 2, %
Laser Wavelength
355nm
355nm
355nm
Marketing Area
175x175 mm(customized)
175x175 mm(customized)
175x175 mm(customized)
Scanning Speed
Max 10 m/sec
Max 10 m/sec
Max 10 m/sec
Storage Temperature
- 20 to + 60°C
- 20 to + 60°C
- 20 to + 60°C
Operating Ambient Temperature
+ 5 to + 40 °C
+ 5 to + 40 °C
+ 5 to + 40 °C
Input Voltage
220VAC
220VAC
220VAC
Input Electric Power
<500W
<500W
<500W
Cooling
Water Cooling
Water Cooling
Water Cooling
Overall Weight
120kg
120kg
120kg
Full-load power consumption of the whole machine
1.5kw/h
1.5kw/h
1.5kw/h
Working Life
100000hours
100000hours
100000hours
3.Product Superiority
1).The UV laser marking machine uses the pulsed UV laser. When the pulse width is less than 30ns, it can output peak power up to 25kW, and has high beam quality close to the diffraction limit, M2 < 1.5.
2).The laser wavelength is 355nm UV which will form very small spot(cold light).
3).The UV laser marking machine is of high cost performance with maintenance free.
4).The all ultraviolet structure of the laser ensures the high reliability of the laser without any optical elements for collimation adjustment.
5).The UV laser marking machine has the advantages of long service life, small size and is equipped with water cooling system, which can quickly cool the machine.
6).The integrated design of the system makes it more convenient for customers to use and provides an ideal solution for various industrial applications.
7).Our company has a large warhouse filled with sufficient inventory and varieties of products.
8).The products can be customized.
4.Application Fields
The laser wavelength is 355nm UV which will form very small spot(cold light). Therefore, it can greatly reduce the mechanical deformation of materials. It is mainly used for ultra-fine marking and engraving. It is very suitable for the marking and micropores of food, pharmaceutical packaging materials, glass materials and complex graphic cutting of silicon wafers.

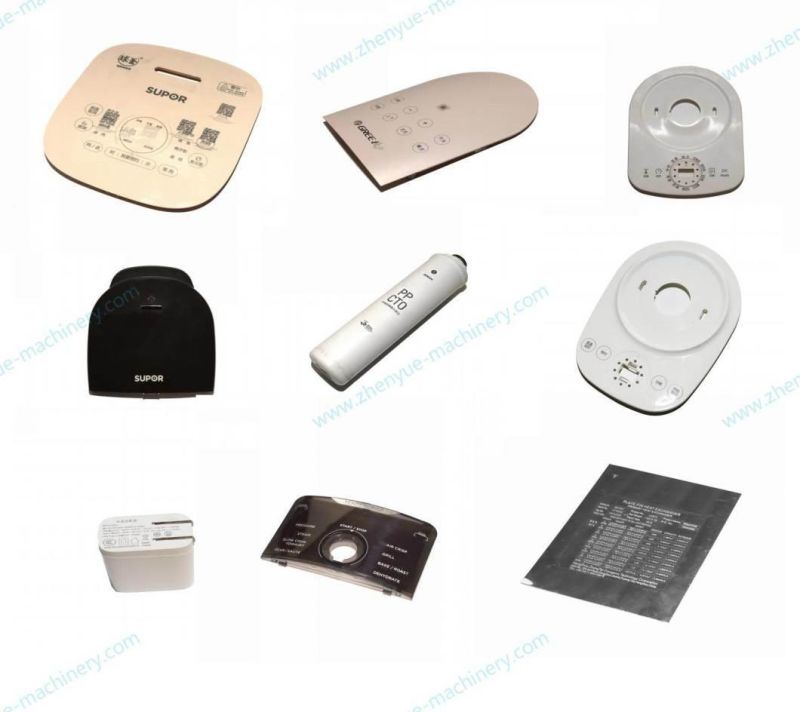

5.Marking Sample
6.Our Company

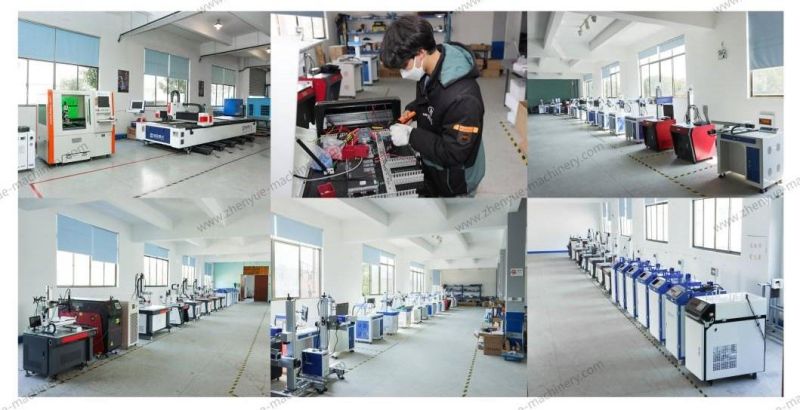

7.Our Factory
8.Exhibition
