• Model NO.：LBJC-700-B
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Source：Max
• Marking Area：110*110mm, 150*150mm
• Marking Speed：600-1000 Characters,Min
• Cooling Type：Air Cooling
• Transport Package：Wooden Case
• Specification：20w
• Trademark：Label Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. LBJC-700-B Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Source Max Marking Area 110*110mm, 150*150mm Marking Speed 600-1000 Characters/Min Cooling Type Air Cooling Transport Package Wooden Case Specification 20w Trademark Label Laser Origin China HS Code 8456110090 Production Capacity 300 Sets Per Month

Product Description

20W Cheap Fiber Laser Marking Machine

LBJC-700-B Series are outstanding and revolutionary products which combine high speed

and high resolution laser marking system.

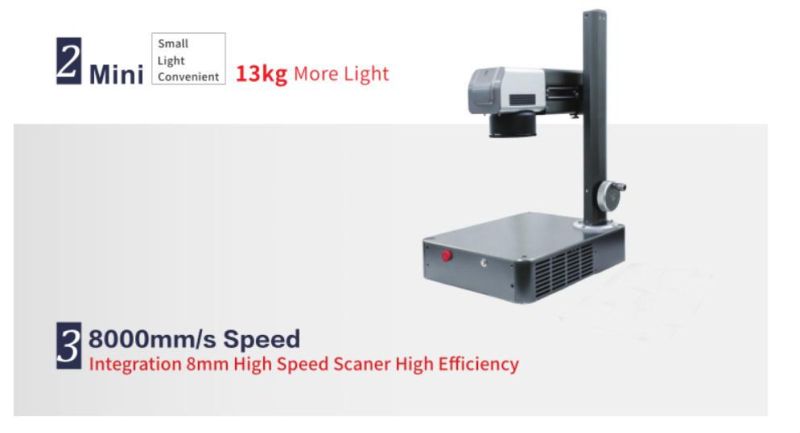

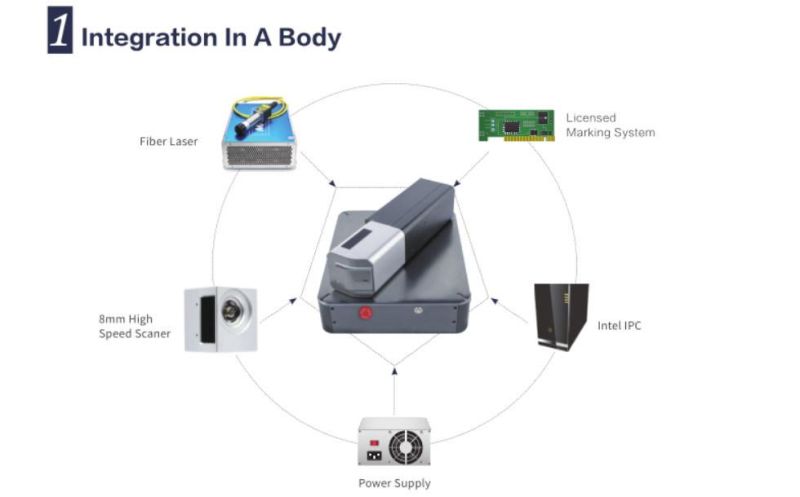

Compact, stand-alone, simple design that can be integrated directly into the user's device. Super

low power consumption, practical, and durable design for laboratory, hobbyist, handicraft, daily

supplies, ect.

Product features:

1.High speed, and delicate marking. The marking speed is 2-3 times than the traditional marking machine.

2. Narrow pulse width, high peak power, wide frequency.

3.High reliability, super long life span time.

4. Shadow and virtual breakage will not occur in special material processing.

5. With double red light and one red frame postion for auto focus, only need to connect LCD display, keyboard, mouse.

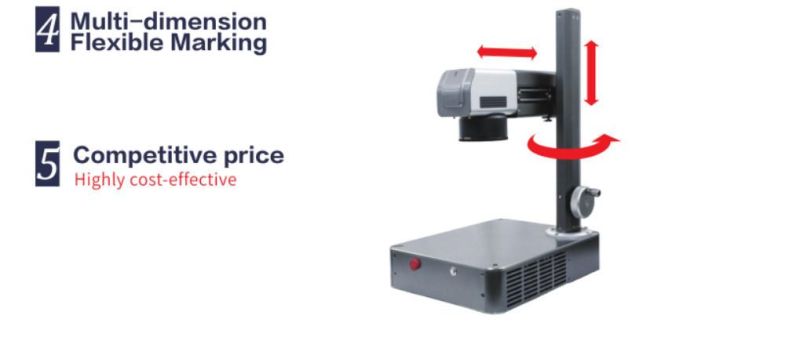

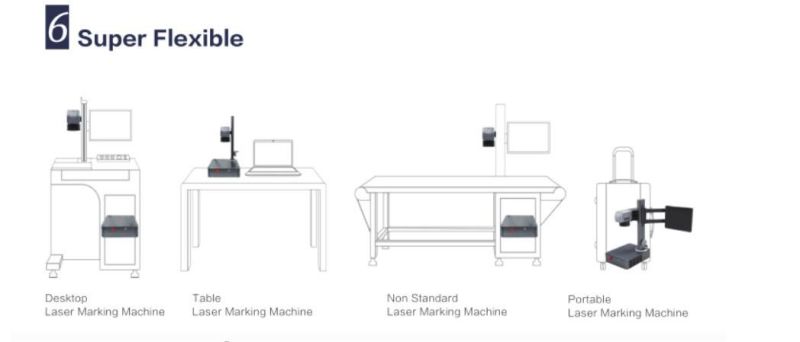

6. Lifting handle can rotate 360 degree, and optical base is movable horizontally thus it can flexibly mark different shapes, size of small and big workpieces.

Product details:












Technical Parameter:


Laser Type	Fiber laser
Laser Power	10W  20W
Model	LBJC-700-B
Laser Wavelength	1064nm
Laser Source	Max
Beam Quality	M2<1.4
Frequency Tunable Range	10W           20-50khz 20W           30-60khz
Marking Area(Standard)	110*110mm (F=160MM)
Engraving Line Speed	0-15000mm/s
Model for focusing	Manual
Marking Speed	600-1000 characters/min
Min. Line Width	0.02mm
Min. Character	0.15mm
Repetition Accuracy	±0.002mm
Cooling	Air Cooling
Working Environment	Clean room or less dust room
Working Temperature	10ºC~35ºC
Power Consumption	≤120W(10W)    ≤160W(20W)
Cooling Mode	Air cooling
Operation Voltage	220V (10%)/ 50HZ( ±5%) single phase
USB Interface	2xUSB2.0; 2xUSB3.0
Operate System	Windows 7 32 bit; Also support Windows 7/Windows 8/ Windows 10/Linux
Serial Port	1x RS232(contact pin), and COM1 support mode  RS422, RS485
Display Port	1x HDMI: HDMI supported Max. resolution is  1920x1200@60Hz

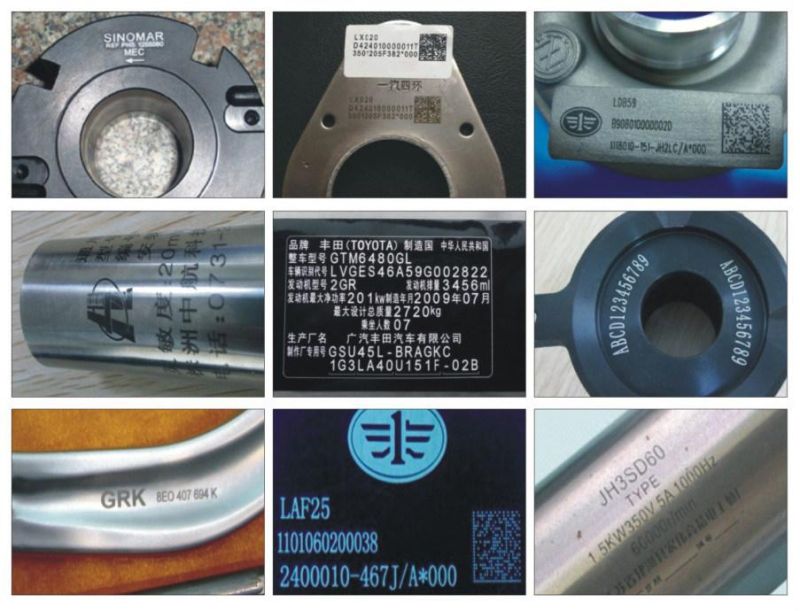

Marked Samples:




Applicable field and material:

It is mainly used for marking and engraving on metal, aluminum, stainless steel, brass, silver, alloy, iron and nonmetal surface.

Our machine is widely applied in auto parts, mechanical products, hardware tools,medical devices, electrical appliances, consumer products, ect.

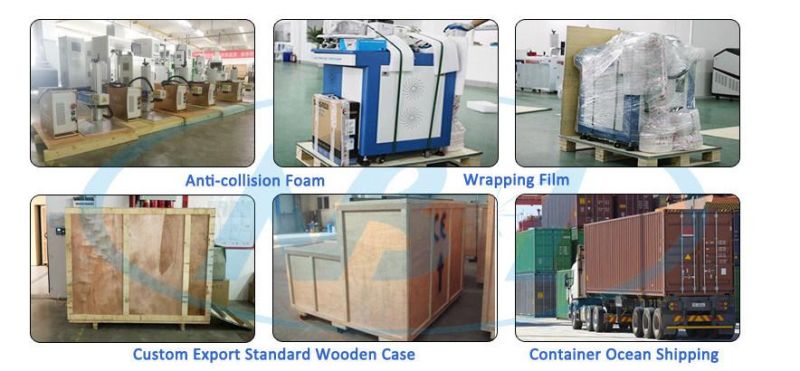

Packing detail




Company Profile

Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser welding machine, laser cleaning machine for customers since 2000.

With over 18 years development,Label Laser has accumulated rich technical and design experience for industrial marking system, a large number of successful cases and well-know customers in industries of machinery, automotive, iron and steel, petroleum, petrochemical, aviation, electronic products, tools, instrument, apparatus, etc.






Why choose us


A. More than 18 years laser marking, welding, cleaning, processing, manufacturing, research and design rich experience.

B. Professional technical group for customized industrial laser marking system.

C. More than 3000+marking solution cases accumulated in domestic and oversea markets.

D. 100% strict QC for both raw materials and finished products.

E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.

F. ISO,CE,SGS certified and complete aftersales service team.


FAQ


Q1: What type of the machine suitable for us?

Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.

Q2: If we do not know how to use the machine,can you teach us?

Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.

If you come to our factory in China, our technicians will offer you free training until you can use machine freely.

Our professional engineer can come to your country for trainning, installation, adjusting, ect.

Q3: How about the delivery time?

For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.

Q4: How about the warranty time?

Our fiber laser machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.

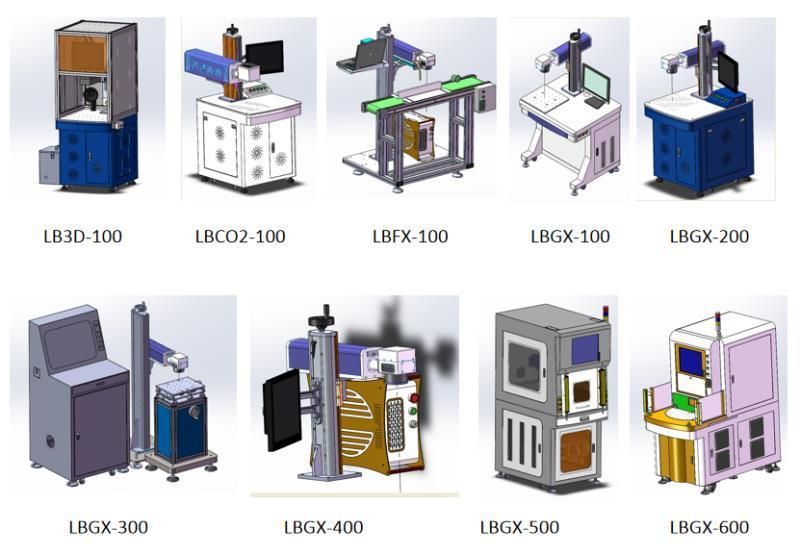

More Products
