10mm Metal Laser Cutting Machine Fiber Laser Power Supply 1000watt
Jinan Huaxia Machinery Equipment Co., Ltd.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Desktop
- Laser Classification：Free Electron Laser
Base Info
- Model NO.：HX1530
- Laser Technology：Laser Cutting
- Laser Power：China Raycus 1000W
- Laser Head：Shanghai Empower
- Control System：China Cypcut
- Motor and Drive：Japan Yaskawa 850W
- Reducer：Japan Shimpo
- Pneumatic Parts：Korea
- Electronic Parts：Schneider
- Water Chiller：Cw6200
- Transport Package：Plywood Case After Packed by Wrapping Film
- Specification：1500*3000mm
- Trademark：HuaXia
- Origin：China
- HS Code：8456110090
- Production Capacity：30 Sets,Month
Description
9000*5000MM
A cast iron bed lasts forever
Mold pouring, clone production; integrally formed, reject splicing.
Auto focus laser head
Applicable to various focal lengths, achieve the best cutting effect of different thicknesses sheets metal.
Cast aluminum crossbeam
Integral steel mold pressure casting, light, flexible and efficient;
High flexibility is beneficial to high-speed cutting of various graphics based on high accuracy.
Touch control
Elegant appearance curve
The new 21.5 inch touch display has a large area and incorporates touch function for more convenience. The cooperation between the UI display and the cutting table makes a more intuitional operation. The 10 points touch is more accurate, which improves users' experience.
Control system Pro
Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusiveness.
Wireless Remote Control Handle
Mobile phone size can meet one-handed operation; Elegant curves fit the hand palm well; Magnetic design can be adsorbed on the machine bed at any time, available at all times.
Touch screen control
3rd Generation Aviation Aluminum Gantry
Aerospace aluminum is manufactured using
aerospace standards and extruded using a 4,300-ton press.
After ageing, the hardness can reach T6, which is the strongest hardness of all beams. Aviation aluminum has better toughness, light weight, corrosion resistance, oxidation resistance, low density, and greatly improved processing speed.
No manual operation, simple autofocus (make focusing easier)
Automatic adjustment
No manual manual focusing is needed. The software automatically adjusts the focusing lens to control the height of the top and bottom to achieve automatic perforation and cutting of different thickness plates. The software memorizes the focal length of different plates and the operation is simpler, which is ten times the manual speed.
Large adjustment range 10 ~ --10, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. long life
The collimating lens and the focusing lens are double water-cooled to reduce the temperature of the cutting head and increase the life of the cutting head.
Independent control cabinet dust-proof
All electrical components and lasers are built into independent control cabinets.
Dust-proof design increases the life of electrical components.
Automatic thermostat
All electrical components and lasers are built into an independent control cabinet.
The outside of the control cabinet is equipped with an air conditioner and an automatic thermostat. In summer, it prevents damage to components due to excessive temperature.
Stainless steel protection design
The operating area is designed with 304 stainless steel to prevent cutting high temperature sparks from damaging the machine surface.
PAD design display Apple pad design, vertical screen display, different from traditional horizontal screen display, fast response, high contrast, wide viewing angle, low power consumption, high resolution, higher brightness, lower reflectivity, toughened glass panel.
Transmission and accuracy
Jinwei engraved fiber laser cutting machine adopts Japan Yaskawa Electric, Taiwan Shangyin rack, France Mordor reducer.
The positioning accuracy of the machine tool is 0.02.

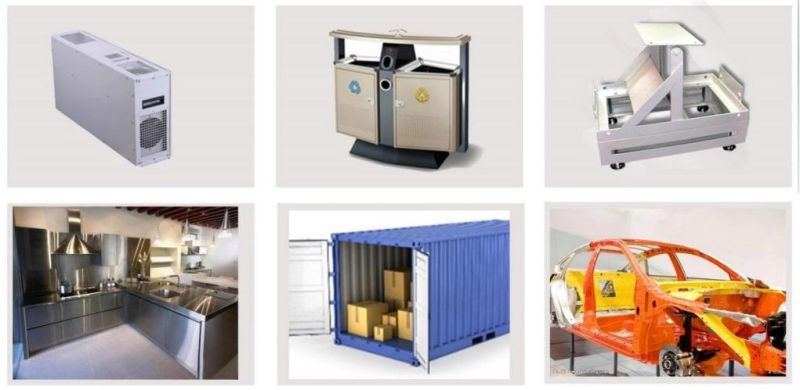

Application:
Available for cutting such metal sheet as stainless steel, carbon steel, copper, brass, alloy steel, aluminum, gold, silver, titanium and so on.
Widely used in the sheet metal processing, shipbuilding, automobile, rail transportation, agriculture machinery, advertising board ,kitchen utensils, machinery, elevator and so on. CNC fiber laser cutting machine.
