• Model NO.：SKL-1530FB
• Laser Technology：Fiber Laser Cut
• Working Area (X*Y)：1500*3000mm
• Body Structure：Thicken Steel Made
• X, Y Structure：Rack and Pinion
• Rails：Taiwan 25 Square Rails
• Z Structure：Taiwan Tbi Ball Screw
• Max Moving Speed：60000mm,Min
• Xyz Traveling Positioning Accuracy：+-0.01mm

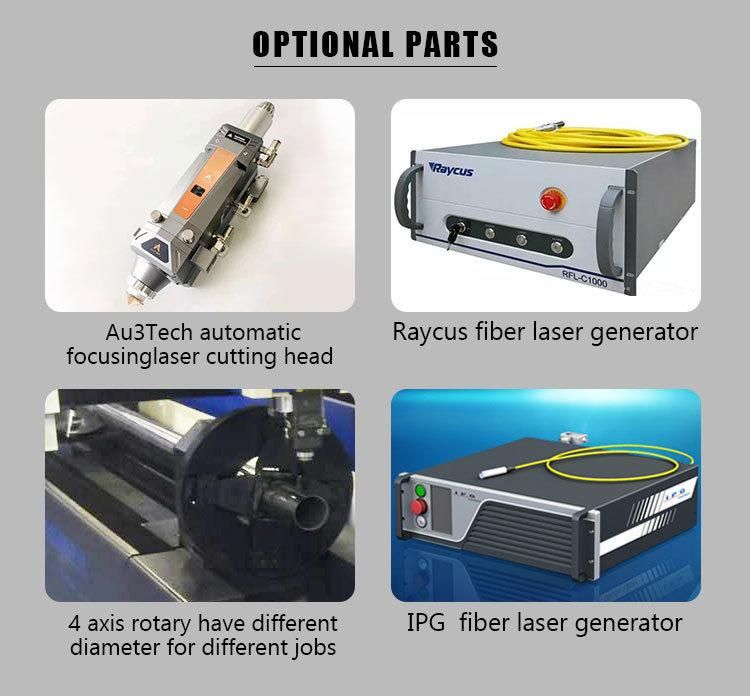

• Fiber Power：Raycua 500W Fiber Power
• Voltage：380V,3phase,Customized
• Drive Type：Schneider Servo Motors&Drivers
• Working Dictate：Working Dictate
• Operating System：Handheld DSP Control System
• Auto Oil Lubricator：Yes, Included
• Wire Protect：Wire Protect
• Fiber Metal Cutter：Yes
• Transport Package：Standard Export Plywood Wooden Box
• Specification：1500*3000mm
• Trademark：SENKE
• Origin：China
• HS Code：8456110090
• Production Capacity：200sets,Month

ModelSKL500F-1530Working area (X*Y)1500*3000mmBody structureThicken steel madeX, Y Structurerack and pinionrailsTaiwan 30 square railsZ StructureTaiwan TBI ball screwX, Y Resolution<0.01mmMax Moving Speed60000mm/minMax Engraving Speed40000mm/minXYZ traveling positioning accuracy±0.01mmXYZ repositioning accuracy±0.01mmSpindle powerRaycua 500W fiber powerVoltage380v/3phaseDrive typeSchneider servo motors&driversDriverSchneider servo driversWorking DictateG CodeOperating systemhandheld DSP control systemAuto oil lubricatorYes,includedWire protectYes,includedRunning EnvironmentTemperature: 0ºC~45ºCpackageExport wooden boxAfter packed size4.7*2.25*1.89MG.W4000KGS
