• Model NO.：FC20 FC30 FC50 fC60 FC100
• Laser Wavelength：Fiber Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Source：Racyus,Jpt,Iipg
• Galvo Head：Sino
• Lens：100X100mm 4inch,Optional
• Software：Ezcad2 Ezcad3
• Control Board：Jcz
• Rotary Axis：Optional for Round Object Marking
• Fume Purifier：Optional
• Transport Package：Plywood
• Specification：99x62x106cmx154kg
• Origin：China
• HS Code：8456110090

Overview Technical date



Technical IndicatorsNameLaser Parameterslaser sourceRaycus/JPT/IPG(optional)Laser Wavelength1064nmAverage Output Power30wModulation Frequency Range30kHz-60Khz(20w/30w);
50khz-100khz(50w)Galvometer ParametersMaximum Linear Speed7000mm/sResolution12μradRepeatability8μradOptiocal output characteristicsMarking Range110x110mmMinimum Line Width0.01mmMinimum Character height0.2mmCooling SystemCooling MethodAir CoolingSysten PropertyLaser power0.5kw/AC220V(110V optional)LTower height50cm/80cmEnvironment Requirement0-35ºC

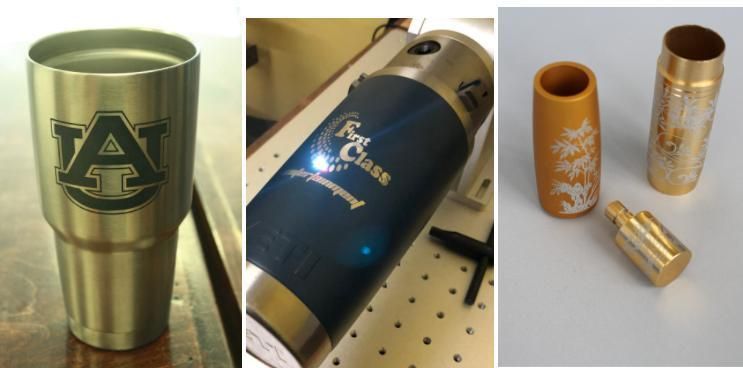

Working videos brass markinghttps://youtu.be/bieldrdDPP0Jewelry ring markinghttps://youtu.be/ZSgs1BphpUkJewelry ring cuttinghttps://youtu.be/V2WM4DrAG_Ystainless steel markinghttps://youtu.be/oX7pJrggGgsCarbon steel markinghttps://youtu.be/1L_mpHLIOg4Samples

Fiber laser marker can mark on almost any metal.
It can also cut some thin jewelry plate.
30w cut up to 0.5mm gold/silver/brass.
50w cut up to 1-1.2mm gold/silver/brass.
If thicker than this thickness,it is also ok,but it takes much longer time to do it.




Detailed Photos

Packing

Ply-wood case:99*62*106cm,120kg/154kg
