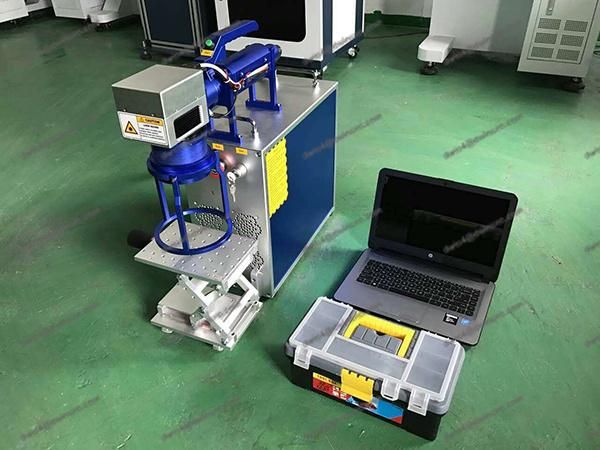

20W Metal Nonmetal Fiber Color Laser Marking Machines Price
Jinan Dwin Technology Co., Ltd.- Laser Visibility:Visible
- Applicable Material:Metal
- Cooling System:Air Cooling
- Technical Class:Pulse Laser
- Laser Wavelength:Fiber Laser
- Laser Classification:Gaseous Laser
Base Info
- Model NO.:DW20 fiber marking machine
- Type:Optical Fiber Laser Marking Machine
- Marking Method:Scanning Marking
- Certification:Ce, ISO, FDA
- Voltage:AC220V,50Hz
- Laser Power:10W 20W
- Laser Type:Fiber Laser
- Cooling Way:Air Cooling
- Machine Warranty:2 Years for Machine Body
- Minimum Line Width:0.01mm
- Minimum Character:0.15mm
- Repeatability Accuracy:±0.002mm
- Operating Temperature:5-40ºC
- Transport Package:Plywood Box, Free of Fumigation
- Specification:Machine can be customized
- Trademark:Dwin
- Origin:Jinan City, China
- HS Code:8656100009
- Production Capacity:500 Sets Every Year
Description
Basic Info.
Model NO. DW20 fiber marking machine Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification Ce, ISO, FDA Voltage AC220V/50Hz Laser Power 10W 20W Laser Type Fiber Laser Cooling Way Air Cooling Machine Warranty 2 Years for Machine Body Minimum Line Width 0.01mm Minimum Character 0.15mm Repeatability Accuracy ±0.002mm Operating Temperature 5-40ºC Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8656100009 Production Capacity 500 Sets Every YearProduct Description
20W Metal Nonmetal Fiber Color Laser Marking Machines PriceTechnical Data:
No. | Description | Parameter |
1 | Marking area | 110*110mm(option:150*150mm,200*200mm,300*300mm) |
2 | Laser power | 10W (20w/30w/50w,etc for option) |
3 | Marking speed | ≤8000mm/S |
4 | Max.Marking Depth | ≤0.4mm |
5 | Laser Wavelength | 1064nm |
6 | Marking lines | 1-10 marking lines(in the marking area) |
7 | Minimum line width | 0.01mm |
8 | Minimum character | 0.15mm |
9 | Resolution ratio | 0.01mm |
10 | Repeatability accuracy | ±0.002mm |
11 | Operating temperature | 5-40ºC |
12 | Unit Power | ≤500W |
13 | Graphic format supported | BMP,JGP,PNG,DXF, etc. |
14 | Supply Voltage | 110V/50HZ/10A(option:220V) |
Machine Application

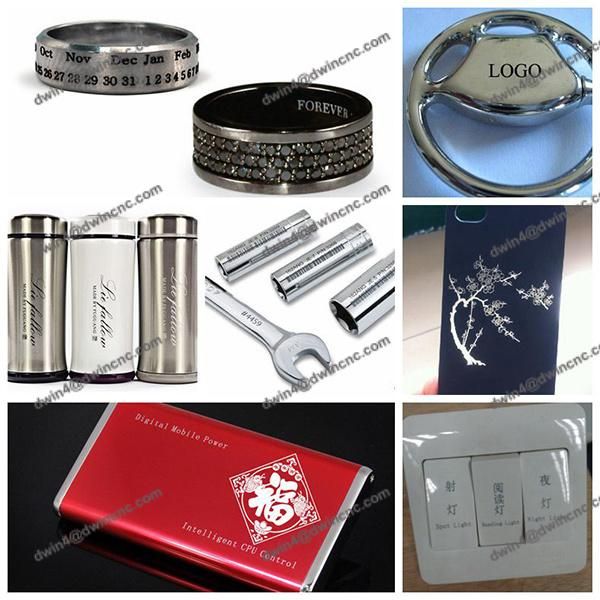

Any metal and nonmetal materials,flexible paper label/industrial plastic/rubbers/powder-coating/electroplate materials and so on. Automotive vechile/automobile part/motorcycle parts/sanitary ware/telecom apparatus/electronic parts/plastic key button/integrated circuit(IC) and so on.
Guarantee & After sales service:
1. 24 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
