• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-30L
• Laser Power：20W;30W;50W;60W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：75*75mm;110*110mm;Optional
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Transport Package：Wooden Case
• Specification：800*650*1430mm
• Trademark：Lospeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model Ls-Ylp-30L Laser Power 20W;30W;50W;60W Power Consumption <500W Wavelength 1064nm Engraving Range 75*75mm;110*110mm;Optional Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Transport Package Wooden Case Specification 800*650*1430mm Trademark Lospeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

Hispeed Laser 2020 20W New Desktop Fiber Laser Marking Machine for Metal Logo Plastic Engraving






>>>>>>Equipment Description<<<<<<

Hispeedlaser develops and produces complete air cooling Optical Laser marking system in china.
It is environments friends, low consumption, fully automatically and leading laser system.

This creative laser system makes the optical conversion rate up to 38%-50%. The air cooling can meet the system is small and compact size.

Fiber output, can flexibly marks 3D processing system. The backward reflecting solator, which used the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator can block the laser reflecting by work piece to avoid the laser entering the laser oscillator again to damage the laser oscillator.

Applicable Industry
Translucent plastic buttons, IC chips, digital product components, precision machinery, jewelry, sanitary ware, measuring and cutting tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communications components, automobile parts, plastic products, medical equipment, building materials, pipes and other high-precision product marking.

Applicable Materials
Metals and a variety of non-metallic materials, high hardness alloys, oxides, plating ,coating, ABS, epoxy resin, ink, plastic, etc.




>>>>>>Machine Features<<<<<<

• Minimal Maintenance
• Diodes have a lifetime of more than 80,000hrs
• High quality permanent marking
• Environment friendly and safe Machinery
• Works both on Metal and Non-metal

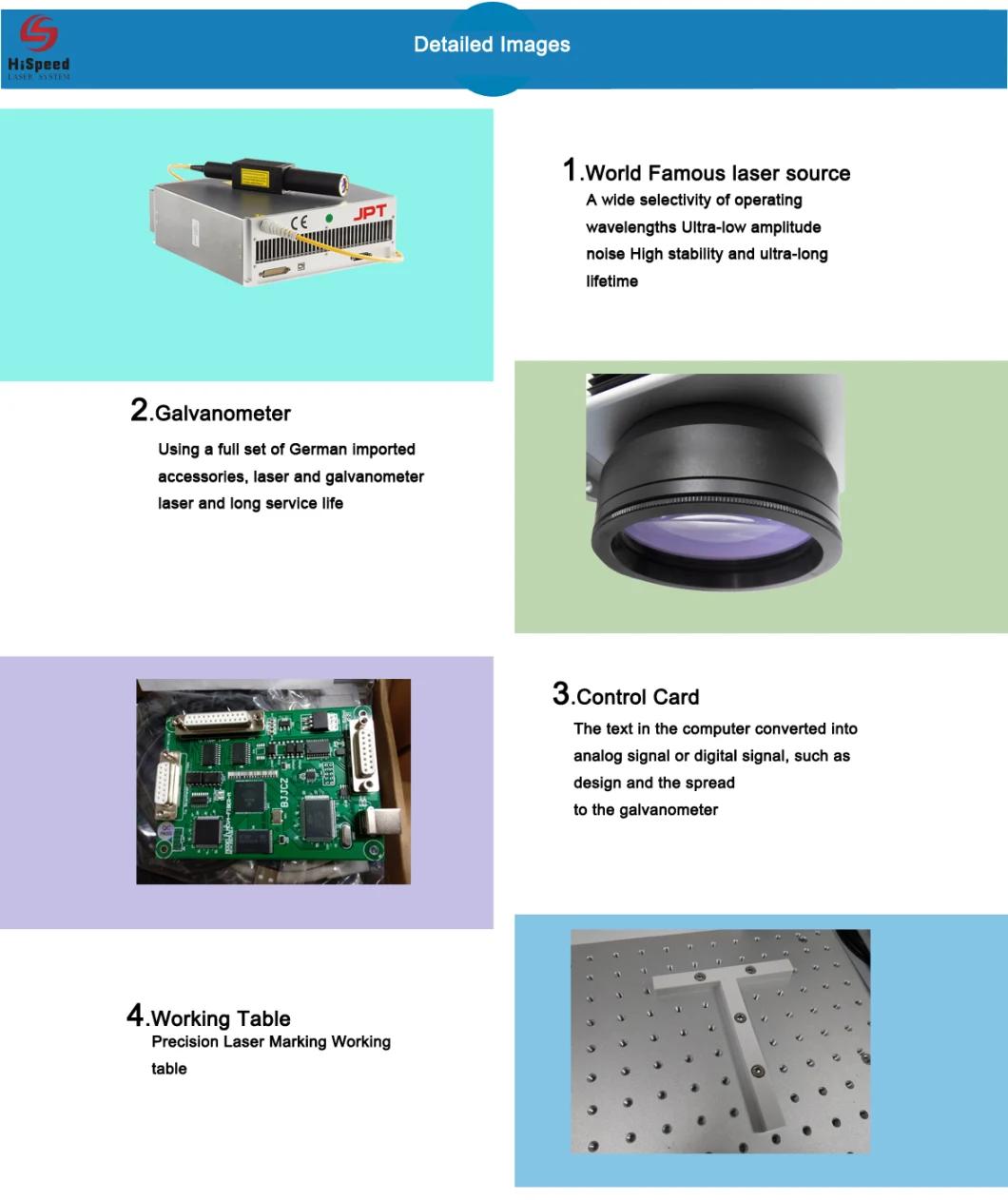

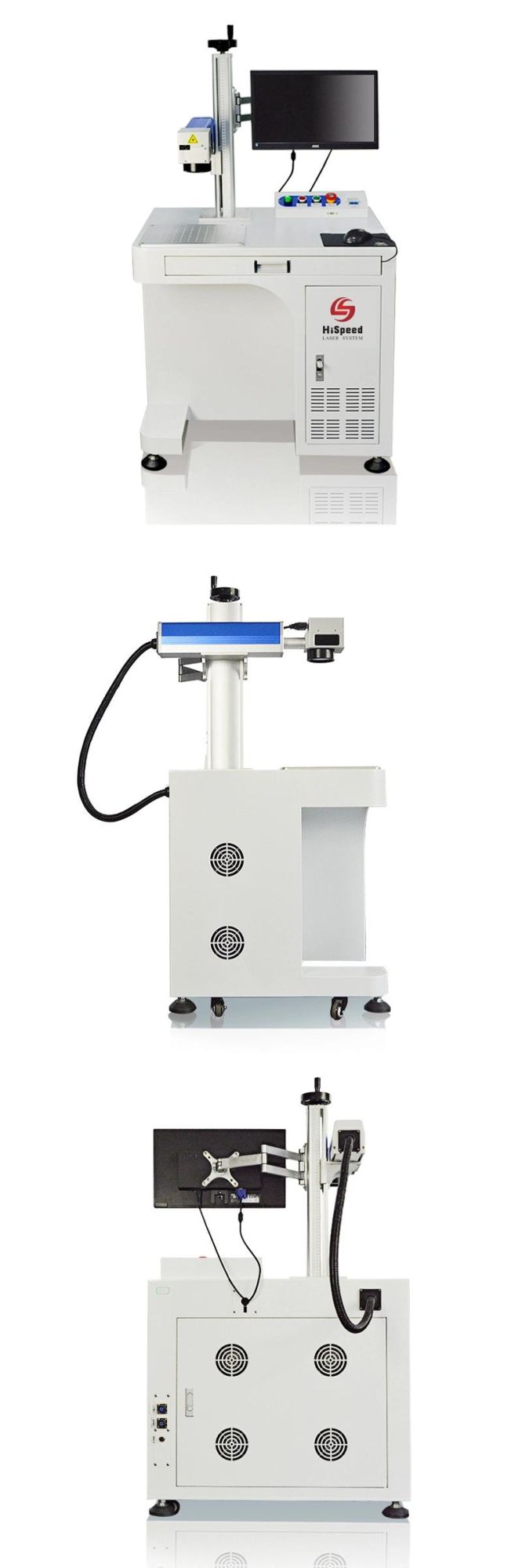

 >>>>>>Machine Details Show<<<<<<





>>>>>>Technical Parameters<<<<<<


Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

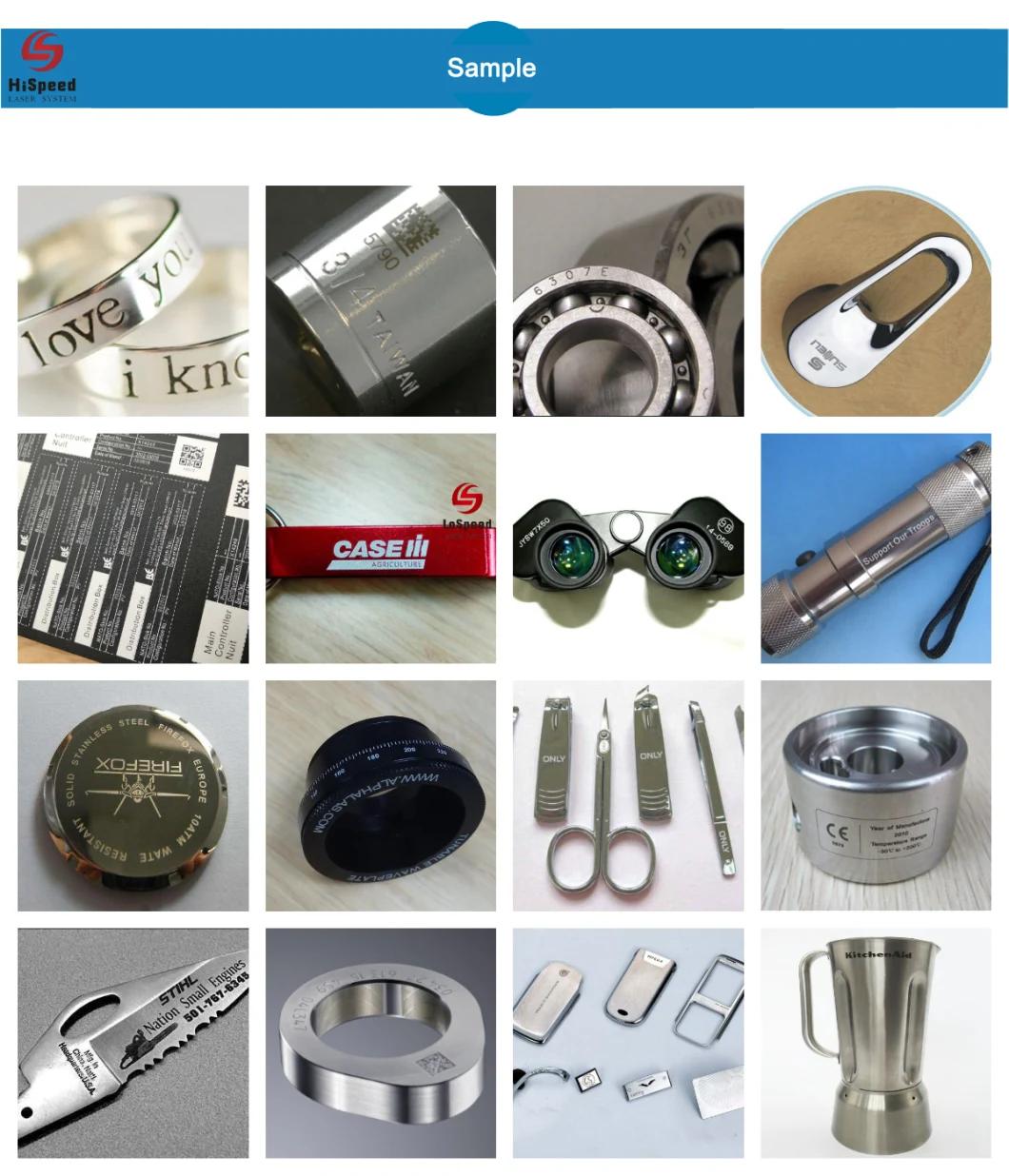

>>>>>>Laser Marking Sample Show<<<<<<

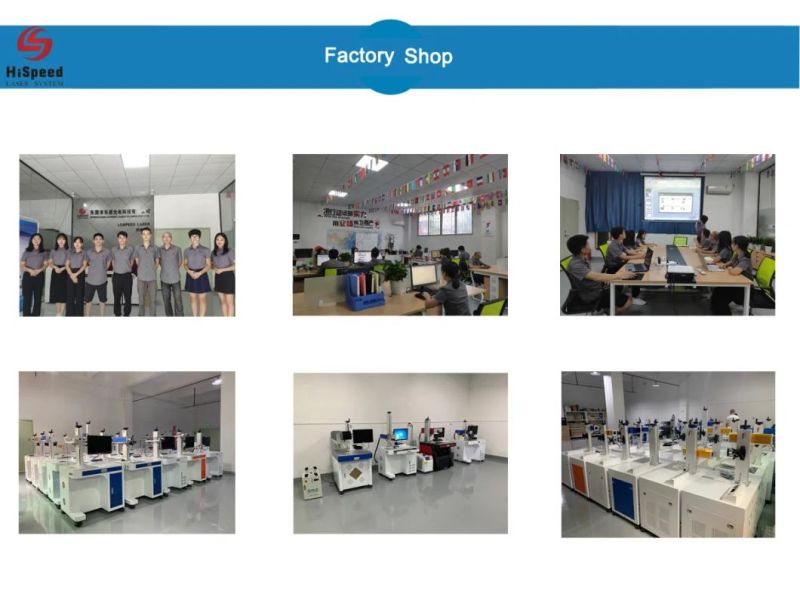

>>>>>>Company Information<<<<<<
HiSpeed Laser Company is a modern professional Hi-Tech enterprise, specializing in manufacturing of Fiber Laser Marking Machine,CO2 Laser Marking Machine,UV Laser Marking Machine, Portable Laser Marking Machine,Mini Handheld Laser Machine,and Laser Engraver Machine, Laser Tube, Laser Power Supply, Laser Optics and Laser accessories etc.

Hispeed Laser mainly product is including:

Metal Laser Marking Machine with Max Super Laser Generator for Sale , Mini Laser Engraver, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer,Laser Rotary Table,3D Laser Table,Laser Rotary Chuck,Laser accessories etc.

>>>>>>Contact Us<<<<<<

Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.

Please advise us following inforamtion to recommend you most suitable machine:

1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
