• Model NO.：LBQX-600
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Consumable Items：No
• Working Life：100, 000hours
• Protection Cover：Can Be Customized
• Transport Package：Wrapping Film & Export Standard Wooden Cases
• Specification：670mm× 1100mm× 1150mm
• Trademark：Label Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300,Units

Basic Info.

Model NO. LBQX-600 Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Consumable Items No Working Life 100, 000hours Protection Cover Can Be Customized Transport Package Wrapping Film & Export Standard Wooden Cases Specification 670mm× 1100mm× 1150mm Trademark Label Laser Origin China HS Code 8456110090 Production Capacity 300/Units

Product Description

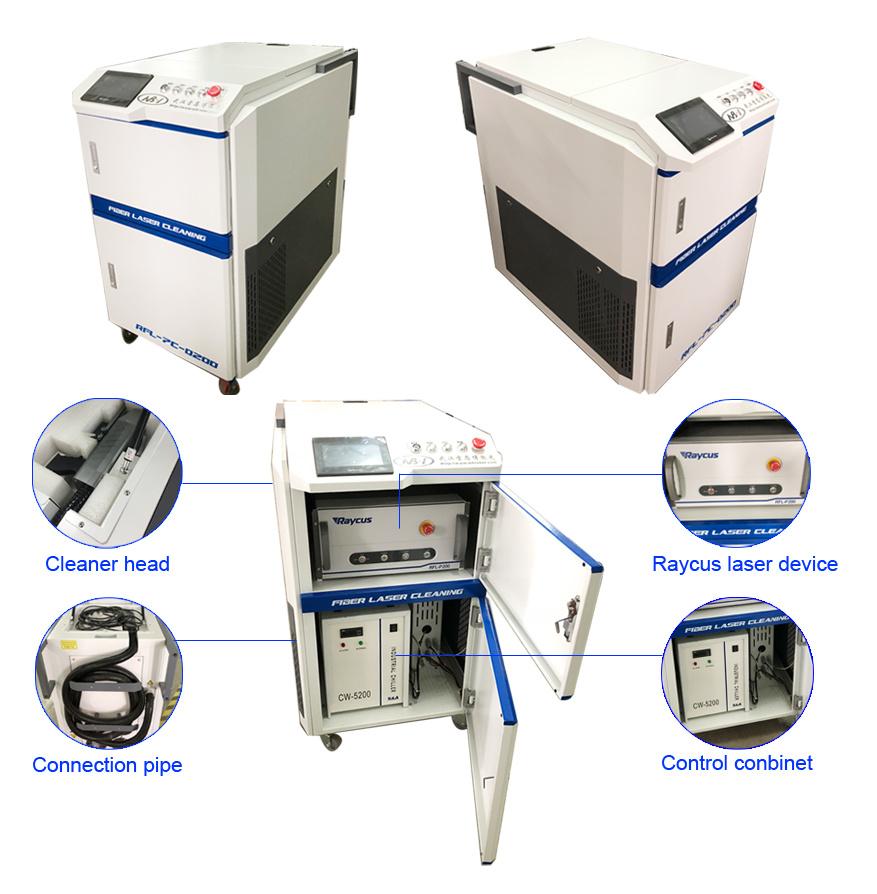

Laser machine to cleaning remove rust and paint from metals machine price (LBQX-600)

Laser cleaning equipment is high-tech product for a new generation of surface cleaning.
Clean resin, oil, stains, dirt, rust, coating, plating, paint on metal surface by removing the surface coating without chemical reagent, medium, dust, water. .
Workable on both flat and curved surfaces.




Product  features:

• Non-contact cleaning,no damage for parts.
• Precisely work on the selected  location and size
• No need any chemical cleaning agent,no consumables,safety and environmental friendly
• Simple operation: Power on,automatic cleaning can be realized by hand or cooperating with manipulator.
• High cleaning efficiency
• Cleaning system is stable and requires almost no maintenance

Application Fields:

• Shipbuilding industry
• Auto parts
• Rubber mold
• High-end machine tools
• Tyre mould
• Railway
• Environmental protection industry
• Others

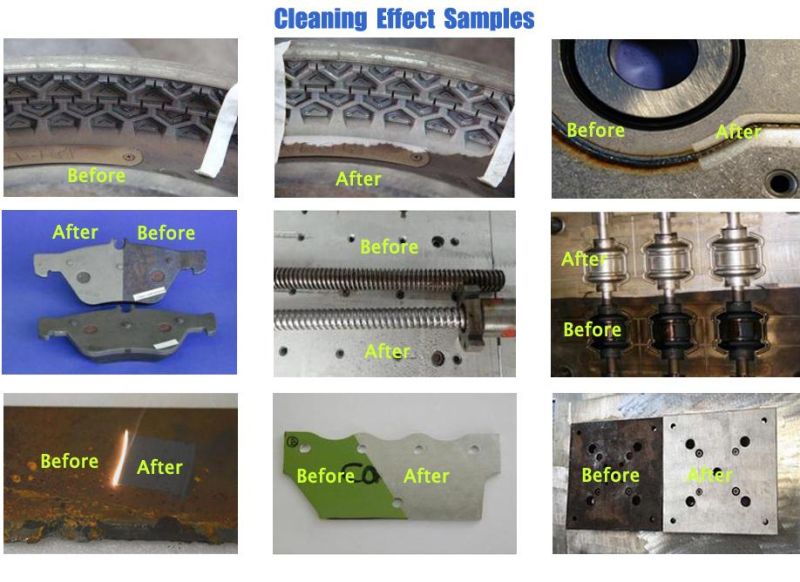

Cleaning Samples:



Mechanical Parameter:


Item	Parameter
Size	670mm×1100mm×1150mm
Weight	150KG
Fiber Length	5m(or 10m for custmized)
Weight of cleann head	2KG
Movable Mode	Hand Push
Scan width	10-80mm

Optical Parameter:


Item	Parameter
Average output power	≥200 W
Non-stable Degree of Output Power	<3%
Power Adjustment(%)	10-100(gradualness)
Focus Facula Diameter	0.1
Central Wavelength	1064
Modulation Frequency	10K-50K Hz(gradualness)
Cooling Type	Water Cooling
Working Temperature	5ºC~40ºC

Advantage Comparison


Item	Laser Cleaning	Chemical Cleaning	Mechanical  Polish	Dry Ice (CO2) Cleaning	Ultrasonic cleaning
Cleaning Method	Laser and non-contact type	Chemical agent, Contact Cleaning	Mechanical/ abrasive paper, contact cleaning	Dry Ice (CO2), non-contact type	Cleaning agent, Contact type
Hurt for workpiece	No damage	With damage	With damage	No damage	No damage
Cleaning Efficiency	High	Low	Low	Medium	Medium
Consumable	Just with Electricity	Chemical cleaning agent	abrasive paper grinding wheel, oilstone	Dry Ice (CO2)	Special Cleaning Agent
Effective	Excellent with high cleanliness	Common, Non-uniform	Common, Non-uniform	Excellent , non-uniform	Excellent , small cleaning area
Accuracy	Precise Control, High Accuracy	Non-control,Lowe Accuracy	Non-control,Common Accuracy	Non-control, Low Accuracy	Can not clear in special place
Safety / Pollution	No Pollution	Environment Pollution	Environment Pollution	No Pollution	No Pollution
Handling by workers	Simple Operation, Handheld / Automation	Complex process,It is with high requirement for operator, must have preventive measure	With much labor cost and must have preventive measure	Simple Operation, Handheld / Automation	Simple Operation, consumables is must
Cost Comparison	High first Investment , No consumables , Low Maintenance Cost	Low first investment, Extremely High Consumables cost	High first Investment, high consumables cost & high labor cost	Medium first Investment, high consumables cost	Low first investment, Medium Consumables cost

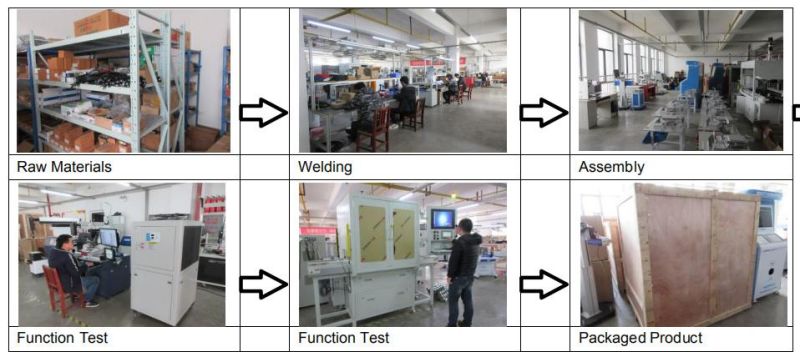

Work Flow:



About us Lable Laser :
    Wuhan Label Laser Science and Technology Co.,Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??

• 20 years of researching and manufacturing experience
• Advanced technology, researching and development group
• More than 4000+ successful cases of marking solution accumulated in domestic and oversea markets
• 100% QC
• Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
• ISO,CE,SGS certified

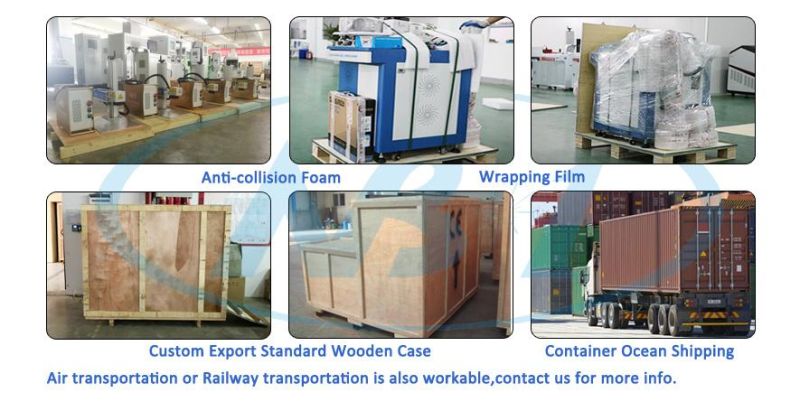

Packing & Shipping:
      - Packing :
          Anti-collision foam + wrapping film+ Export standard wooden case.

      - Shipping:

• Main transportation method: by sea.
• Other Option: by air or railway transportation.

FAQ:

Q: What's laser cleaning marking ? And how laser cleaningg machine works?
A: Laser cleaning is typically a delicate process of creating a depth by removing the surface material, and acheieve the aim of rust removal. The laser cleaning systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.

Q: How to operate the machine? Is training necessary?
A: Laser cleaning machine is Automatic running, easy to install, control and operate.
     Operation manual with pictures will be provided .
     Generally speaking, an operator, who is not familiar with laser cleaning machine can still operate it very well.

Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. Free to maintain if any problems during this period.
     Also we will assist you to solve problems in the future.

Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.

Q: Any consumables for fiber laser cleaning machine?
A: No consumables. It's very economical and cost-effectient.
