• Model NO.：PE-200R
• Weight：150kgs
• Washing Head Weight：2kgs
• Optical Fiber Length：5 Meters (10 Meters Can Be Customized)
• Power Supply：220V 50Hz
• Movement Mode：Push
• Scanning Width：10-80mm
• Focusing Spot Diameter：0.1mm
• Center Wavelength：1064nm
• Transport Package：Wooden Case
• Specification：ISO9000 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：84572000
• Production Capacity：500 Units, Month

Basic Info.

Model NO. PE-200R Weight 150kgs Washing Head Weight 2kgs Optical Fiber Length 5 Meters (10 Meters Can Be Customized) Power Supply 220V 50Hz Movement Mode Push Scanning Width 10-80mm Focusing Spot Diameter 0.1mm Center Wavelength 1064nm Transport Package Wooden Case Specification ISO9000 & CE Trademark Perfect Laser Origin China HS Code 84572000 Production Capacity 500 Units/ Month

Product Description

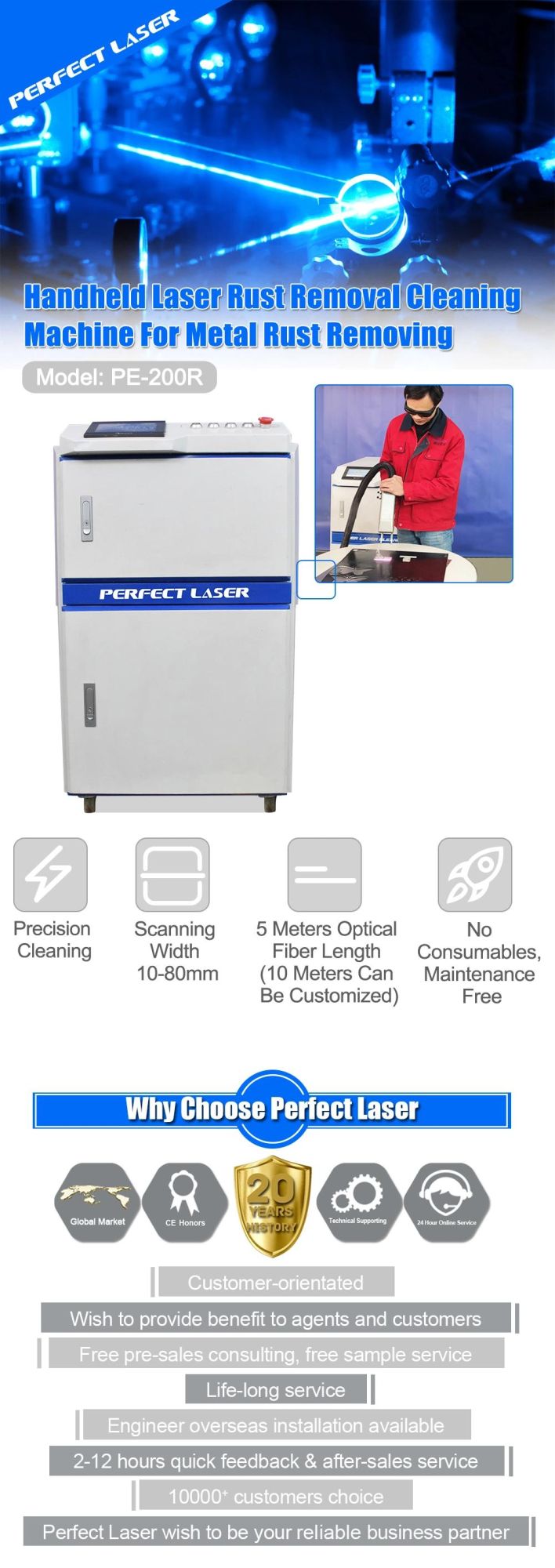

Handheld 100w 200w Industrial Laser Metal Cleaning Derusting Machine
(Model:PE-200R)

Contact:Crystal

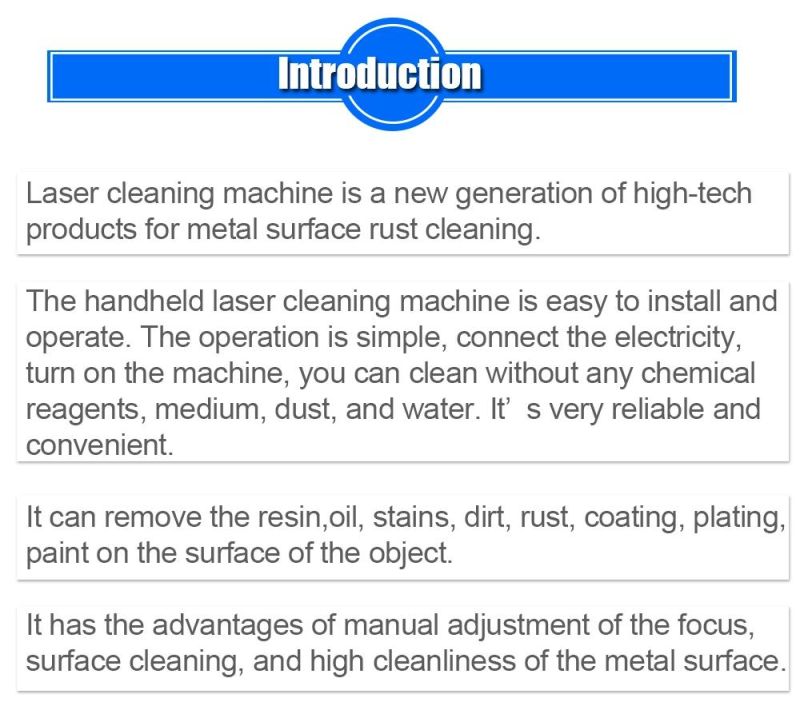

Description of Laser Cleaning Machine:
The handheld laser machine for rust removal is a new generation of high-tech products for metal surface rust cleaning.
The handheld laser machine for rust removal is easy to install and operate. The operation is simple, connect the electricity, turn on the machine, you can clean without any chemical reagents, medium, dust, and water.
The handheld laser machine for rust removal can remove the resin,oil, stains, dirt, rust, coating, plating, paint on the surface of the object.
The handheld laser machine for rust removal has the advantages of manual adjustment of the focus, surface cleaning, and high cleanliness of the metal surface.

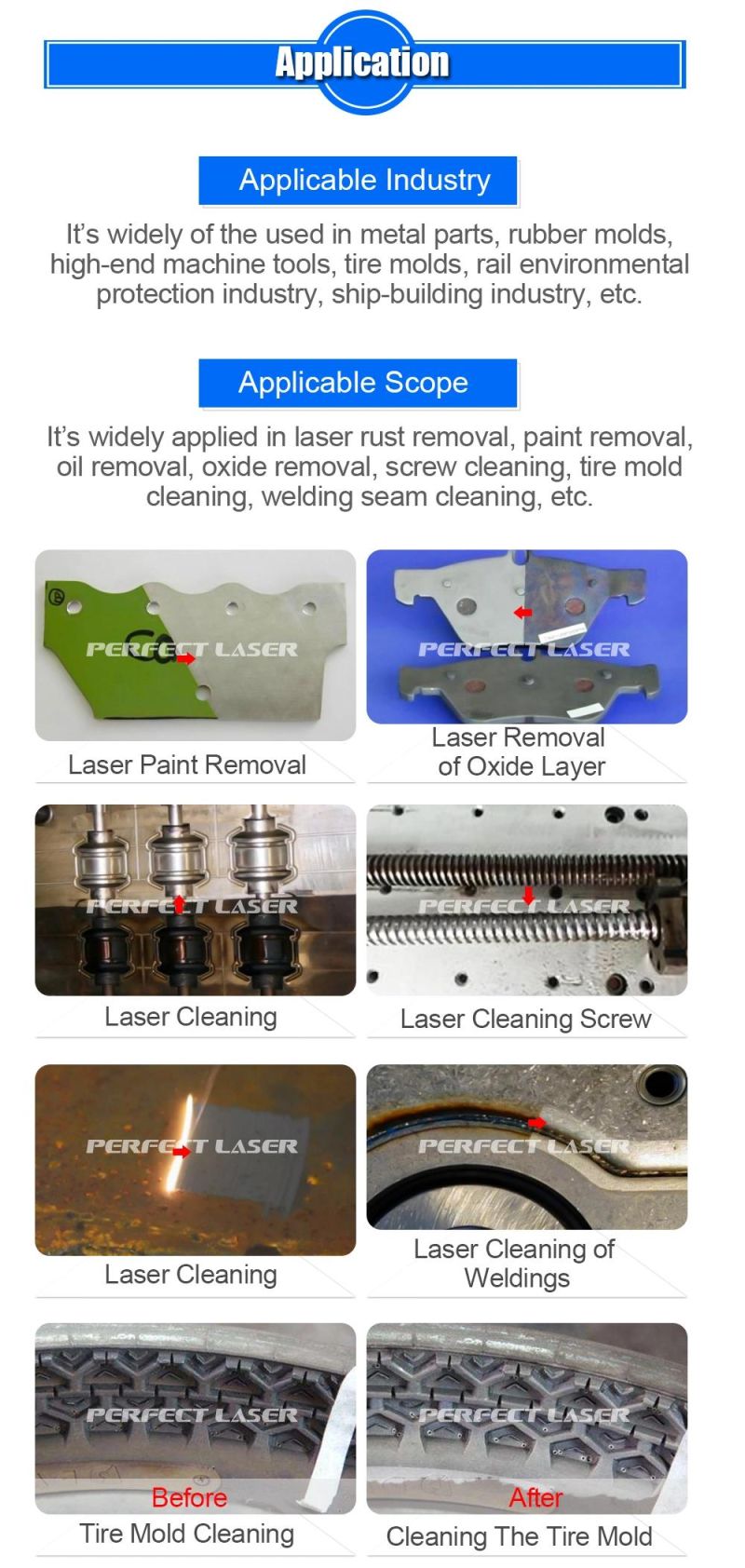

Application of Laser Cleaning Machine:
Applicable Industries:
The laser rust removal laser machine is widely of the used in the ship-building industry, metal parts, rubber molds, high-end machine tools, tire molds, rail environmental protection industry,etc.

Applicable Scope:

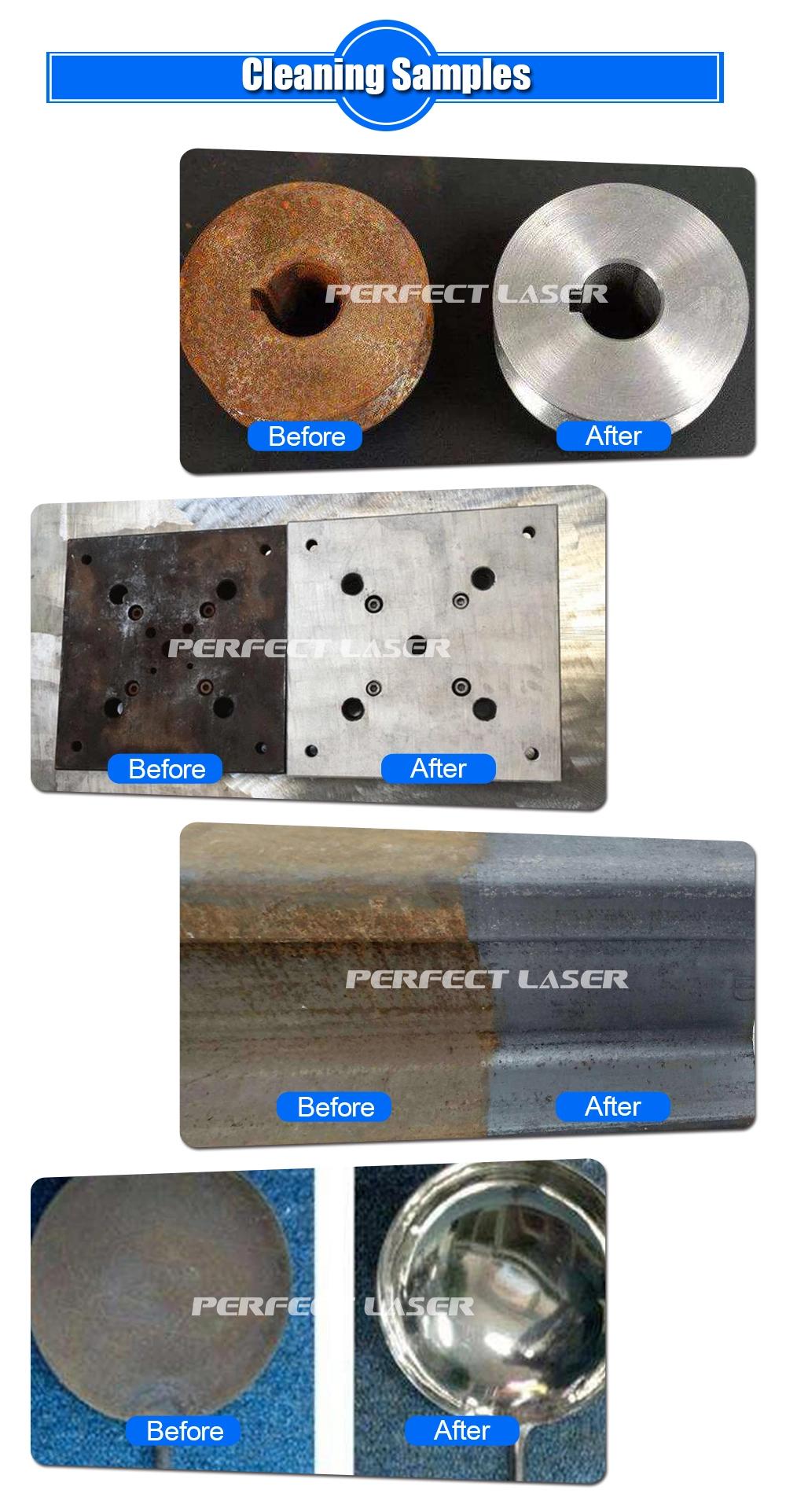

The laser rust removal laser machine is widely applied in laser rust removal, paint removal, oil removal, oxide removal, screw cleaning, tire mold cleaning, welding seam cleaning, etc.

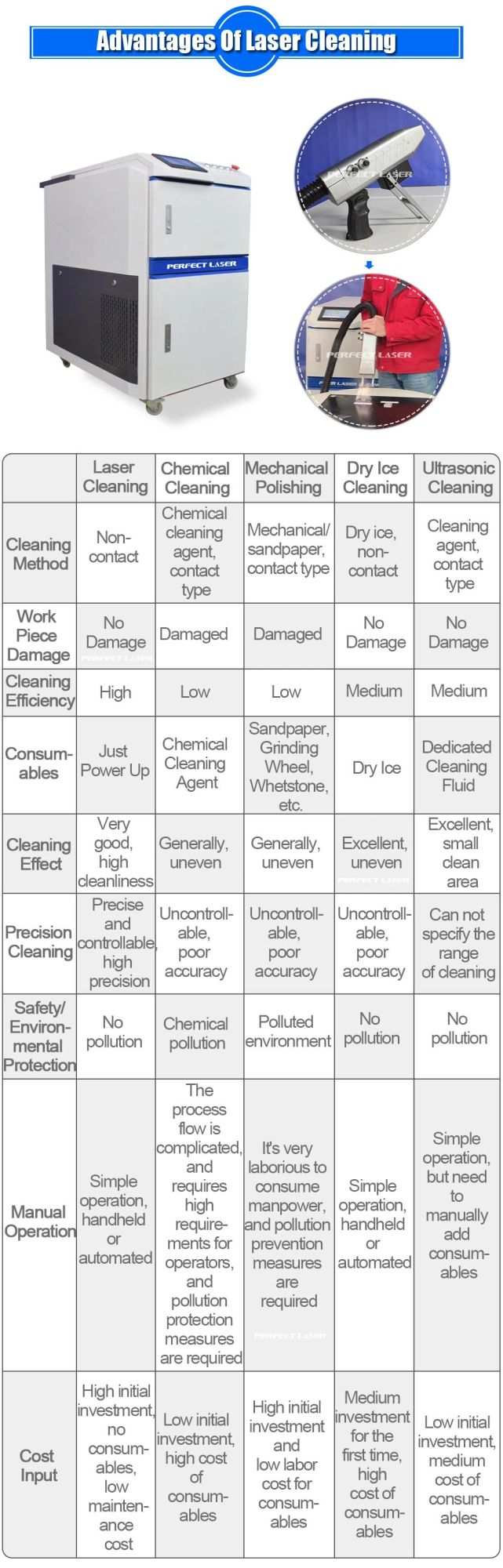

Product Features of Laser Cleaning Machine:
1. The laser machine for rust removal adopts non-contact cleaning and doesn't damage the base of the parts.

2. The diy laser rust removal has the function of precise cleaning, which can achieve precise position, precise size and selective cleaning .
3. There is no need for any chemical cleaning fluid to clean the laser rust removal laser machine, no consumables, safe and environmentally friendly.
4. The operation is simple,diy laser rust removal can be hand-held or cooperated with a robot-arm to realize automatic cleaning.
5. The cleaning efficiency of the laser machine for rust removal is very high, saving time.
The laser rust removal laser machine is stable, maintenance free.

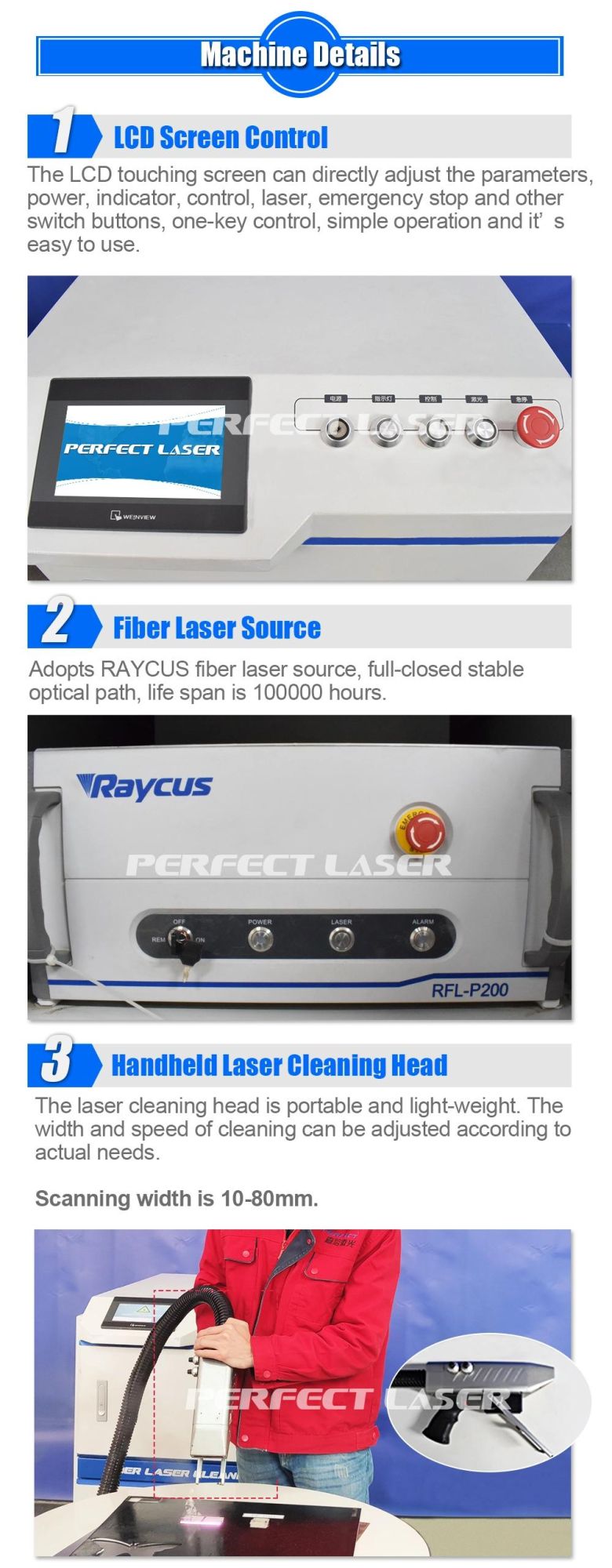

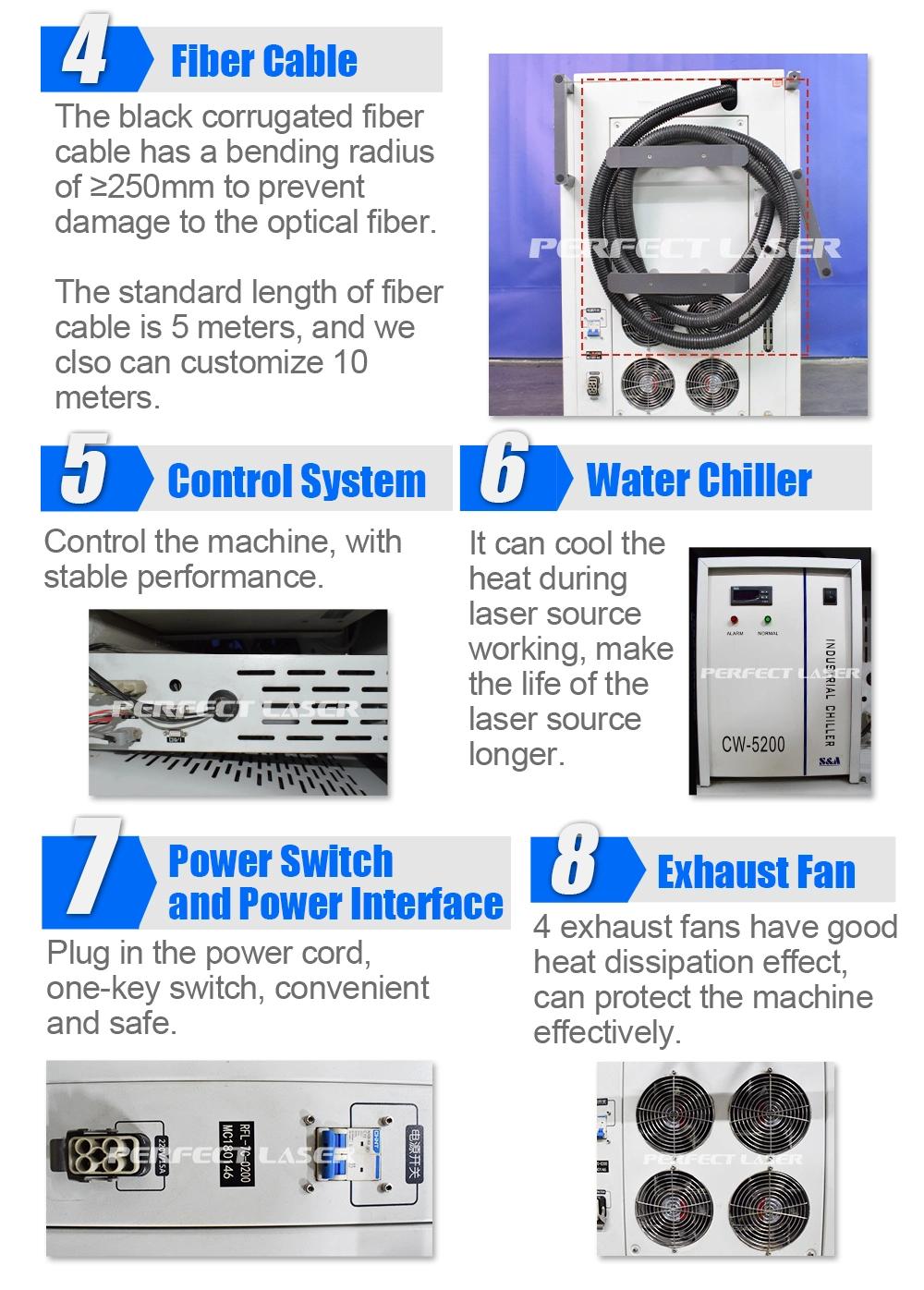

Machine Details of Laser Cleaning Machine:

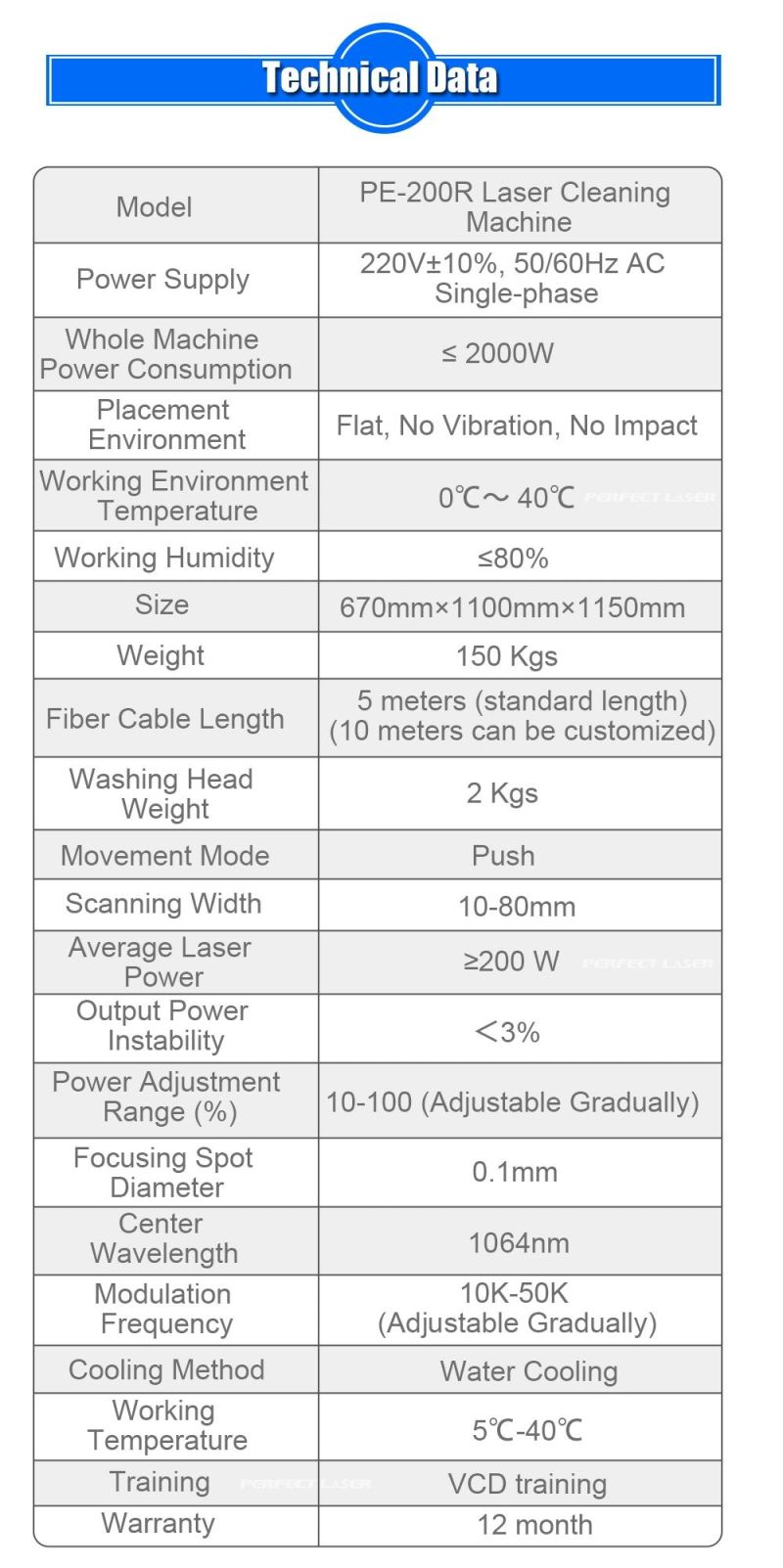

Technical Data of Laser Cleaning Machine:

Model	PE-200R Laser Rust Removal Laser Machine
Power Supply	Voltage Single-phase 220V±10%, 50/60Hz AC
Whole Machine Power Consumption	≤2000W
Placement Environment	Flat, No Vibration, No Impact
Working Temperature	0ºC~40ºC
Working Humidity	≤80%
Size	670mm×1100mm×1150mm
Weight	150 Kgs
Optical Fiber Length	5 Meters (10 Meters Can Be Customized)
Washing Head Weight	2 Kgs
Movement mode	Push
Scanning Width	10-80mm
Average Laser Power	≥200 W
Output Power Instability	<3%
Power Adjustment Range (%)	10-100 (Adjustable Gradually)
Focusing Spot Diameter	0.1mm
Center Wavelength	1064nm
Modulation Frequency	10K-50K (Adjustable Gradually)
Cooling Method	Water Cooling
Working Temperature	5ºC-40ºC
Warranted	12 month
Training	Perfect Laser offer VCD training for the machine. Engineer Oversea training is also available. (Charged additionally)

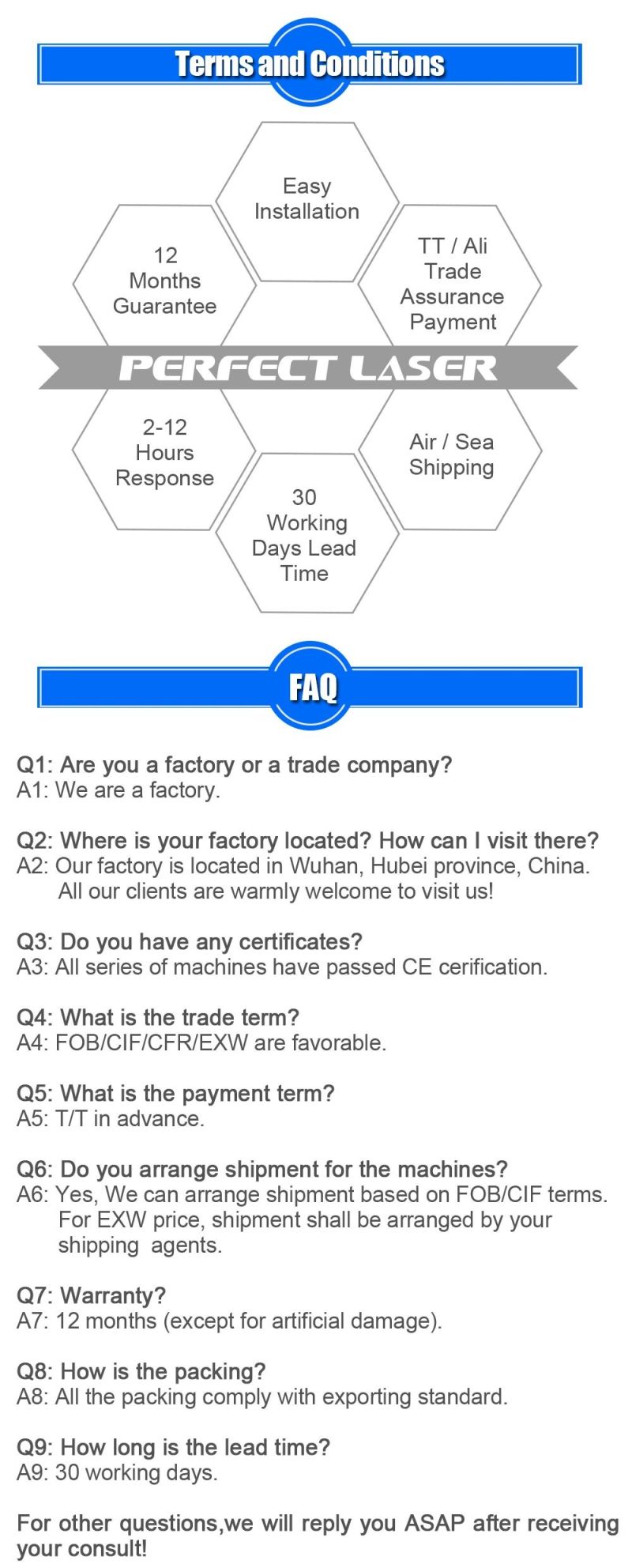

FAQ
Q1.: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q3.: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.



Our Company:
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.




Contact us
Conatct Person:Crystal  / sales department
