• Model NO.：X700D
• Structure Type：Split Structure
• Laser Classification：Free Electron Laser
• Laser Technology：Laser Vapor Cutting
• Working Size：700mm*500mm
• Laser Power：60W
• Adjust Table：Electric
• Working Table：Honeycomb
• Driver：Stepper Motor
• Engraving Speed：0-1000mm,S
• Max Speed：800mm,S
• Color：Blue,White
• CNC or Not：Yes
• Graphic Format：Ai, BMP, Dxf, Dxp, Plt
• Controller System：Ruida
• Control System：DSP
• Repeat Positioning Accuracy：Plusmn;0.02mm
• Engraving/Cutting Thickness：0-20mm
• Drive Mode：Stepper Motor + Synchronous Belt
• Transport Package：1502mm*1007mm*1210mm
• Specification：1.83 Cu. m
• Trademark：REDSAIL
• Origin：China
• HS Code：8456110090
• Production Capacity：200

Basic Info.

Model NO. X700D Structure Type Split Structure Laser Classification Free Electron Laser Laser Technology Laser Vapor Cutting Working Size 700mm*500mm Laser Power 60W Adjust Table Electric Working Table Honeycomb Driver Stepper Motor Engraving Speed 0-1000mm/S Max Speed 800mm/S Color Blue/White CNC or Not Yes Graphic Format Ai, BMP, Dxf, Dxp, Plt Controller System Ruida Control System DSP Repeat Positioning Accuracy Plusmn;0.02mm Engraving/Cutting Thickness 0-20mm Drive Mode Stepper Motor + Synchronous Belt Transport Package 1502mm*1007mm*1210mm Specification 1.83 Cu. m Trademark REDSAIL Origin China HS Code 8456110090 Production Capacity 200

Product Description

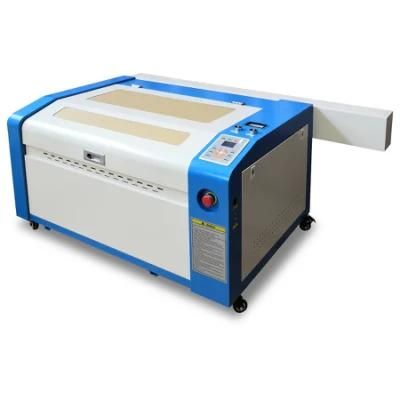

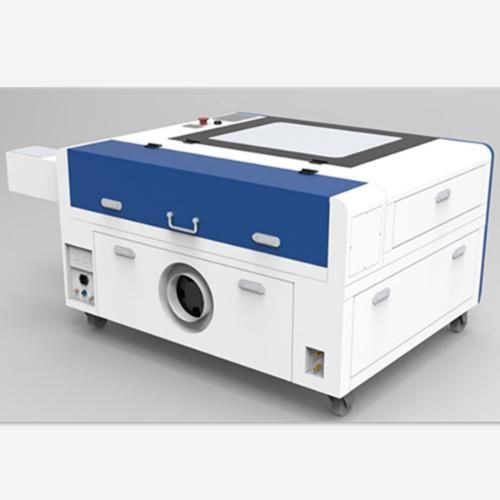

Co2 Laser Cutting Machine 700mm*500mm (28''x20'') With CE FDA

Upgraded configuration (Included) Motorized Up/Down Table RUIDA controller(RDC5121 board) Dia 20mm mirrors, Dia 18mm lens (50.8mm) Customized laser head, beautiful and unique Screw type lifting Red-dot positioning with beam mirror

Applicable Industry

 This machine is suitable to woodworking, textile cutting, industrial prototyping, industrial marking, signmaking,medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens,door pulls,cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes,light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking,photo albums, jewelry, crafts, Italian charms.

Model X700D Working Area 700mm*500mm (28''x20'') Laser Power 60w Laser Tube Type CO2 glass sealed laser tube Controller System RUIDA(RDC5121 board) Graphic Format Supported HPGL, BMP, GIF, JPG, JPEG, DXF, DST, PLT etc. Cooling system Water Pump(RY-3500), Water chiller is option Blowing, flame retardant Air pump(ACO-328) Working Platform Honeycomb(Double platform is option) Adjust Table 200mm Motorized up/down table (AC Motor) Red-dot Positioning Add beam mirror Drive type Stepper Motor Max speed 1000mm/s Resolution 1000DPI Location precision <0.01mm PC interface USB 2.0 and USB Disk Voltage 110V~240V/50Hz~60Hz Warranty 12months ( 10 months for laser tube, 3 months mirrors)

Standard Accessories



• User Manual (CD)
• Water Pump
• Air exhaust fan (installed)
• Air Pump
• Communication cable
• 3 Reflect optics (installed)
• 1 Focus optics (installed)
• 1 Laser tube
• Other tools

Option Part

CW-3000 chiller                                                               +$100USD CW-5000 chiller                                                               +$410USD Rotary                                                                              +$200USD Double Platform(Honeycomb+Blade)                              +$35USD Ground wire                                                                     +$50USD

About Material

Advertising industry: trophies, authorization card, dual color plates, acrylic etc., Office Industry: menus, recipes, tender, invitations, personalized business cards etc., Packaging Industry: wine box, tea packing box etc., Gift Industry: glass cup, bamboo etc., crafts Processing. Decoration Industry: grilles, tiles etc., engraving and cutting. Printing Industry: rubber, printed version. (1) Cutting: acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA,PE,PP,composite material,PVC, etc.  (2) Engraving:  acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal,metal coating,paper,leather,rubber,fabric, cloth,plastic ,PVC, etc.



Sample

FAQ

Q: Do I need two laser machines to engrave and cut separately? A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.  Q: Do the laser machines need to be connected to a laptop or desktop computer to work? A: Yes, either is ok. It supports Windows 10, Windows 2000, Windows XP, Win 7, and other operating systems Q: What kind of graphic format does it support?  A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc. Q: How to distinguish laser tubes with different powers and applications?  A: 1. Laser tube length (relatively speaking, the longer, the bigger) 2. Laser tube diameter (relatively speaking, the thicker, the bigger) 3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 60W.  Q: Is it better to increase blow to improve laser processing performance? A: For some thick materials, it works. But, when carving some other materials, you need to blow less.  Q: How long will it take to learn to operate a laser machine?  A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.  Q: Is a laser machine in operation harmful to our bodies?  A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
