150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile

Jinan Starma Intelligent Tech Co., Ltd.
  • After-sales Service：All Life
  • Warranty：1 Year
  • Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Nonmetal

Base Info

  • Structure Type：Desktop
  • Laser Classification：Free Electron Laser
  • Laser Technology：Laser Control Fault Cutting
  • Name：CO2 Laser Cutting Machine
  • Function：Engraving and Cutting
  • Laser Tube Brand：Reci, Weiju, Efr
  • Control System：Rd6442s,Rd6445s
  • Motor and Driver：Stepper Motor
  • Cooling：Water Chiller Cw3000 Cw5000 Cw5200
  • Table：Blade Table or Honeycomb Table
  • Guide Way：Taiwan Hiwin Square Rails
  • Point：Red Point
  • Lens：USA Imported
  • Exhaust Fan：750W 550W 1000W
  • Other Device：CCD+Auto Feeding
  • Machine Control：DSP Control
  • Min. Shaping Character：2.0mm, English:1.0mm
  • Tube Power：80W 90W 100W 130W 150W 180W
  • Transport Package：Starndard Export Plywood Case
  • Specification：1300x2500mm
  • Trademark：STARMACNC
  • Origin：China
  • HS Code：8456110090
  • Production Capacity：100 Sets Per Month

Description

SM-B1325Engraving Area (mm)W*L1300*2500mmLaser tube power80W 90W 100W 130W 150W 180WLaser TypeCO2 sealed laser tube RECI brandControl systemRD6442S/Upgrade RD6445SEngraving Speed0-64000mm/minCutting Speed0-36000mm/minResetting positioning accuracy≤±0.01mmLaser Output1-100%software settingCooling modeCirculating-water-cooling and protection systemMachine control and driveSpeedy DSP controlling, stepper motorCutting PlatformKnife-strip platformMin. Shaping characterCharacter 2.0mm×2.0mm, English 1.0mm×1.0mmPower SupplyAC220V 50HzOperating systemDSP off-line control systemDictate format*. Plt, *. Dst, *. Dxf, *. BMP, *. Dwg, *. Al, *las etc. Operating Temperature5°C-40°COperating Humidity5-95%(Free of Condensed Water)Compatible SoftwareCorelDraw, AutoCAD transmit directlyOptional Spare PartsRotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down tableConsumable Spare PartsLaser Tube and laser lens600*400mm, 600*900mm, 1300*900mm, 1300*1000mm, 1300*1300mm,
1300*1800mm, 1300*2500mm, 1600*1000mm, 1600*2000mm,
1600*3000mm, 1800*1000mm and other customized
Other Specifications: Laser typeCO2 laser tube, RECI brand (Yongli and Weiju can option)Power supply110V / 220V/ 50-60HzMin. Shaping characterEnglish 1 X 1 mmGraphic format supportedBMP, PLT, DST, DXF, AISoftware supportedCorelDraw, PhotoShop, AutoCAD, TAJIMALocation precision: Less than 0.02mmApplicable material (Nonmetal)Acrylic, Plastic, Plank, ABS, Wood, Plywood, Bamboo, Paper, Organic glass, MDF, PVC, Rubber, Density board, Cloth, Leather, Derma, Corfam, Textile, Chemical leather, etc.
Engraving and Cutting Nometal Materials(Only for reference) Laser tube Power50W60W80W100W130W150W280WWood3mm5mm6mm8mm12mm15mm24mmMDF1mm2mm2.5mm4mm5mm7mm17mmPlywood3mm5mm6mm8mm12mm15mm24mmPlastic2mm4mm5mm8mm10mm15mm24mmRubber1mm1.5mm2mm3mm4mm5mm10mmAcrylic4mm6mm8mm10mm15mm17mm26mm

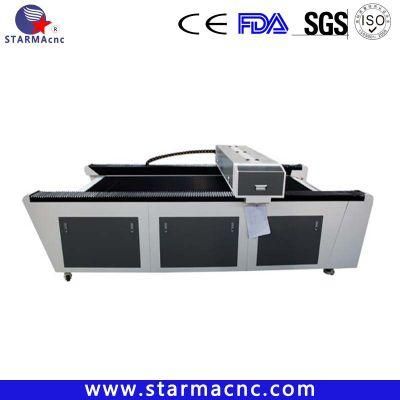

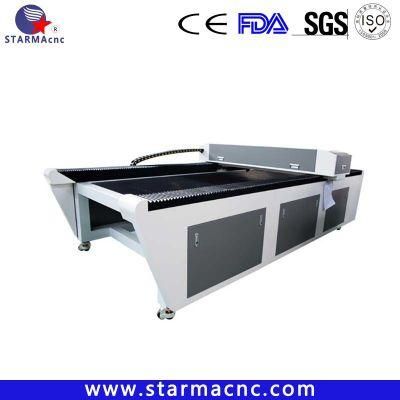

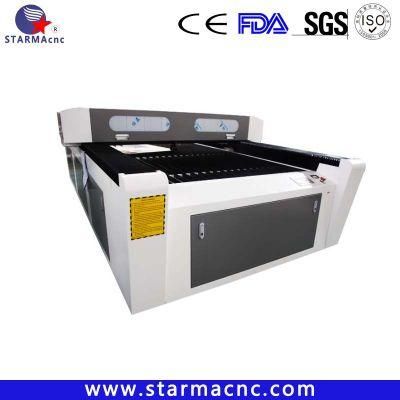

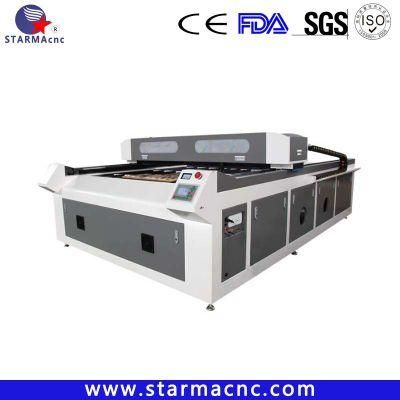

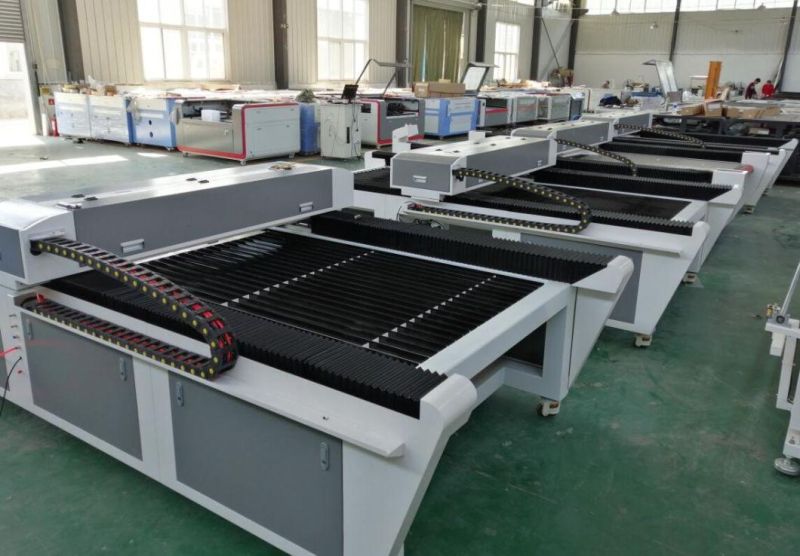

Machine picture in workshop and parts:
150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile
150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile

150W Auto Feeding co2 laser cutter 1325 for Leather Fabric Textile

150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile
150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile

Guarantee:
1.12 months guarantee of the whole machine
2. Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge
4. We will provide the consumable parts at an agency price when you need replacement
5. Machine has been adjusted and tested before delivery
6. Our staff can be sent to your company to install or adjust if necessary

Payment terms:
T/T 30% payment for deposit, after the machine finished, we will take the testing videos for you to check the machine, after you satisfied the machine you pay the left 70% payment. Then we will delivery the machine.

After-sale service:
1.24hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life

Packing and delivery:

DeliveryWithin 7 working days for production, we will arrange delivery after received the total paymentPackingFirstly, Packed the machine with plastic sheet for clearing and damp proofing.
Secondly, Then put the machine in the plywood case for safety and clashing.
Thirdly, Transport the plywood case into the container. 150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile

150W Auto Feeding co2 laser cutter 1325 for Leather Fabric Textile

Company(OEM)production:

We are located in jinan City of China, a manufacturer of CNC router, CNC laser and plasma cutting machines.

STARMAcnc has over 58 employees and a factory with more than 10000 square meters. We has our own design and development department. At the same time created "STARMAcnc" brand.

Each product is strictly examined according to ISO9001 (QCS) and ISO14001 (EMS) standards before it is sent out of our factory. And up to CE &FDA &SGS certificate and win Alibaba good faith enterprise. STARMA persist on the mission of "supplying our customers with the best CNC&Laser equipments and solutions".

In us, TOP QUALITY&FIRST-RATE SERVICE IS OUR SOUL AND CULTURE! BELIEVE US AND CHOOSE US, YOU ARE RIGHT!

150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile

150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile
150W Auto Feeding CO2 Laser Cutter 1325 for Leather Fabric Textile

FAQ
Question 1: How long about the machine's guarantee?
Answer: 1 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or whatsapp, wechat around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Question 6: How long of the delivery time?
For standard machines, it would be 7-10 workdays; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 25 workdays.
Question 7: I know nothing about this machine, what kind of machine I should choose?
Very easy to choose. Just tell us what do you want to process by laser machine, then let us give you perfect solutions and suggestions.
1)Tell me your materials.
2)The Max size of your material: ___mm*___mm
3)You want to engrave or cut? If cut, what's the MAX cutting thickness?
Question 8: Are you factory or trade? Where are you located?
We are professional manufacture since 2010. And we are located in Fujia industril park, No 10, Licheng district, jinan city, shandong, China.

Warmly welcome you vist us any time! Hope build long time business with you and best service best price give you!
