• Model NO.：KJG-150300DT with 800W
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01mm
• Performance Classification：High-End CNC Machine Tools
• Transport Package：Wooden Case
• Specification：3950x1600x1700
• Trademark：AccurL
• Origin：China Ma′anshan
• HS Code：84624119
• Production Capacity：50

Basic Info.

Model NO. KJG-150300DT with 800W Control Method Closed-Loop Control Numerical Control CNC/Mnc Processing Precision 0.01mm Performance Classification High-End CNC Machine Tools Transport Package Wooden Case Specification 3950x1600x1700 Trademark AccurL Origin China Ma′anshan HS Code 84624119 Production Capacity 50

Product Description

Product Application

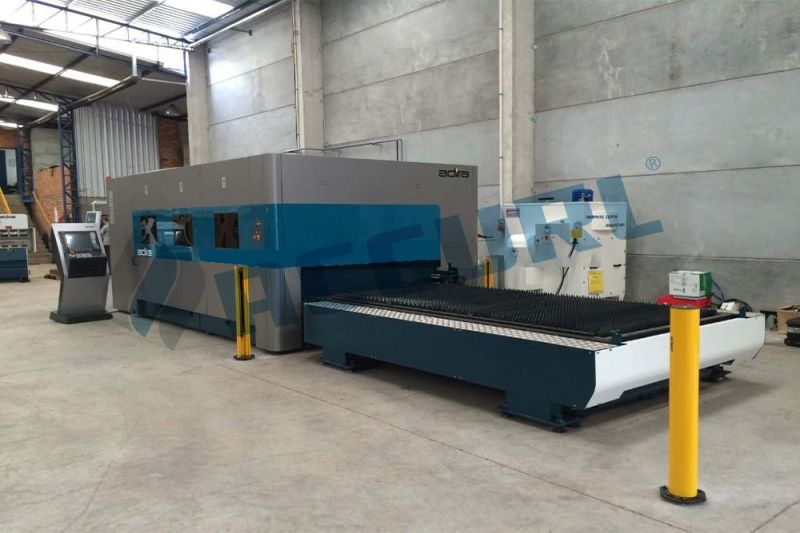

The Accurl@ Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.

• Manufactured by people who use their own machines.

• The resonator comes with a 100,000 hour warranty from the manufacturer (IPG)

• Higher cutting speeds possible

• Dual interchangeable tables allow for faster loading and unloading, reducing downtime

• Laser wavelength is one-tenth of a CO2 laser

• Reduction in cutting variables or tribal knowledge

• Fiber Laser is extremely efficient, equates to very low power consumption

• Low cost of operation, energy cost reduced, no laser gases requied to produce beam

• High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more)

• Laser beam transmitted through a fiber optic.cable rather than with mirrors and channel tubing resulting in negligible power loss.

• Created and tested in a 100,000 sq ft Research and Development facility operating 9 metal cutting fiber Lasers, cutting 24/7.


Main Features


•The ACCURL@ Fiber Lasers bring a cost exective, low-maintenance, low operating cost and environ-mentally friendly solution to your organization. Our aber laser machines provide quality cutting and tolerances with minimal productivity loss between jobs, equating to a higher re turn on investment.


• Acceleration speed: 19,6 m/s2 (2G).

• Maximum simultaneous positioning speed: 160m/min.

• Precision: + - 0.05 mm.

• Energy efficiency: greatly reduced power consumption.

• Excellent cutting quality for fine thic kness and medium thickness sheet metals.

• IPG Resonator. Power output from 1 kw to 6 kw .

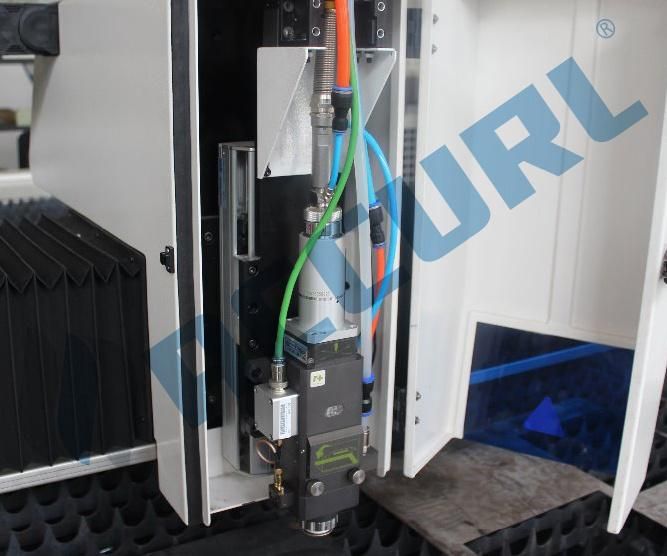

• Precitec light cutter cutting head with po wer output up to 2kw.

• Precitec HP cutting head for po wer output of more than 2kw.

• Fully enclosed and cabinned to ensur e máximum operator protection.

• Effective high to low pressure gas exchange system.

• Capacitative Sensor, high pressure cutting head.

• TCI Cutting parameter tables.

• Pre-cut film protector.

• Automatic mechanized Nesting power output control function (edges, start-ups).

• Automatic time and unit cost calculation function.

• Network connection from external.

• Automatic table exchanger (included in series models).

• Smoke extraction (included in series models).

• 3 point reference sensor (sheet metal rotation detector).

• Piercing Sensor.

• Collection of work pieces and trimmings.

• Dual proportional valve control system for different gas pressures and special system for high pressure cutting.
