• Model NO.：PEDK-130250M
• Structure Type：Desktop
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Guarantee：1 Year
• Transport Package：Exporting Standard Package
• Specification：CE, ISO9001
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：5, 00 Sets,Year

Basic Info.

Model NO. PEDK-130250M Structure Type Desktop Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Guarantee 1 Year Transport Package Exporting Standard Package Specification CE, ISO9001 Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 5, 00 Sets/Year

Product Description

   180W/260W/300W Mix CO2 Laser Cutting Machine for Both Metal and Non-Metal Materials
(Model:PEDK-130250M)

Product Introduction:
Mixed Co2 steel sheet cutter is a newly super technology, mainly used to cut both metal and non-metal machine. The cutting thickness of this industrial laser cutter can reach 1-2mm stainless steel, 1-3mm carbon steel, 20-30mm acrylic, 10-20mm wood, 0-10mm MDF.
The steel sheet cutter is a so wonderful choice for user who has demand to cut 1-2mm thin metal material and thick non-metal materials by own this industrial laser cutter. One machine can fulfill all your demand. Saving much cost. It also can be called industrial laser cutter,MDF laser cut,acrylic cutter,steel sheet cutter,metal plate cutter.
Applications:
This laser cutter and engraver is widely suitable for cutting both metallic and non-metallic materials, such as: 1-2mm stainless steel, 1-3mm carbon steel, 1-28mm acrylic, PVC, 1-10mm MDF, 1-15mm wood and bamboo products, etc.
The laser cutter and engraver is widely used in advertising field, signage marking, electronics, mechanical parts, furniture, automotive, medical, instrument, saw blades and many other metal and non-metal industries.


 Main Features:
1)  Mix Cutting: It supports both Metal and Non-Metal Cutting, can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF engraving and cutting.

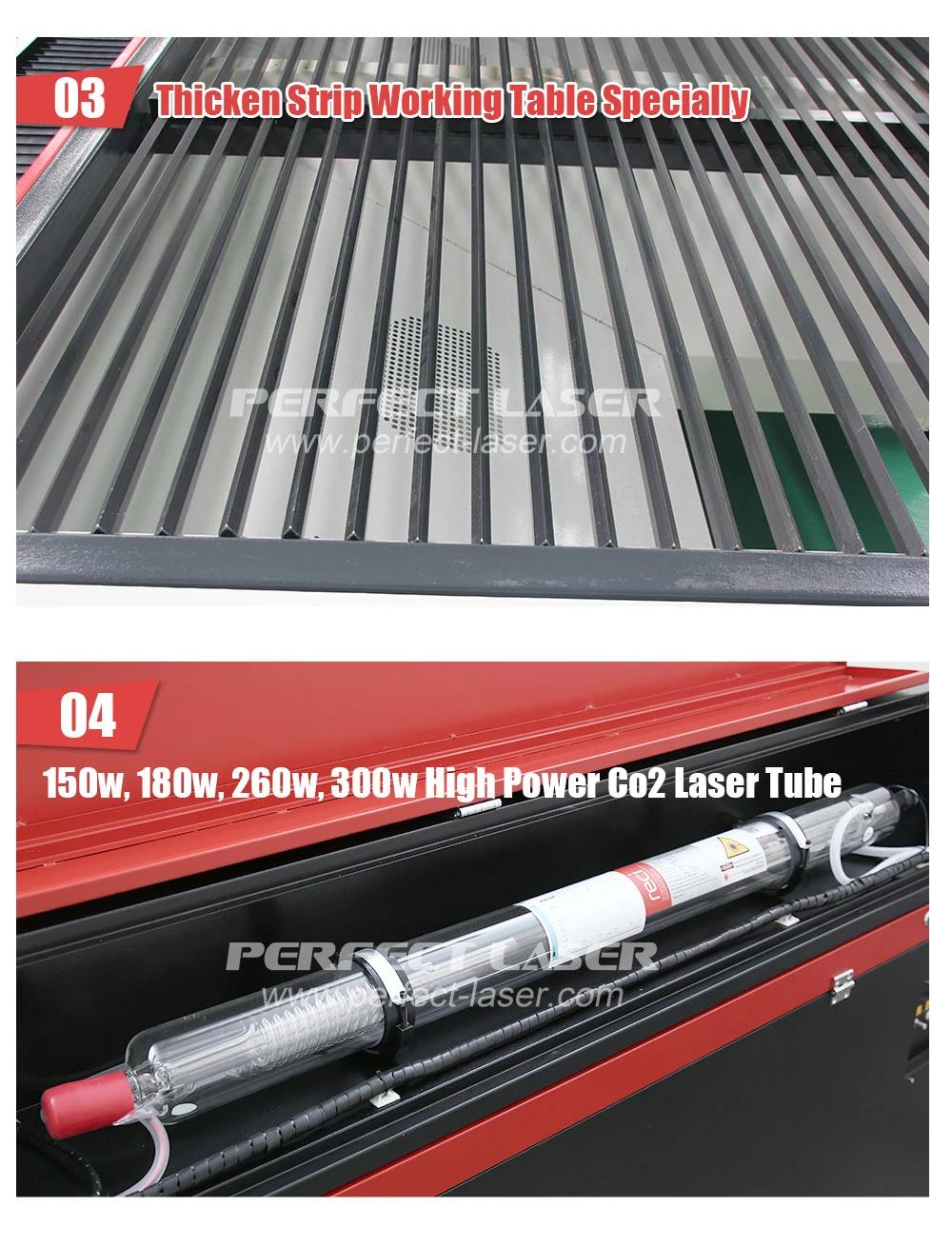

2) Adopt 160w - 180w or 260W Laser Tube, high power, 10000 hours long life span.
3) Adopt Japan Imported Servo Motor and Ball Screw Transmission Rod, with fast speed and high precision.

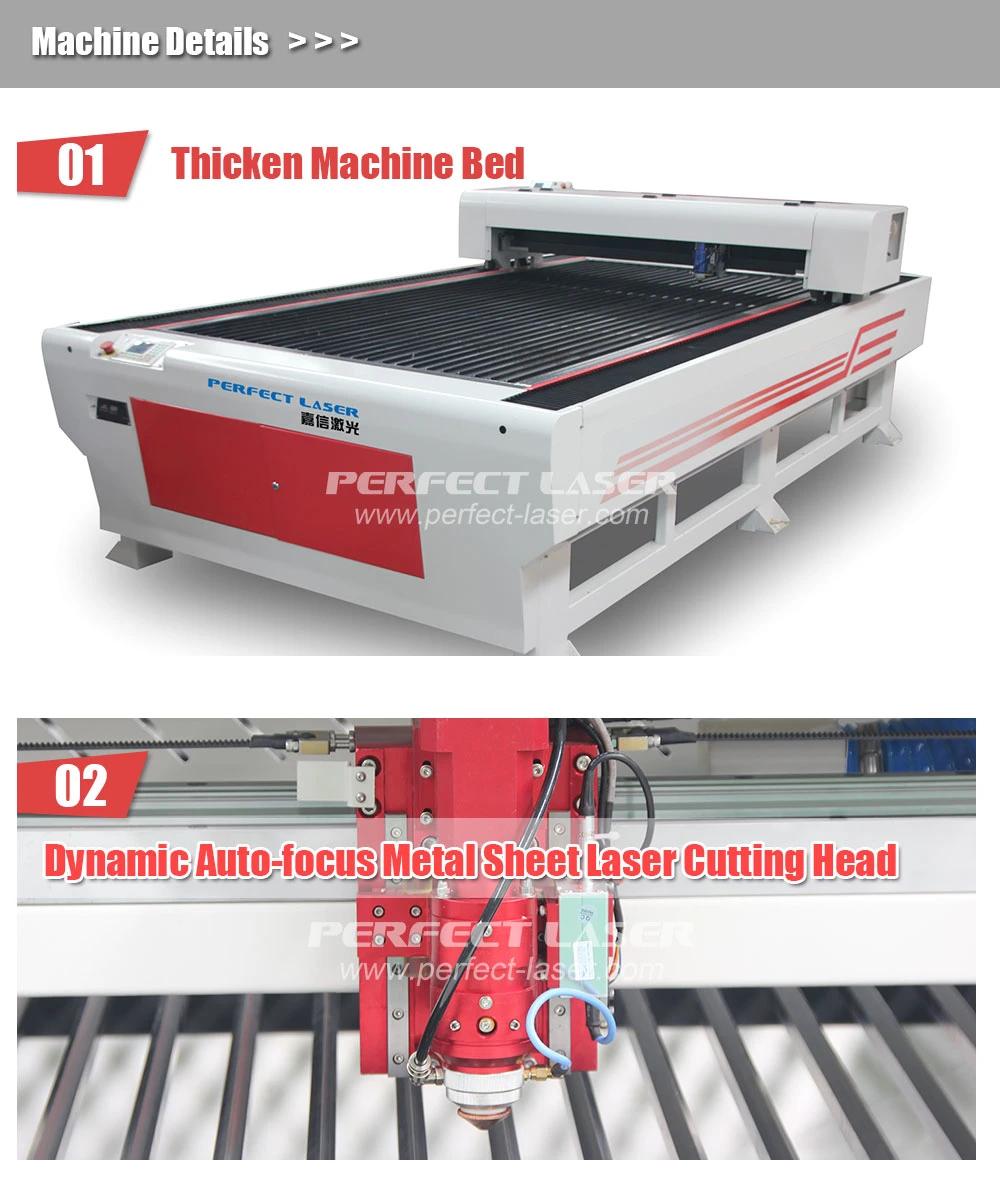

4) Dynamic Auto-Focusing Metal Sheet Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.

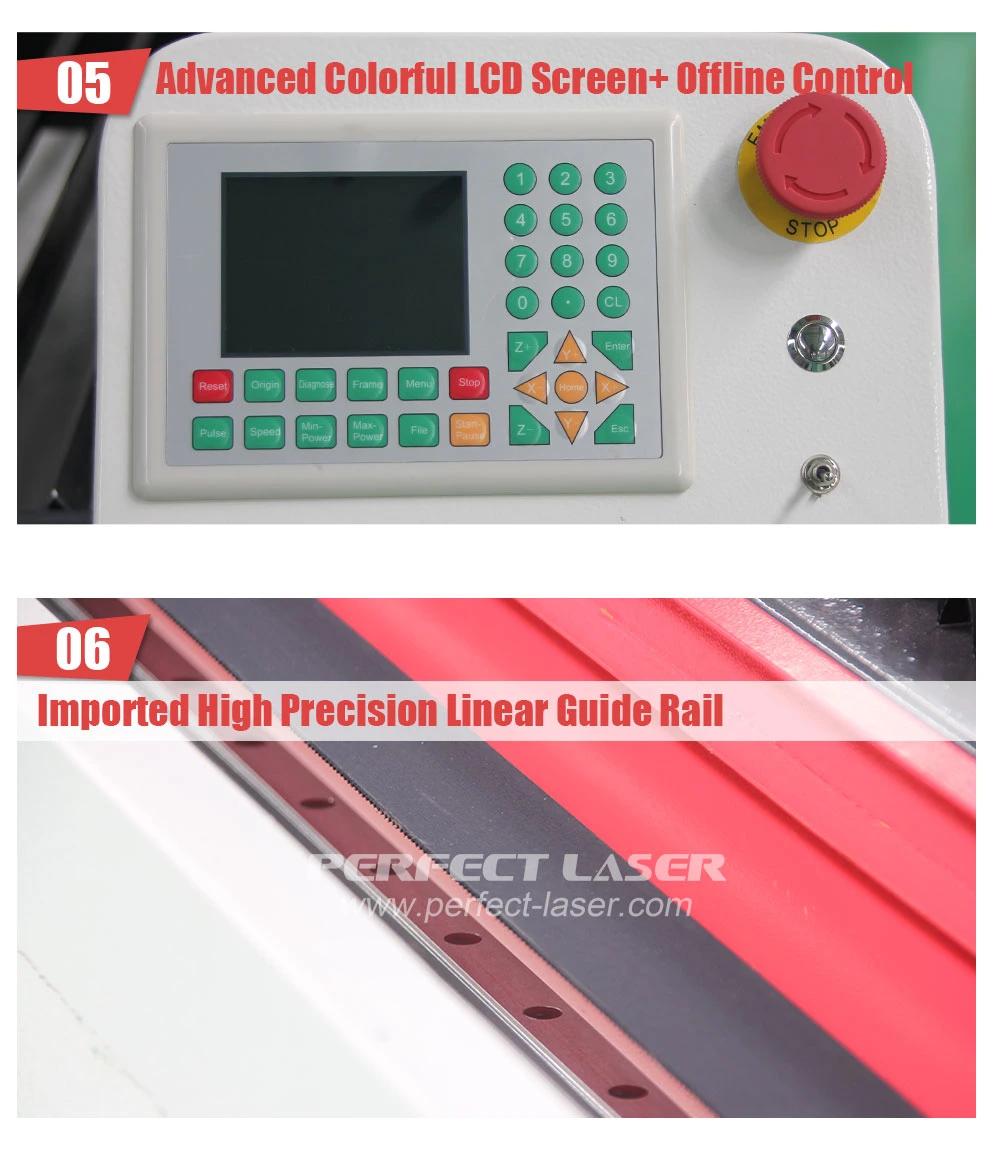

5) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
6) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
7)  Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
8)  Professional Strip work table, which meet the needs of diversified laser procession;
9)  Water Cooling System with Alarm Protection, adopt CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
10)  Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, makes high efficiency and steady.
11)  High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
12) Red Light Pointer realizes the exact position without laser.
13) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
