• Model NO.：MT-C,V
• Rotary Clamp Diameter：20-300mm
• Cutting Precision：0-36000mm,Min
• Cutting Depth：≤0.3mm
• Beam Quality：<1.2m2
• Laser Pulse Frequency：20-200kHz
• Gross Power：<1250W
• Min.Line Width：0.15-0.3mm
• Location Precision：0.015mm
• Power Source：AC110V,220V± 10%, 50,60Hz
• Safety Protection Class：IP54
• Working Environment：Clean, Free of Dust
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-C/V Rotary Clamp Diameter 20-300mm Cutting Precision 0-36000mm/Min Cutting Depth ≤0.3mm Beam Quality <1.2m2 Laser Pulse Frequency 20-200kHz Gross Power <1250W Min.Line Width 0.15-0.3mm Location Precision 0.015mm Power Source AC110V/220V± 10%, 50/60Hz Safety Protection Class IP54 Working Environment Clean, Free of Dust Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 200sets/Month

Product Description

Product Description
In order to meet the demands of irregular and this type processing, the series uses top DSP technology and the world-leading CCD automatic pickup positioning figure identification system and large size visual identity system. The system is fit for automatic positioning cutting and large-area cutting with the maximum cutting area being 1800mm*1300mm. It can be widely applied for label cutting, computerized embroidery label cutting, large digital print positioning cutting and engraving and other nonmetal material .



Parameters

Laser Type	CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power	80W/100W/130W/150W (Optional )
Wavelength	10.6um
Visual Identity System	2000W Pixel SLR Camera or HD projector
CCD Resolution Ratio	3200000pixels
Focusing Method	Automatic Adjust Focus Distance
Cutting Precision	0-36000mm/min
Marking Depth	≤0.3mm
Marking Speed	0-64000mm/min
Focal Length	38.1,50.8,63.5,76.2,101.6mm
Cooling Mode	Water Cooling and Protection System
Location Precision	0.015mm
Controlling Formats Supported	DSP High Speed Controller
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-40ºC
Warranty	1 Year
Beam Quality	<1.2M2
Laser Pulse Frequency	20-200Khz
Humidity	5% to 85% (No Condensed )
Gross Power	<1250W
Min.Line Width	0.15-0.3mm
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	1600*1000mm(Optional)
Working Environment	Clean, Free of Dust
Safety Protection Class	Ip54
Laser Generator Safety Class	IV

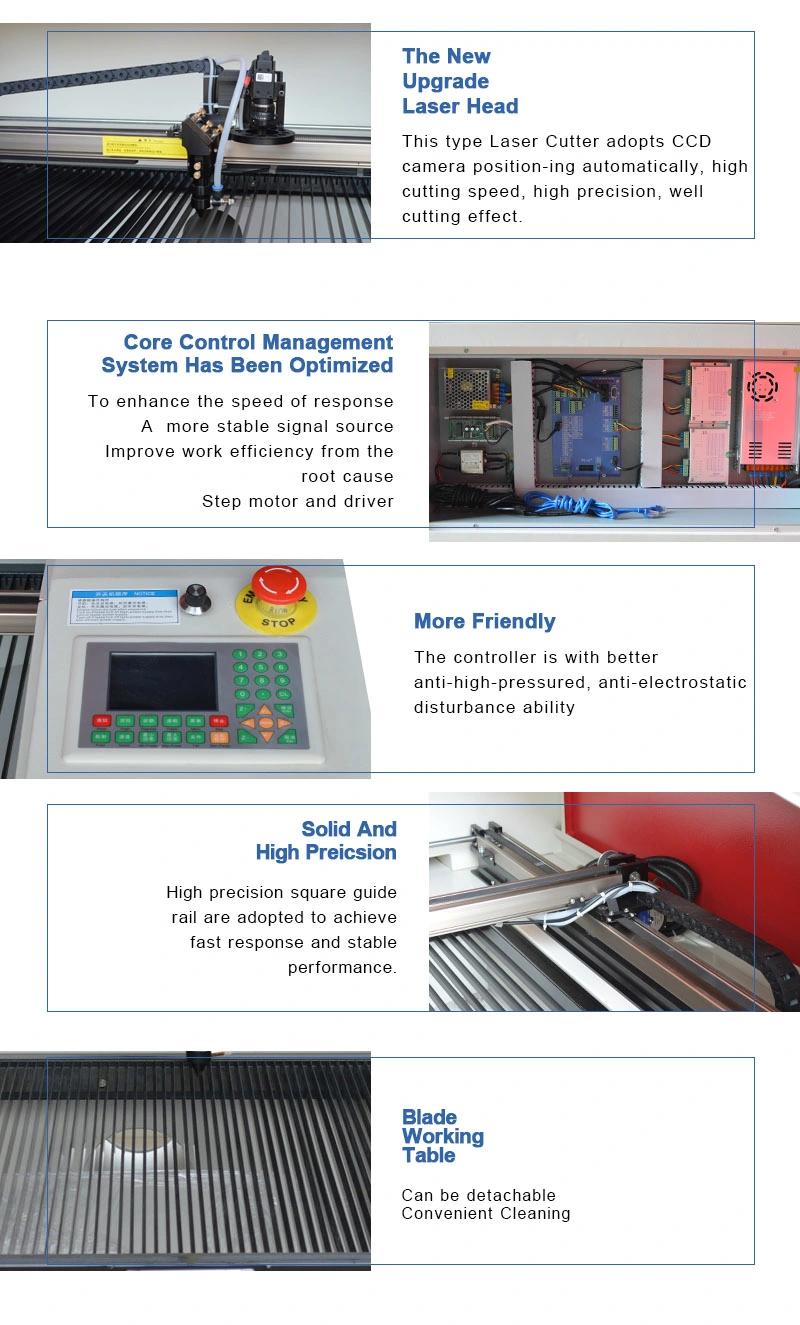

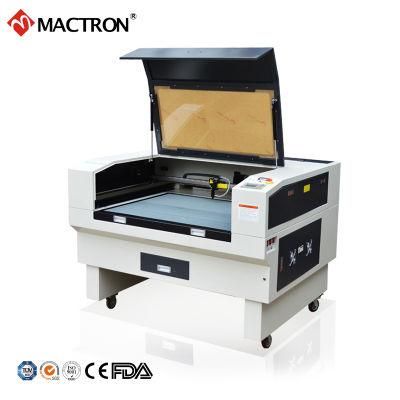

Product Show

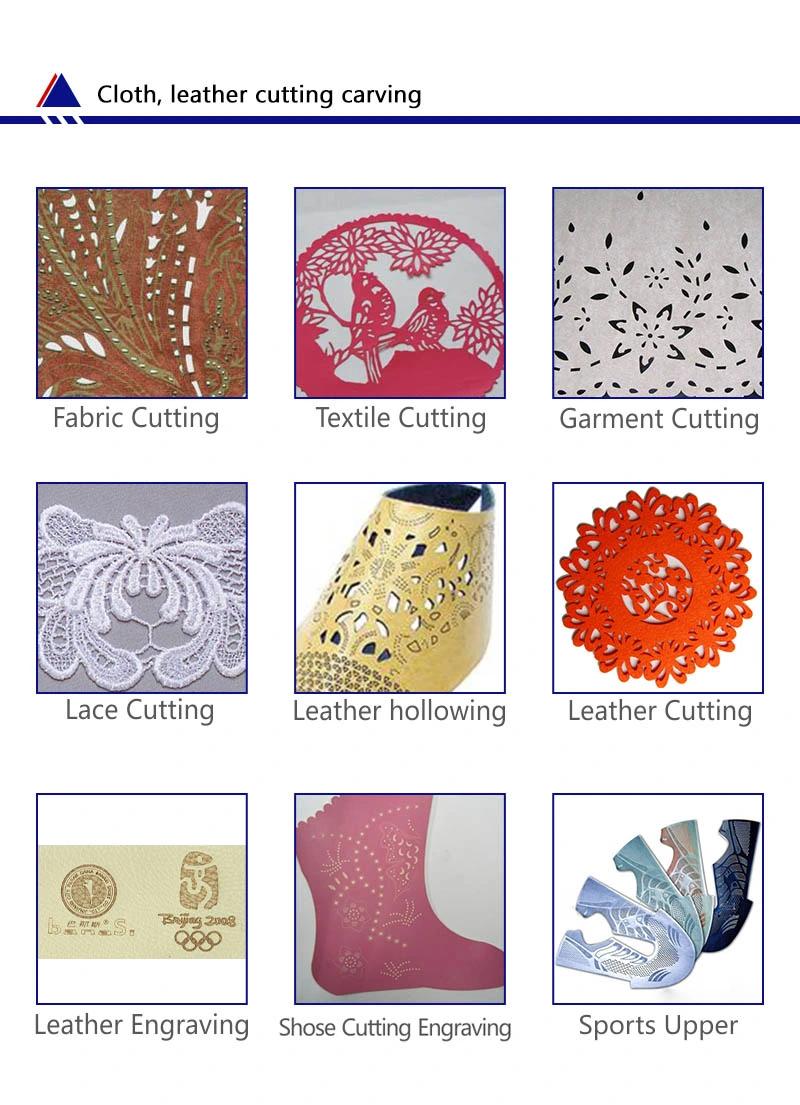

Product Sample

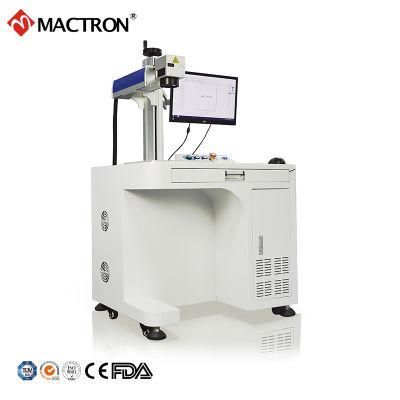

Other Products

Production Process


Packaging & Shipping


Company Information
Mactron Technology's business tenet is "Do Honest Business ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"
Dongguan Mactron Technology Co., Ltd (Mactron Technology Co., Limited) mainly manufactures and sells products like Fiber Laser Marking Machine, UV Laser Marking Machine , Co2 Laser Marking Machine, Laser Printer, Co2 laser cutting and Engraving Machine, Fiber Laser Cutting Machine, Laser Flat Bed, Customized Laser Equipment and a full laser spare parts. The laser equipment system is widely used in many fields, including textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.
