• Model NO.：1390
• Structure Type：Desktop
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Fusion Cutting
• Transport Package：Plywood Case
• Specification：working area: 1300*900mm
• Trademark：NONE
• Origin：China
• HS Code：8456110090
• Production Capacity：50units,Month

Basic Info.

Model NO. 1390 Structure Type Desktop Laser Classification Gaseous Laser Laser Technology Laser Fusion Cutting Transport Package Plywood Case Specification working area: 1300*900mm Trademark NONE Origin China HS Code 8456110090 Production Capacity 50units/Month

Product Description

Introduction:

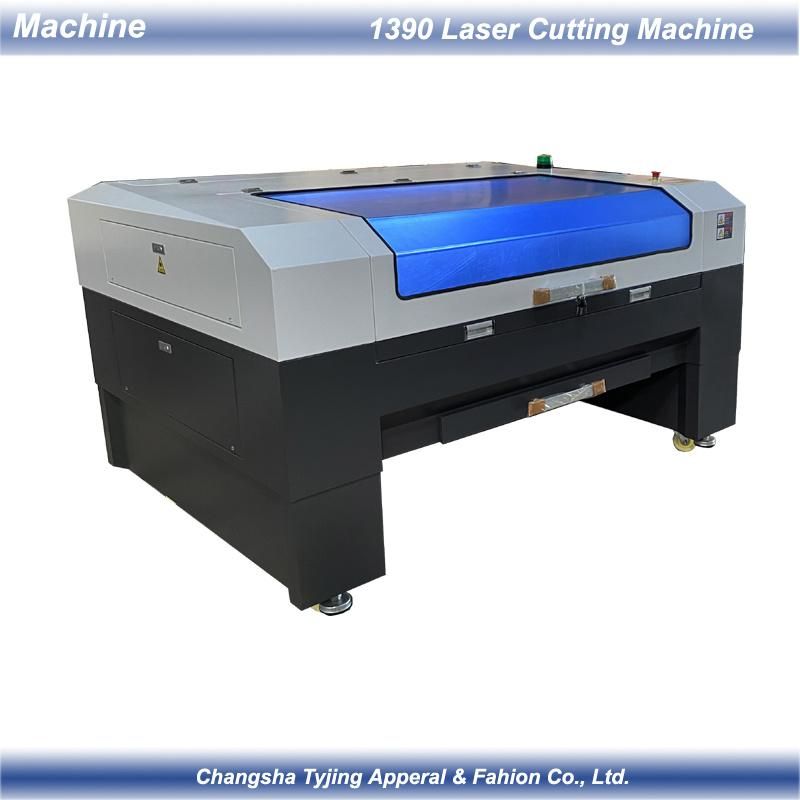

Our CO₂ laser machine adopts the digital control technology of DSP and the frame structure of integrated design, so it works stably and reliably. The latest software provides seamless docking with AutoCAD, CoreDRAW and other graphics processing software, and can direct output of original drawings. Our machine can can use USB data interface, support hot swap and complete data transmission instantaneously. It does not occupy computer resources when engraving/carving and cutting, and greatly improves work efficiency. Chinese and English LCD display, friendly man-machine interface, more convenient operation. This series of machines are suitable for continuous 24-hour factory processing service requirements, stability, sustainability and safety have reached the high-end level in Europe and the United States.  Applicable scope:
Our CO₂ laser cutting machine and lase engraving machine can broadly process fabric, acrylic, wood, leather, paper, rubber, plastic, glass, ceramics, marble, etc. Non-metal materials in industries of advertisements and marks, building models, craft gifts, seal making, clothing and accessories, printing and packaging, industrial sampling, etc. Moreever, with our superlaser head, our laser machines can make 3D engraving on some metal materials.

Specification:

Machine Name	Laser Engraving Cutting Machine
Model	LD-T1390
Working area	1300x900mm
Lase power	60W/80W/100W/130W/150W optional (depending on material and its thickness)
Machine weight	240Kg
Machine overall size	1,900x1,530x1,120mm
Max. Engraving speed	1,000mm/sec
Transmission mode	External slide guide
Power supply	220V,50~60Hz, single phase
Average/Max. Power	1000W/1100W
Cooling method	Water cooling system
Applicable materials	Ceramics, glass, wood, bamboo, leather, cloth, etc.
Usage	Cutting, engraving, drawing and cutting equipment
Standard Characteristic Function	Red-light positioning system, automatic/manual focusing
Transmission interface	Network Interface, USB joint and Offline U Disk SupporT
Accuracy/depth	Positioning: 0.01mm, Max. cutting depth: 30mm
Support file format	JPG, BMP and other image formats, PLT, DXF, AI, DWG and other vector formats
Working speed	0-6400mm/min
Working temperature	0-45ºC

After sales service:

1. Free training for operators in our factory, however, travel fee (food, rooms, air tickets, etc.) will be responsible by the buyer himself.
2. Vulnerable parts, such as laser tubes, backplane, lenses, etc. are not guaranteed.
3. Under normal working conditions, the  machine is guaranteed for 1 year, with the exception of vulnerable parts.
4. Damage caused by other force majeure factors and man-made damage shall not be covered by the warranty..
5. Free software support and upgrade.
6. Provide industry cutting parameter table without charge.
