• Model NO.：PEDB-400H
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：10W 20W 30W 50W
• Fiber Laser Source：Ipg Raycus Max
• Marking Material：Stainless Steel Aluminum Plastic
• Marking Area：110mm * 110mm
• Optional：175X175mm
• Fiber Laser Device Lifetime：100, 000
• Laser Device：Fiber Laser Device
• Making：Qr Code Barcode Number Text
• Scanning Speed：0-7000mm,S
• Marking Speed：0-8000mm,S
• Transport Package：Wooden Cases with Exporting Standard
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：9013200090
• Production Capacity：3000 Unit , Year

Model No.

PEDB-400H

Type

Hand-held

Computer

Not includes PC

Laser Source

IPG Series:

Pulsed, High Energy Ytterbium Fiber Lasers

Mode of operation

Pulsed

Polarization:

random

Nominal average output power

10W/20W/30W/50W

Central emission wavelength:

   1060-1070 nm, Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth (FWHM)

<10 nm

Long-term average power instability

<5%

Pulse width, (FWHM)

100 ns

Laser switching ON time

180 μsec

Laser switching OFF time

180 μsec

Pulse Repetition Rate* kHz

20-80 kHz

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Typical beam quality, M2

<1.8

Output fiber delivery length

3m

Operating voltage:

220V

Max. Power consumption:

600W

Laser system

Scanning Speed:

0-7000mm/s

Marking Speed:

0-5000mm/s

Marking size:

110mm×110mm (F-theta 160)

Spot size:

≤ 40 micron (F-theta 160)

Cooling unit:

Air-cooled

Pilot laser:

650nm diode laser, visible red light for marking guide

Continuous working time:

≥16h

Humidity:

45~85% (no condensation)

Operating temperature:

0~40ºC

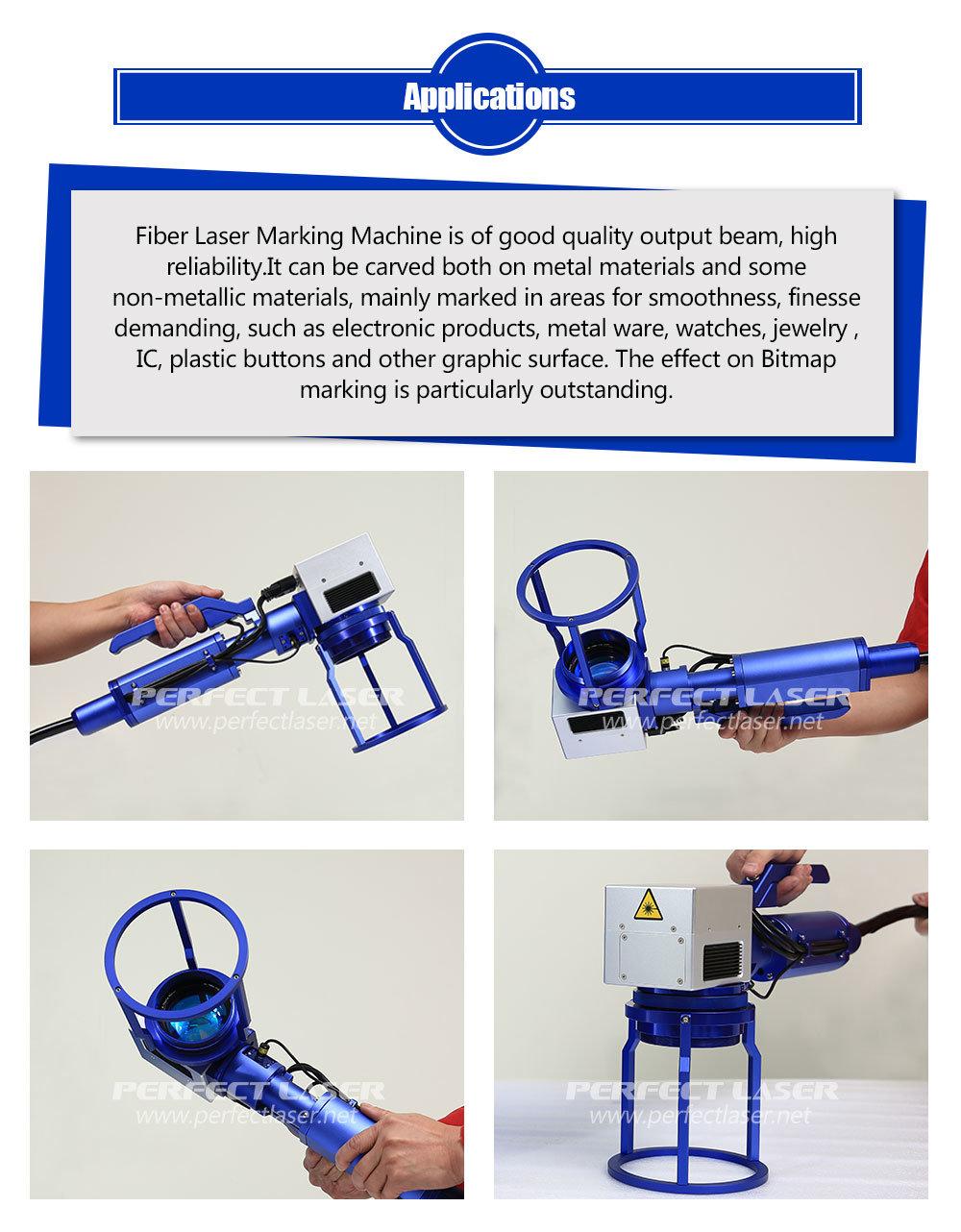

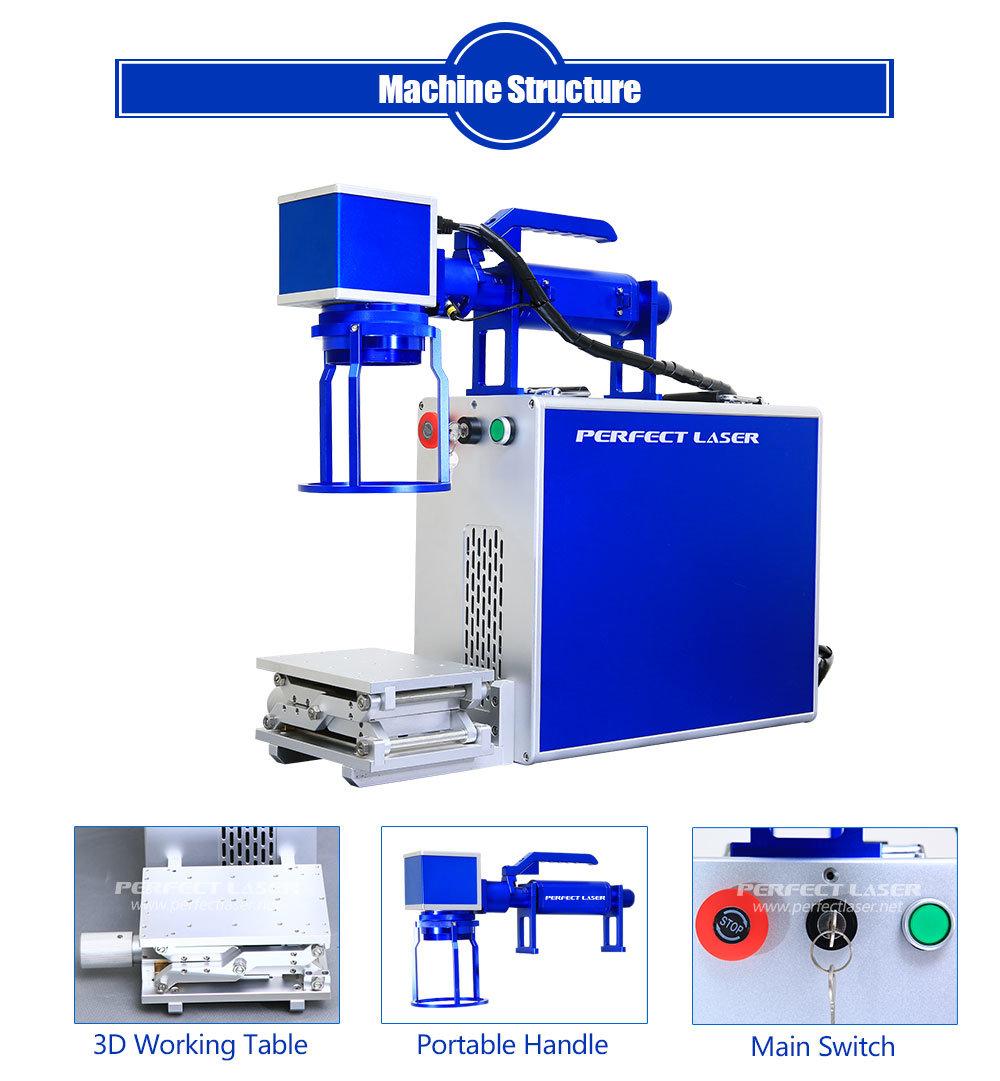

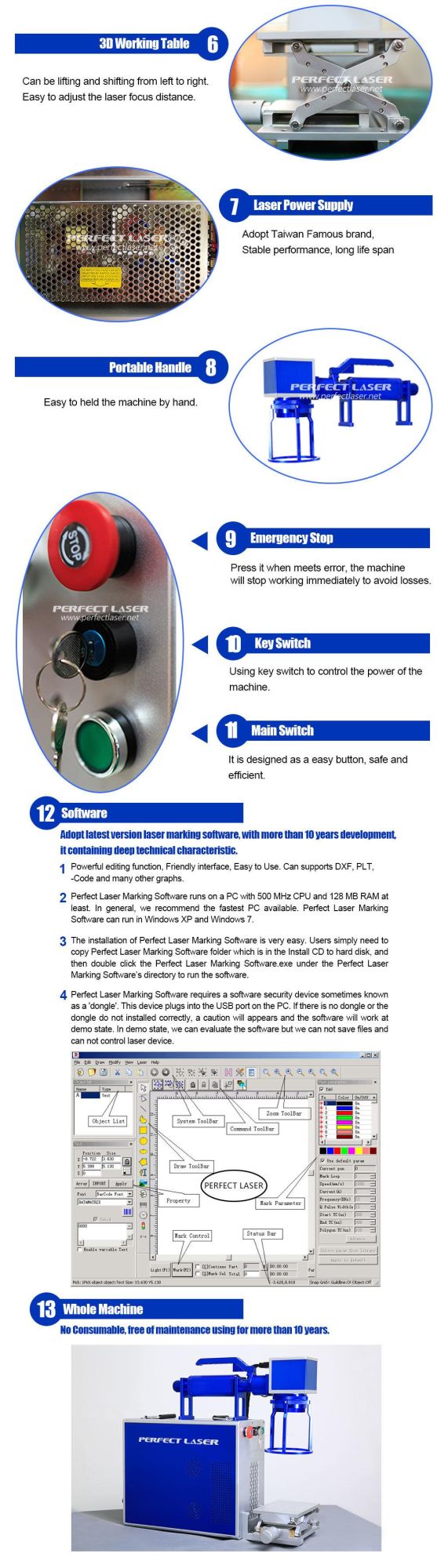

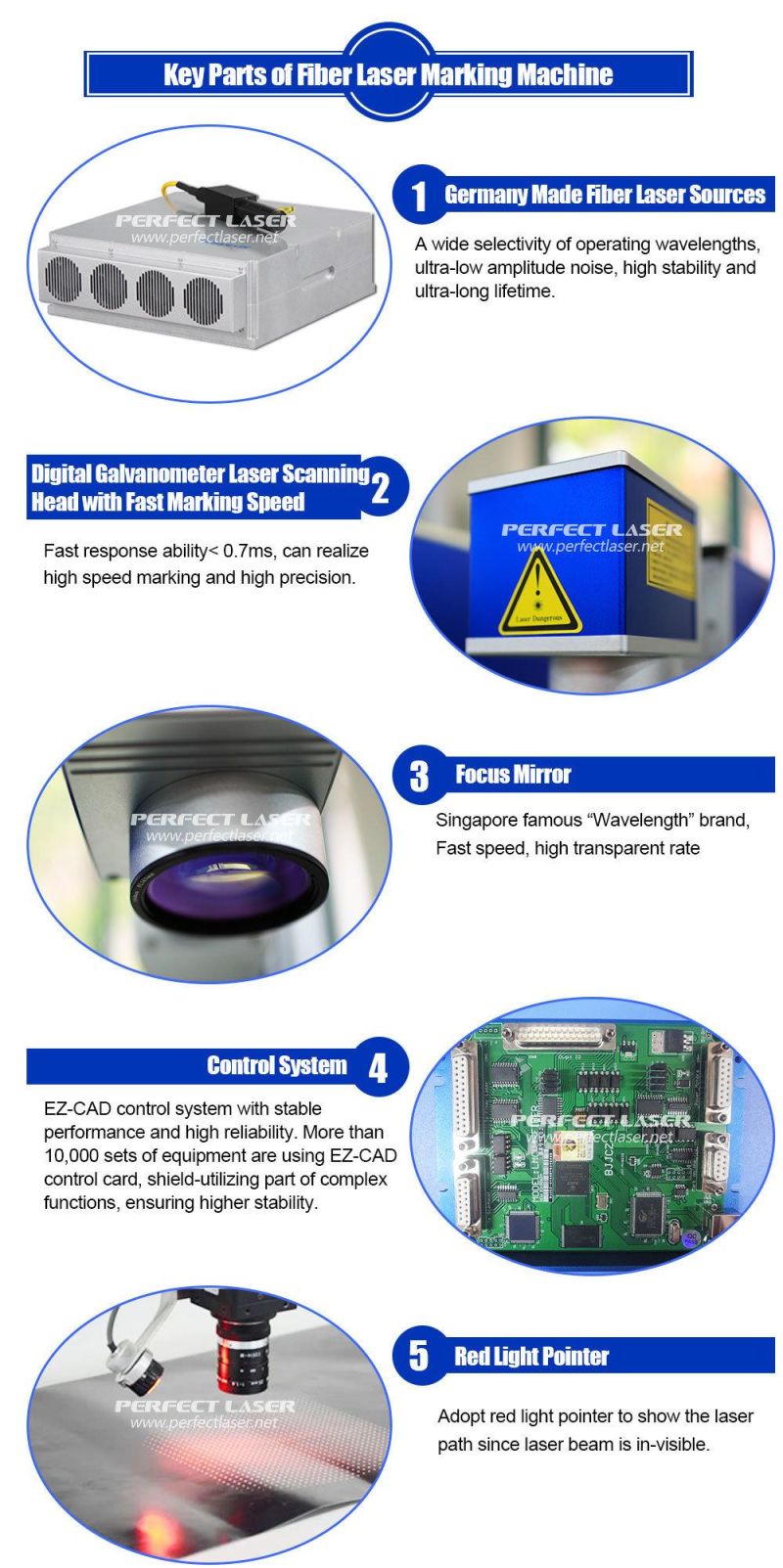

Detailed Images:







Company Information:
Perfect laser Co. Ltd. (China) was founded in 1995, located in the core area of "China Optic Valley" - Wuhan city. Occupied with 3000 m2 ground, including R&D building and production area. It has more than 180 employees, most of them are with bachelor degree or even doctorate degree. Executed by reliable quality and reasonable price, our products get favorable sales success and outstanding reputation not domestically in China but also popular in more than 180 countries such as the USA, Italy, Korea, Singapore, Poland, Turkey, Sweden, Saudi Arabia to worldwide.

FAQ:

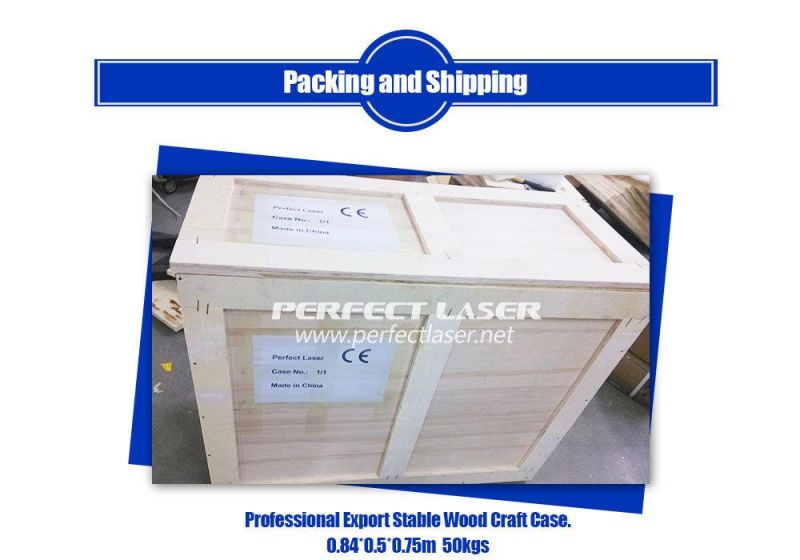

Q1.: What's the package?
A: We have 3 layers package. For the outside, we adopt a woodcraft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by a thickening plastic bag for waterproof.

Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and makes it be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q3.: How to install and run the machine?
A: Our technician has installed the machine before shipping. For some small parts installation, we will send a detail training video, user manual along with the machine. 95% of customers can learn by themselves.

Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try to fix the machine by yourself or someone else. We will respond within 24 hours as quick as we can to solve it for you.
