New Ca-F1530 Carbon Steel Laser Cutting Machine Fiber Laser Cutting Machine
Jinan Camel CNC Machinery Co., Ltd.- Warranty：2 Years
- Application：Environmental Equipment, Agriculture Machinery, Automotive Industry, Advertising Industry
Base Info
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Desktop
- Laser Classification：Solid Laser
- Laser Technology：Laser Control Fault Cutting
- Working Area：3000X1500mm
- Laser Power：1500W
- Laser Wavelength：1064nm
- Application Materials：Metal
- Max. Cutting Thickness：Ss:6-8mm,Ms:12-16mm,Aluminum:3mm
- Gross Power：9kw
- Positioning Accuracy：±0.03mm,M
- Reposition Accuracy：±0.02mm
- X/Y-Axis Maximum Simultaneous Positionin：140m,Min
- U-Axis Max.Moving Speed：30m,Min
- Rotary System：Optional
- Transport Package：Plywood Case
- Specification：3800*2280*1860mm
- Trademark：Camel CNC
- Origin：Shandong
- Production Capacity：10000set,Month
- Package size per unit product：3800.00cm * 2280.00cm * 1860.00cm
- Gross weight per unit product：3000.000kg
Description
- Working voltage Three phase,380V,50/60HZ
- Working size 1500*3000mm
- Taiwan HIWIN Linear Guide Rail
- X,Y Axis Japan FUJI 1000W Servo motor and Driver, Z axis 400w FUJI Servo motor with brake and driver, total 4 sets.
- High speed TAIWAN YYC rack gear Transmission
- Original CypCut control System
- Raytool Adjust Laser head
- MAX 1500W Fiber laser generator
- Japan Shimpo reducer
- 10.HL1500 water chiller
Technical Data of Laser Cutter

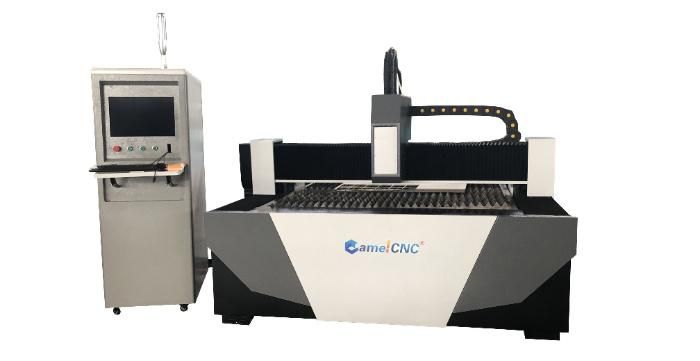

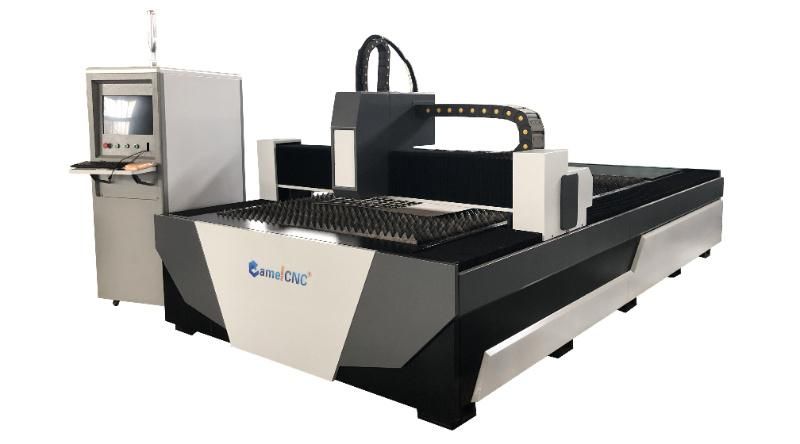

Laser Cutting Machine Display

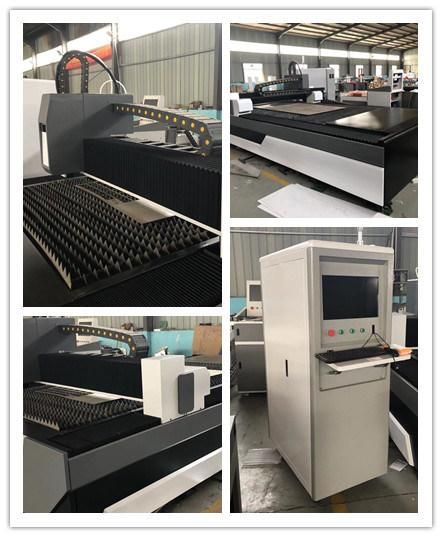

Details of laser cutter

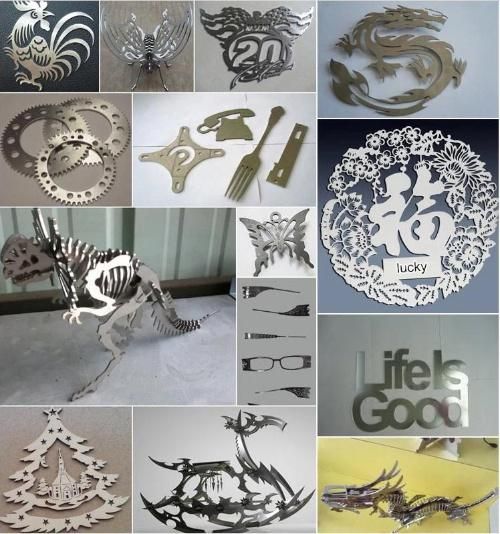

Sample Display

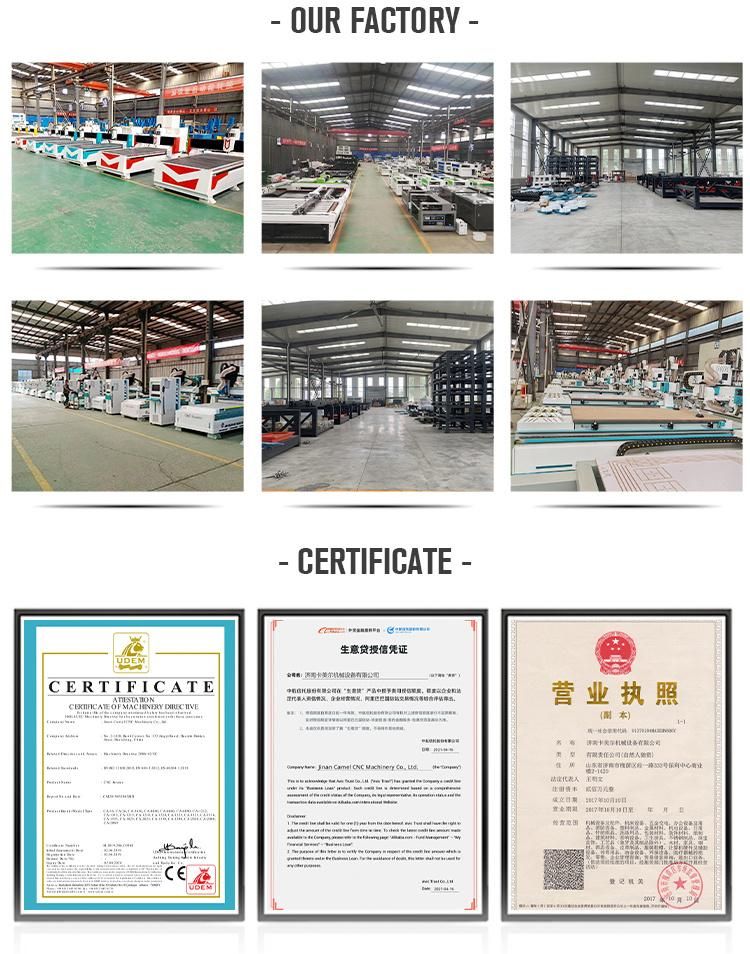

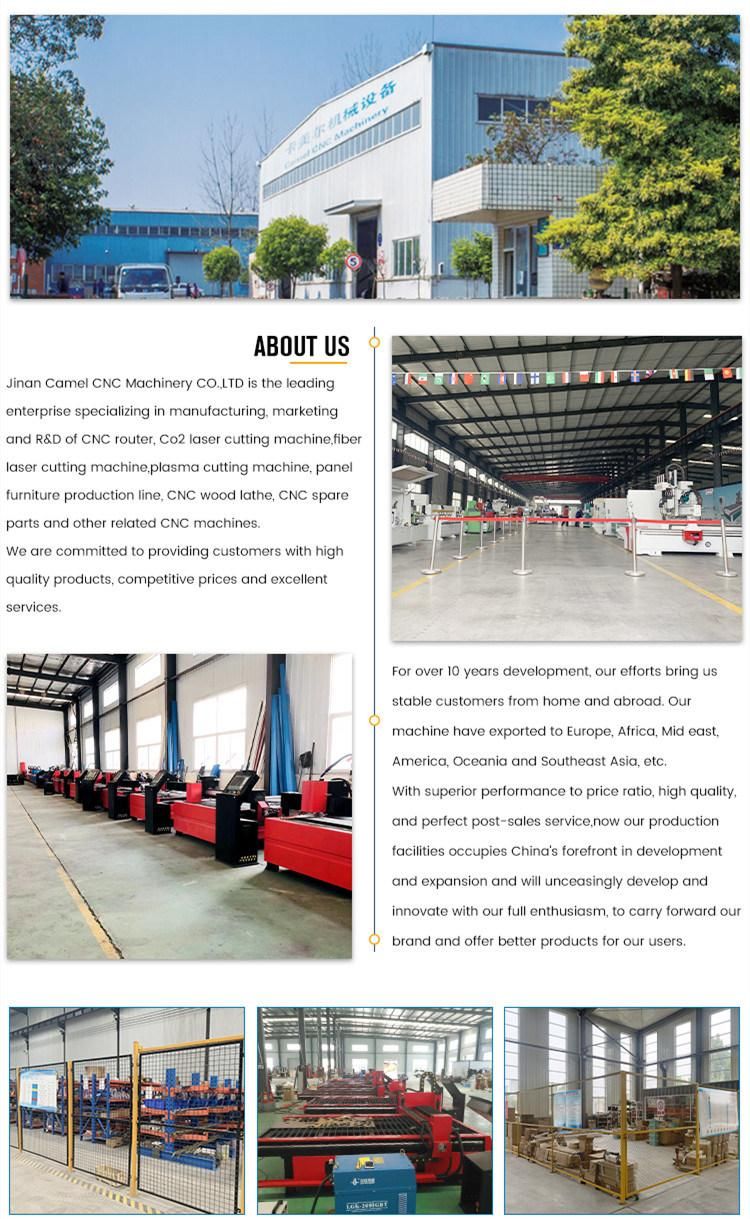

Company Profile
