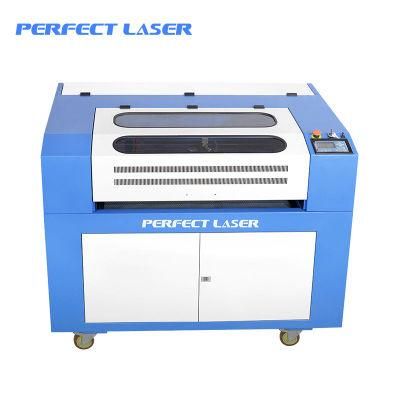

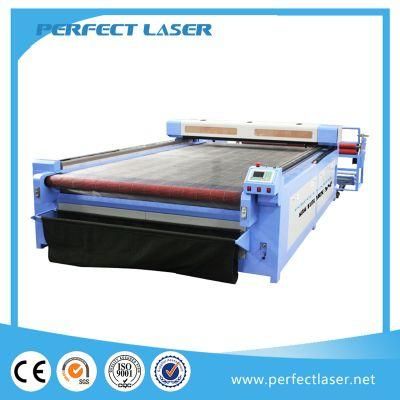

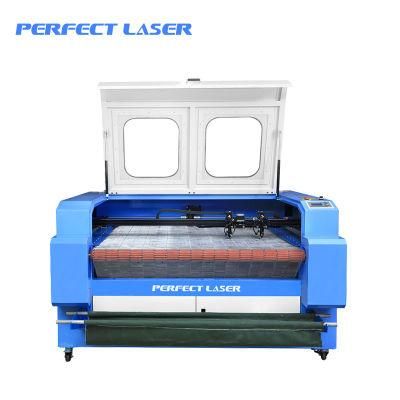

100W Wood Acrylic CO2 Laser Engraving Cutting Machine for Fabric
Perfect Laser (Wuhan) Co., Ltd.- After-sales Service：Online Support
- Warranty：One Year
- Application：Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Crafts Industr, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Automatic
Base Info
- Model NO.：PEDK -13090
- Applicable Material：Nonmetal
- Type：Flat-Plate
- Laser Classification：CO2 Laser
- Engraving Method：Vector Engraving
- Working Area：1300*900mm (4 Feet*3 Feet) CO2 Laser Cutters
- Laser Power：60W , 80W , 100W , 130W , 150W
- Engraving Speed：0-60000mm,Min
- Cutting Speed：0-10000mm,Min
- Cutting Thickness：0-25mm Acrylic (Others Determined by Materials)
- Repeat Location Accuracy：0.0125mm
- Driving Mode：DC0.8A 24V Stepper Motor
- Voltage：AC220V,50Hz or 110V,60Hz
- Support Graphics Mode：BMP, Hpgl, JPEG, GIF, Tiff, Pcx, Tag, Dst, Plt, Dx
- Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
- Specification：1970mm*1480mm*1250mm
- Trademark：Perfect Laser
- Origin：China
- HS Code：8456110090
- Production Capacity：5000 Sets , Month
Description
Working Area
1300x900mm (4 feet*3 feet) Co2 Laser Cutters
Laser Power
60w / 80w / 100w / 130w / 150w
Laser Type
Hermetic and Detached Co2 Laser Tube
Engraving Speed
0-60000mm/min
Cutting Speed
0-10000mm/min
Cutting Thickness
0-25mm acrylic (Others Determined by Materials)
Repeat Location Accuracy
+/-0.0125mm
Driving Mode
DC0.8A 24V Stepper Motor
Position System
Red dot Laser Pointer
Interface
USB port transfer
Voltage
AC220v/50hz or 110v/60hz
Machine Power
900w
Controlling System
CNC Professional Control System
Support Graphics Mode
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode
CW-3000 Water Cooling (with Protection Function)
Auxiliary Devices
Exhaust Fan and Exhaust Pipe
Cutting Platform
Professional Thickening Strip or Honeycomb Work Table
Power Control Mode
Laser Energy Combining Movement Control System
Software
Professional Reader Laser Cutting Software
Operating Temperature
0-45C
Operating Humidity
5-95%
Packing
Wooden Box
Guarantee Time
12 Months for Machine, 3-10 Months for Laser Tube
Operation
VCD Training, Engineer Overseas Available
Machine Size
1970mm*1480mm*1250mm

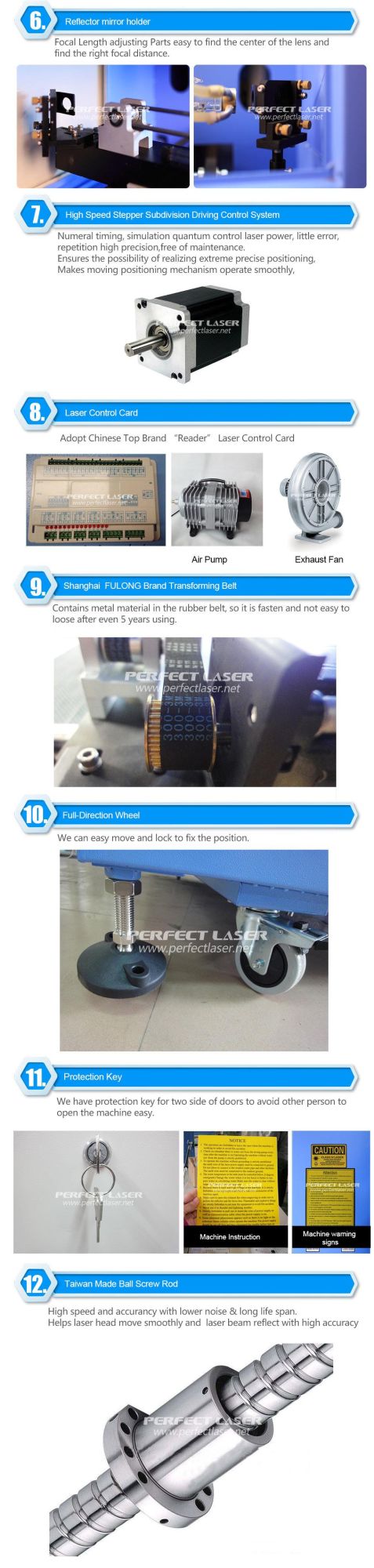

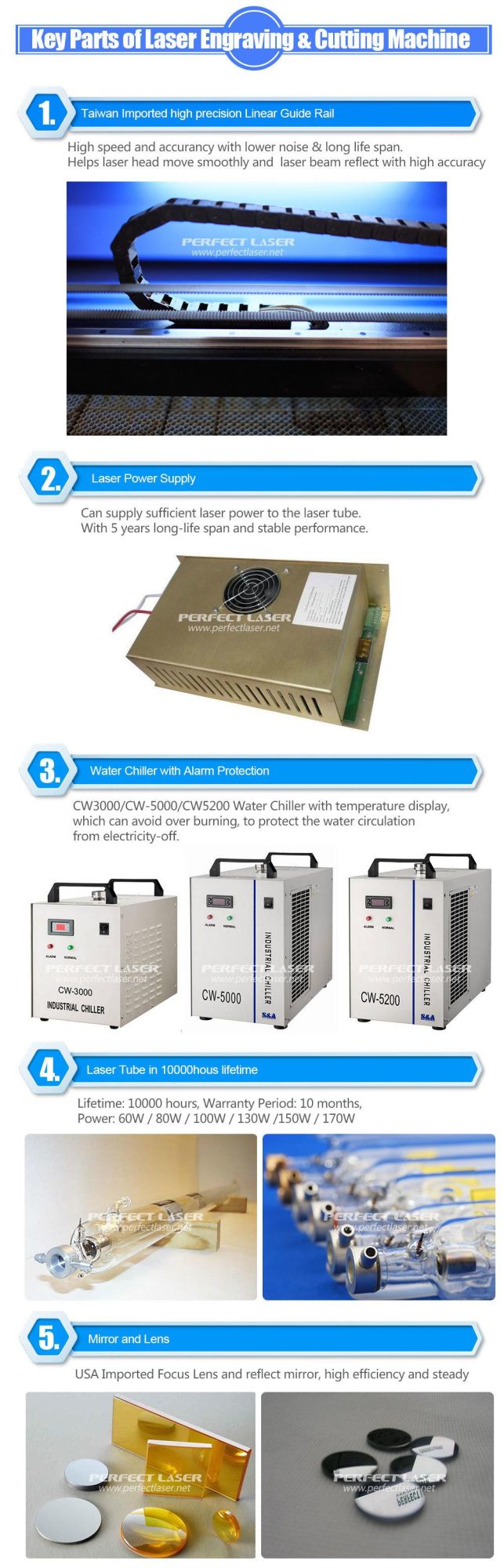

Machine Details of Laser Cutter:
Our Company:
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
