• Model NO.：RDC6333F
• Trademark：Tang Cheng
• Origin：China
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. RDC6333F Trademark Tang Cheng Origin China Production Capacity 1000 Pieces/Month

Product Description

RDC6333F is a control system developed specifically for the field of medium power fiber cutting. This system is based on the RDC6333 hardware platform that Ruida Technology has been widely used and verified for stability, and cooperates with Ruida Technology's all-digital automatic height adjustment control system to achieve excellent fiber cutting performance. System man-machine adopts 5.6 inch

Fiber cutting control system RDC6333F



Technical Parameters:

1. Peak voltage output is 0 ~ 10V, ripple is less than 60mV;

2, 24V output PWM and laser switching signals, the maximum drive capacity can reach 500mA;

3. Differential output of motor control signals, TTL level, 20mA drive capability;

4. The maximum pulse frequency of motor control is 500KHZ;

5. Support Ethernet interface to download processing files;

6.Onboard storage space 256M;

7. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;

8.Multi-channel IO output, the maximum driving capacity is 300mA;



Function description:

1. S-type acceleration and deceleration control and adaptive speed forward processing effectively ensure the smoothness of the movement;

2. The laser control supports PSV and PSW modes, which effectively improves the laser cutting effect;

3. Support U disk interface for convenient file copying;

4. Onboard 256M non-volatile memory with large capacity;

5. The motherboard program can be upgraded online to facilitate the maintenance of the manufacturer and the customization of customer functions;

6. The system comes with a time system for system encryption and installment management;

7. Support customer processing time preview (preview accuracy rate is 100%, preview time and actual processing time are accurate to millisecond level)

8. Support the machine's reverse gap compensation function;

9. Integrated management of elevation control and motion control, easy for users to operate;

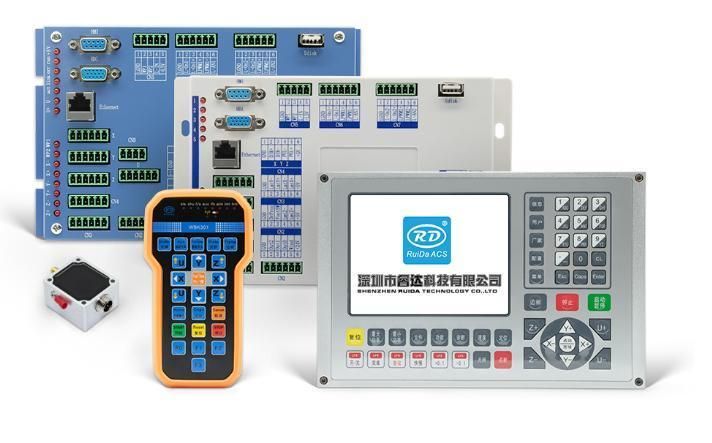

Product acessories:

1.RDC6333F controller

2. Fiber laser adapter board

3.Wireless operation pane
