• Model NO.：Mini Co2 laser marking machine
• Laser Wavelength：CO2 Laser
• Laser Classification：Solid Laser
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Type：Davi RF CO2 Laser
• Comtrol System：Jcz
• Operation System：Microsoft Windows 7. 8. 10 System
• Power Supply：220V,60Hz,8A(110V,60Hz,15A Can Choose)
• Transport Package：Wood Boxes
• Specification：1180*630*520mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090

Basic Info.

Model NO. Mini Co2 laser marking machine Laser Wavelength CO2 Laser Laser Classification Solid Laser Type CO2 Laser Marking Machine Marking Method Scanning Marking Laser Type Davi RF CO2 Laser Comtrol System Jcz Operation System Microsoft Windows 7. 8. 10 System Power Supply 220V/60Hz/8A(110V/60Hz/15A Can Choose) Transport Package Wood Boxes Specification 1180*630*520mm Trademark Lansen Origin China HS Code 8456110090

Product Description

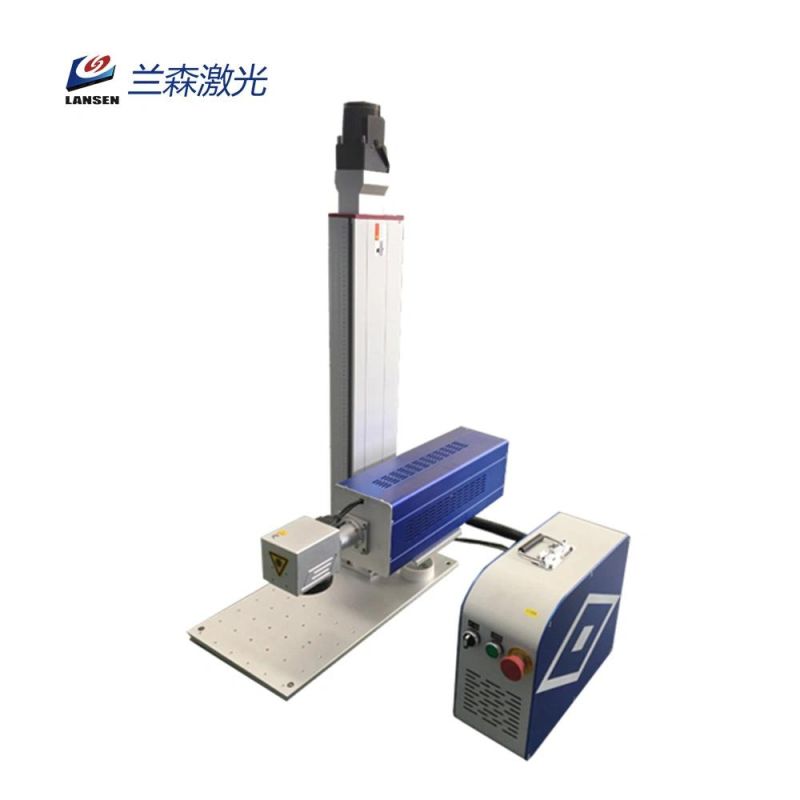

Mini CO2 RF metal tube 30w feather wood laser marking machine for nonmetal materialsParameters:

Model	co2 mini Laser Marking machine
Laser type	Co2 Laser
Laser power	20w/30w
Laser Wavelength	10 . 6μm
Laser Repetition Frequency	≤25KHZ
Marking Area	100mm*100mm / 200mm*200mm
Marking Deep	≤0 . 3mm
Linear Speed	≤7000mm / s
Min.Line Width	0 . 1mm
Repeatable Accuracy	±0.01mm
Min.Letter	0 . 4mm
Gross Power	0.8-1 5KW
Power Requirement	220V / 50HZ
Cooling system	Air Cooling
Warranty	Two years

 Features:
Co2 laser marking machine adopts imported CO2 RF laser generator and high speed galvo scanner system. With high quality optic devices, high stability laser generator, full automatic control system. The machine system working with high precision and fast speed, very stable performance, can work continuously for a long time and can be applied directly in large quantities of online processing lines.

1. General machine, adopted back focalization, laser power is controlled by the software and serially adjustable. It is applicable to fine marking on nonmetal materials with low requirements.
2. Adopting CO2 RF laser tube which has excellent performance and long life<20k hours.
3. Adopting high-speed galvanometer system with high speed, high precision and stable performance.
4. Adopting imported optics lens, low loss, excellent focalization performance.
5. The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.

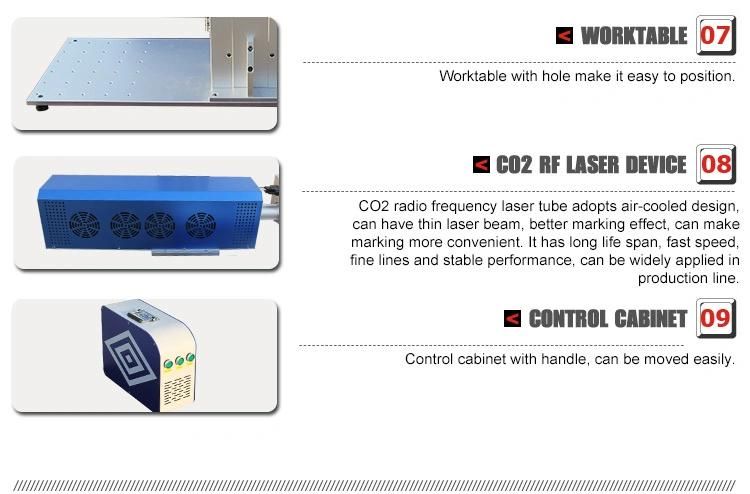

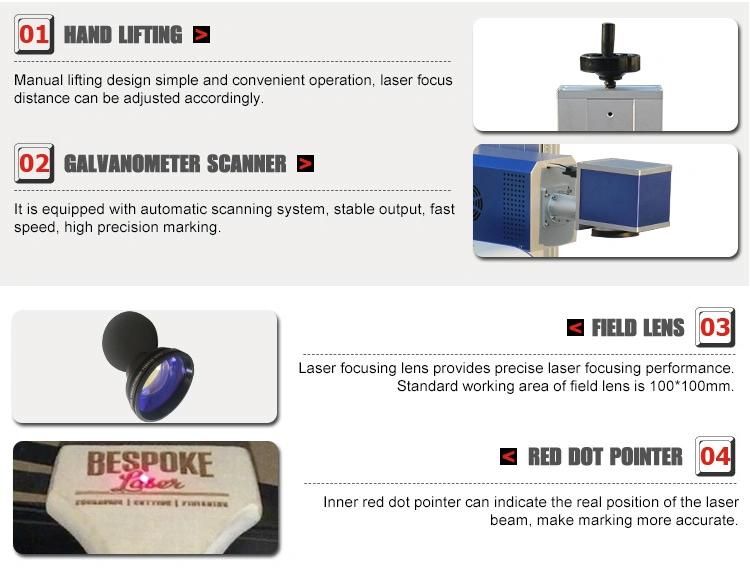

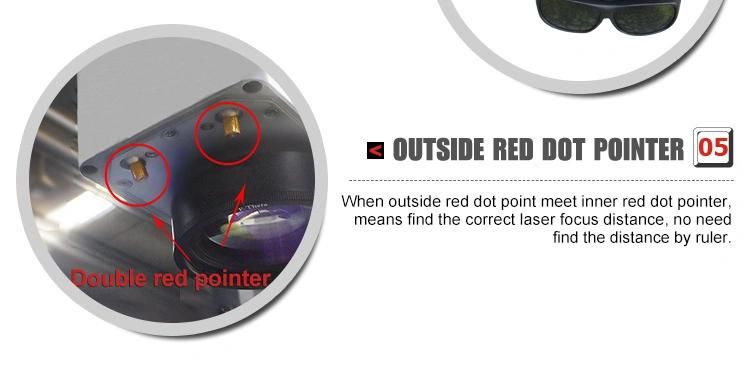

Machine details:









Applications:


Aplicable Industries:
Wide used in all kinds of cosumer goods, food packing, fodder packing, pharmaceutical packing, architectural ceramics, clothing accessories, leather,fabric cutting, craft gift, rubber products, shell palte, jeans cloth, furniture, etc.

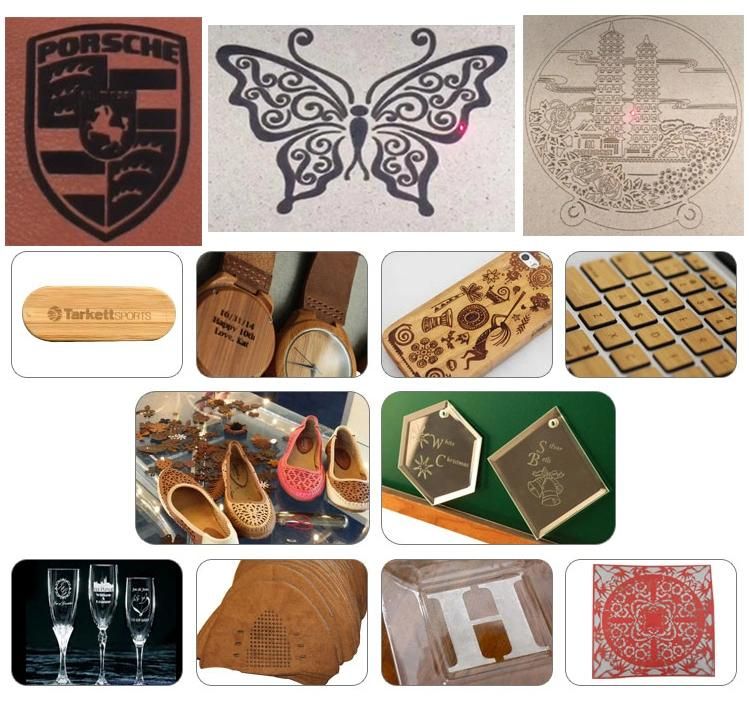

Applicable Materials:
RF Laser Marking machinemainly used for marking on nonmetal material, it can marking on mobile phones buttons,  plastic translucent keys,  electronic components, integrated circuits(IC), electrical appliances, communication products, sanity ware, tools, accessories, medical device industry, jewelry, glass and clocks, auto parts, luggage buckle, cooking utensils, cut paper and other industries, etc.



About us:

FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Vide
