• Model NO.：LS20F
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W
• Laser Type：Fiber
• Laser Source：Jpt M7
• Marking Area：110*110mm
• Transport Package：International Standard Plywood Box
• Specification：940*860*1020mm
• Trademark：Lansen Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. LS20F Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W Laser Type Fiber Laser Source Jpt M7 Marking Area 110*110mm Transport Package International Standard Plywood Box Specification 940*860*1020mm Trademark Lansen Laser Origin China HS Code 8456110090 Production Capacity 300sets/Month

Product Description

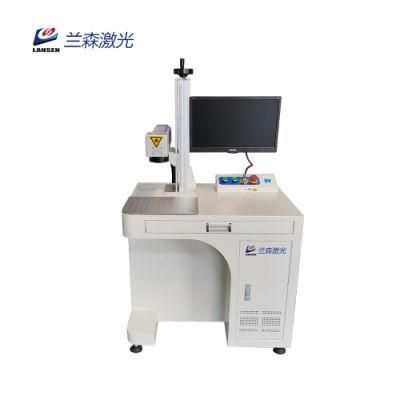

Desktop JPT Fiber Color Laser Marking Machine for Metal

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance.
This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment.

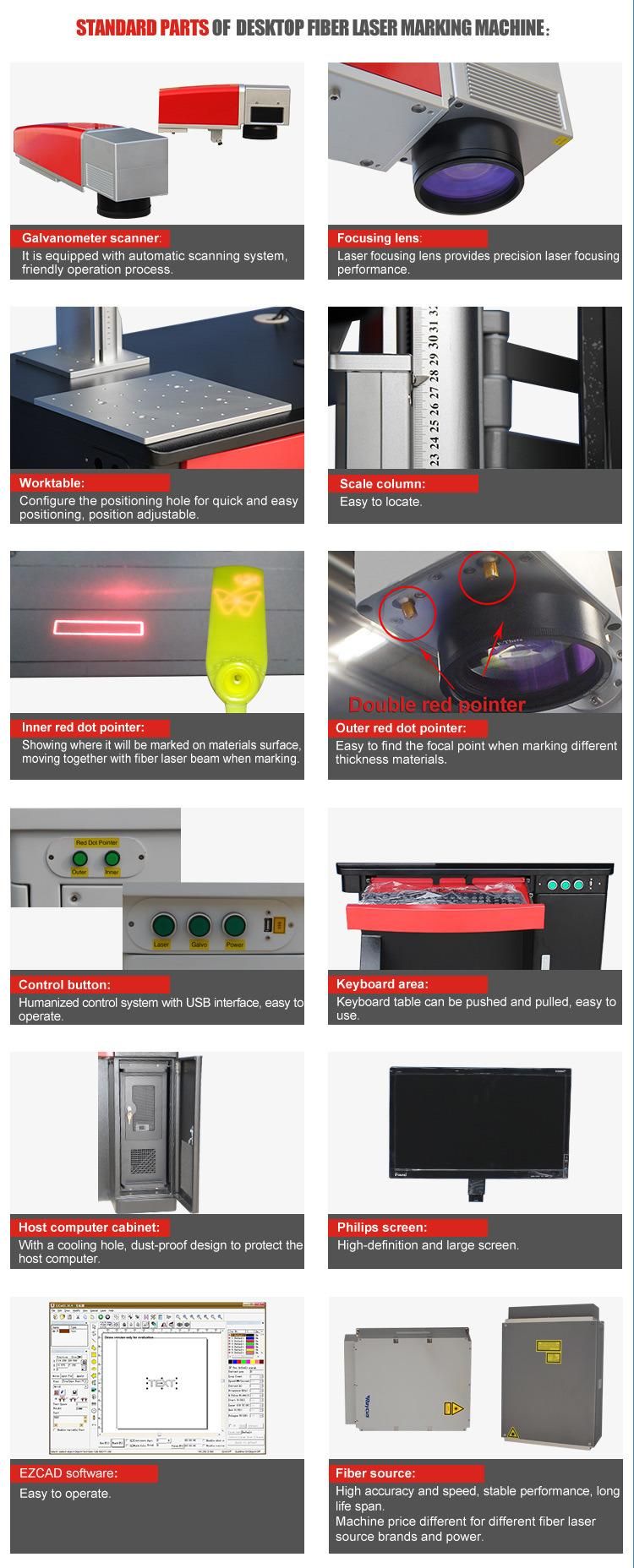

Desktop Fiber Laser Marking Machine Features:
1.Best Marking Effect: the laser beam of fiber laser etching machine for metal is fine and thin. Laser etching steel can provide the best marking effect among all the laser machines. Especially good at smallest character marking, such as mark on IC chip.
2.Deep Marking: Lansen Fiber Laser Marking machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3.Higher Accuracy: The Fiber Laser marking machine for metal can reach unto 0.001mm precision, while diode only 0.01mm.
4.10 Years Long lifetime: fiber laser marking machine use the fiber laser source made by Germany IPG technology or Chinese JPT, Raycus high quality fiber laser, the lifetime can reach 20000-100,000 hours, so the machine can be used for 5-10 years.
5. No consumables:The laser etching machine for metal can be used for metal marking for 5-10 years without any consumables.
6.No need to adjust the laser path.
7.Free of Maintenance.
8.Use Integrated Air Cooling.
9.Low Power Consumption: low cost, only 0.5kw/hour.
10. Small and compact: the volume of Lansen Laser's fiber laser marking machine is small, only 0.15 M3.


 Parameters:

Laser Source	Fiber Laser
Output Power	20W/30W/50W/100W
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110x 110mm/ 200x 200mm(optional)/300*300mm(optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220V / Single-Phase Circuit / 50/60Hz /4A

Metal Fiber Laser Marking machine Aplicable Industries:
1. Electrical Engineering and Electrical part and component
2. Mobile (Cover, battery, keyboard, IPhone Case)
3. Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4. Building materials,PVC pipe
5. Car motor car spare part, Instrument and meters and cutting tool
6. Plastic case,aviation and aerospace,
7. Hardware fitting and accessory,sanitary appliance
8. Food and beverage ,Medicine package and medical instrument,solar Pv industry

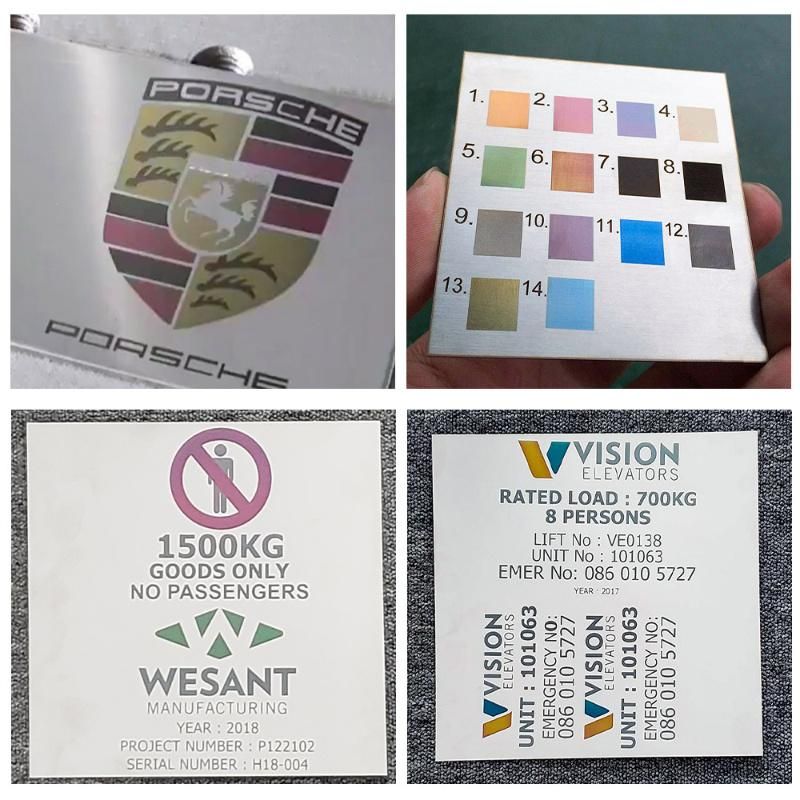

Samples:


Our Survice:
1. 24 Months for Machine
2. 6 Months for equipment outside, such as water pump, fan, air pump,etc.
3. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material. Lifely and fast technical guide and solution within 24hours by email and web camera.

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.
Supply Ability: 100 sets / Month
Port: Qingdao
Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail: International standard plywood export box
Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

About us:



FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
