• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

wholesale laser 20W Metal Fiber Laser Engraving Machine With Marking System


  PRODUCTION :



The output range of high-quality laser beam is up to 1064nm.Compared with others, the machine's lifetime is longer

and its electro optic conversion rate is above 28%,more at least 20% than others on average as has obvious advantages

on environmetal protection.

A.process metal materials such as stainless steel, carbon steel, aluminum, iron, gold and sliver.

B.laser marking ,no damaging product, no scuffing cutlery, good quality marking

C.thin laser beam,low consumption and small heat influence of processing materials

D.highly efficient AUTO control by computers.

Optional laser parts for laser machine :

1. Rotary fixture :

rotary fixture is mainly apply to the surface of curved and cylinder marking.The general size of rotary fixture is 80-100mm,

if you have special needs,we can also customize according to your needs.

2. Goggles:    Reduce laser damage to eyes

3. 2D Working table:

X Y axis adjustable worktable can achieve very small position movement of workpiece via adjust the worktable.

So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the

worktable by X and Y axis's handle

4. Rotating worktable:  Rotating worktable can achieve multi-station marking of surface



  TECHNICAL  PARAMETER :


Model	MAN-F20/ MAN-F30
Laser Power	10W /20W /30W
Laser Wave length	1064nm
Q-frequency	20KHz~30KHz
Divergence	0.3mard
Marking Range	110*110mm /175*175mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0~0.5mm
Engraving Line Speed	≤7000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics,Text,Bar Codes,Two-dimensional Code, Automatically Marking theDate,Batch Number, Serial Number,Frequency,etc.
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Use of the Environment	Clean and Dust Free or Dust less
Working Condition:Humidity	5%-75%,Free of Condensed Water
Laser Module Life	>100000hours
Optional Marking Area	50mm*50mm / 100mm*100mm / 200mm*200mm
Marking Software	English Version Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc. Easy Operation With Powerful Function

IMAGES DETAILS :

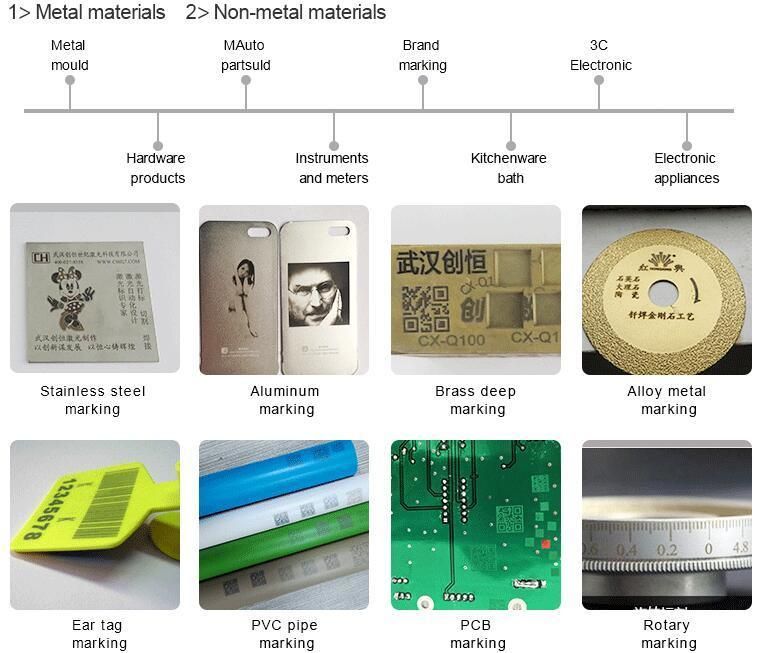

 SAMPLE SHOW :

  PACKAGING &  SHIPPING :

Packaging:

1.Our wooden case is after fumigation treatment. Needn't  timber inspection,saving shipping time.

2.All the spare parts of the machine were covered by some soft  materials, mainly using pearl wool.

avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,

make sure intact of the covered soft materials, also avoiding Waterproof and rust proof.

 3.The outmost is wooden case with fixed formwork

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. We can arrange shipment by sea. Minium CBM requirement : 1 CBM


 Company Information :

Shandong Man Machinery Equipment  Co.,Ltd. is a industiral machine manufacture.

By far,our machines have seen sold to all round the world , Nowadays, more and more factories and distributors choose us,

because they realized good reliable quality with reasonable prices is the basic of long-term business.



Q1.How can i get the machine?

CIF:Almost finish production →order shipment and confirm shipping date→delivery machine to port

of loading→declare at customs→shipping→delivery to port of destination

FOB:Almost Finish production→tell us your shipping agent contacts and confirm shipping date→

delivery machine to port of loading→declare at customs→shipping→delivery to port of destination

DDP:Almost finish production →order shipment and confirm shipping date→delivery machine to port of loading→declare at

customs→shipping→delivery to port of destination-clearance-delivery machine to your place

Q2.Why choose us?

We provide you a solution and not just a machine.

Well configured machine using hardware that makes the machine efficient, accurate, and reliable.

 CNC company that has expert staffs with over 10 years of CNC building experience.

Get the support that you deserve from our confident well trained staff members.

prides itself in having the patience and the ability to provide knowledge and service.

Q3. How to choose the most suitable machine?

Kindly let us know the following details:

1.What is your Max.working area?

2.What material will you work on?

3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?

4.You also can send your product samples to us.

According to your sample,we will recommend the best suitable machine for you.
