• Model NO.：PEDB-400D
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Source：Max, Raycus, Ipg
• Laser Life Time：100, 000 Hours
• Laser Head：Galvanometer Head
• Laser Power：20W,30W,50W
• Laser Type：Full Closed Cabinet
• Stock：in Stock
• Aftersale Service：Global
• Name：Stainless Steel Aluminum Copper Plastic Floor Fibe
• Model：Pedb-400d
• Warraty：3year
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO9001&CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：3000 Units, Year

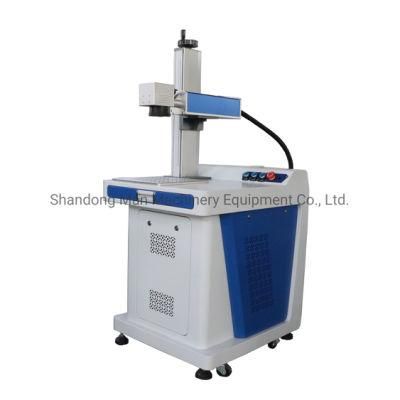

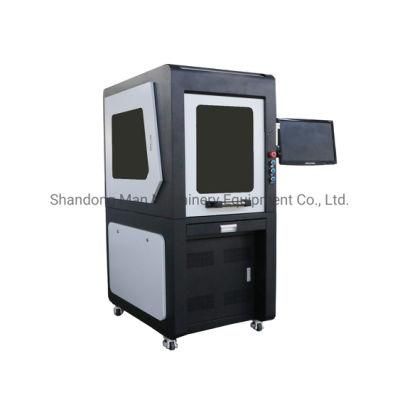

Model No.PEDB-400APEDB-400BPEDB-400CPEDB-400DTypePortableDesktopColorfulFloor StandPC includes or notNot includes PCincludes PCLaser SourceIPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operationPulsedPolarization:randomNominal average output power10w/20wCentral emission wavelength:1060-1070 nm ,Q-switched operation Output power
adjustment range 10%-100%Emission Bandwidth (FWHM)<10 nmLong-term average power instability<5%Pulse width, (FWHM)100 nsLaser switching ON time180 μsecLaser switching OFF time180 μsecPulse Repetition Rate* kHz20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2<1.8Output fiber delivery length3mOperating voltage:220VMax. Power consumption:600WNet Dimensions:70*20*50cm58*22*50cm 80*38*72cm70*20*50cm143*62*101cmNet Weight:44 kgs53 kgs44 kgs130 kgsGross Weight:60 kgs70 kgs60 kgs150 kgsLaser systemScanning Speed:0-7000mm/sMarking Speed:0-5000mm/sMarking size:110mm×110mm (F-theta 160)Spot size:≤ 40 micron (F-theta 160)Cooling unit:Air cooledPilot laser:650nm diode laser, visible red light for marking guideContinuous working time:≥16hHumidity:45~85% (no condensation)Operating temperature:0~40°CControl unitsCT-MARK (English Version)Remark:
1> PEDB-400A / B / C type, it is very compact type, industry PC, Mouse and Monitor are not included in the quotation. Customer can use your own computer or laptop to control it.
2> PEDB-400D Floor type's quotation includes industrial PC / Mouse / Monitor.

FAQ
Q1.: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q3.: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
