• Model NO.：MT-FP30
• Marking Method：Scanning Marking
• Wavelength：1064nm
• Repetition Precision：0.01mm
• Marking Depth：≤0.5mm
• Marking Speed：<8000mm,S
• Beam Quality：<1.4m2
• Laser Pulse Frequency：20-80kHz
• Power Source：AC110V,220V± 10%, 50,60Hz
• Min.Character：0.5mm
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-FP30 Marking Method Scanning Marking Wavelength 1064nm Repetition Precision 0.01mm Marking Depth ≤0.5mm Marking Speed <8000mm/S Beam Quality <1.4m2 Laser Pulse Frequency 20-80kHz Power Source AC110V/220V± 10%, 50/60Hz Min.Character 0.5mm Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 200sets/Month

Product Description

Product Description
MT-FP series portable laser marker adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, endowed with the qualities of small volume, quick speed and easily marking on big objects surface.
This kind of machines can satisfy marking applications like metal laser marking, plastic laser marking, food and beverage packaging marking in the fields of food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile telephone shells, kitchen&bathroom hardwares, shells of watches, medical apparatus and instruments tools' fittings, electronics and other industries, auto spare parts and other industries.
MT-FP series portable laser marker has the advantages of low consumption of materials, non-toxic, and pollution-free.




Parameters

Laser Type	Fiber Lasers
Peak Laser Power	10W/20W/30W
Wavelength	1064nm
Repetition Precision	0.01mm
Marking Depth	≤0.5mm
Marking Speed	<8000mm/s
Cooling Mode	Air Cooling
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
System Composition	Laser,Controller,Imported Galvo scanner ,Lens ,Computer
Operating temperature	10ºC-35ºC
Warranty	1 Year
Beam Quality	<1.4M2
Laser Pulse Frequency	20-80Khz
Humidity	5% to 75% (Free of Condensed Water )
Gross Power	<500W
Min.Line Width	0.02mm
Min.Character	0.5mm
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	70*70mm/110*110mm/175*175mm/200*200mm

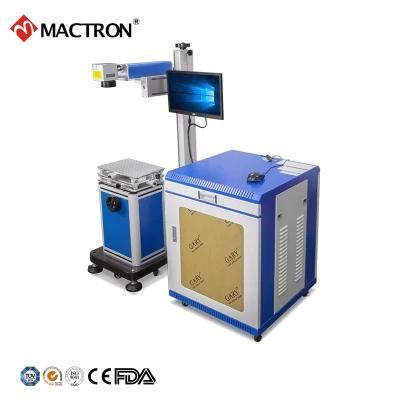

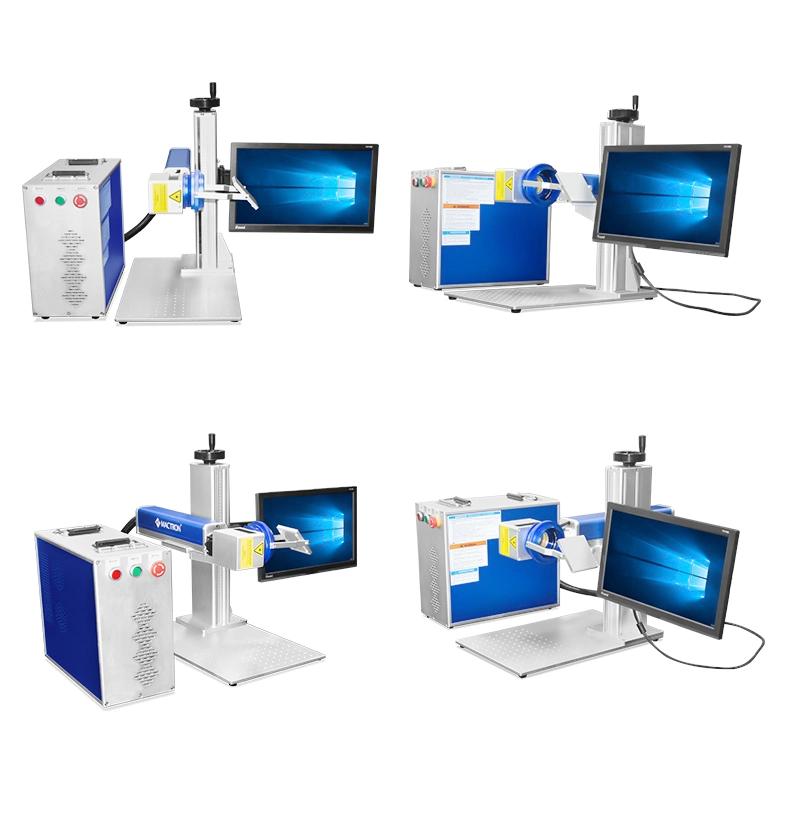

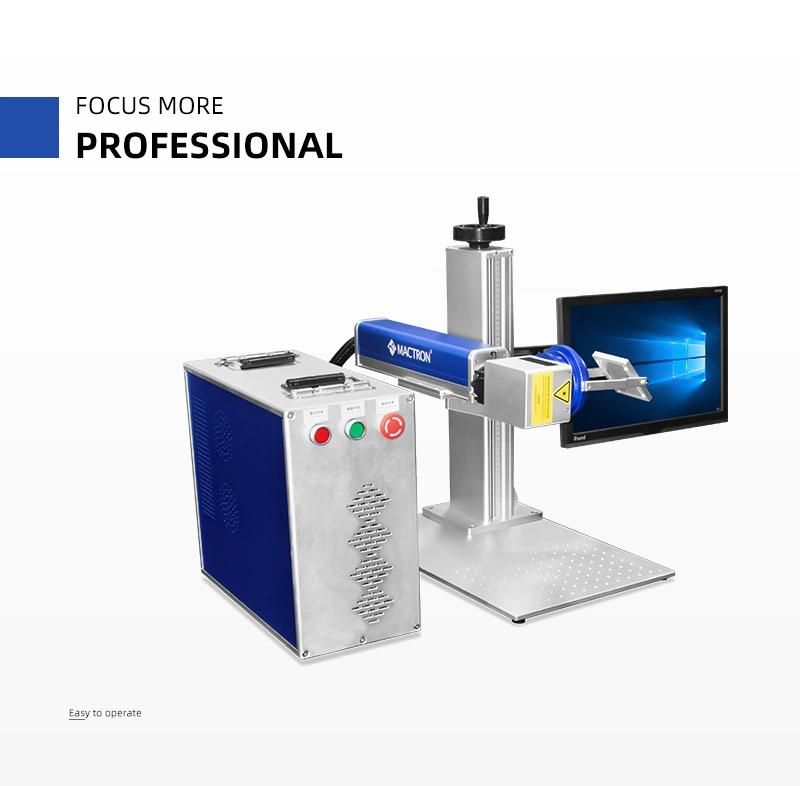

Product Show

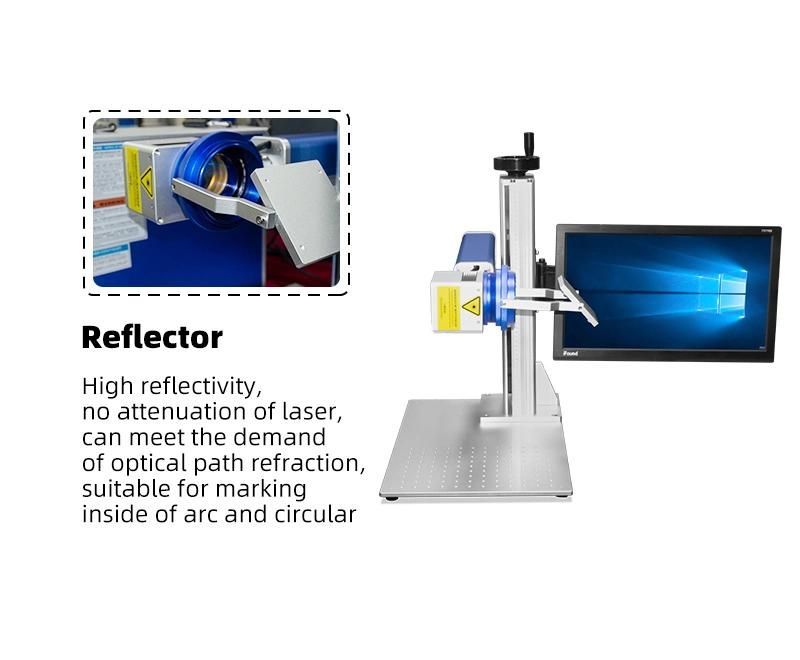

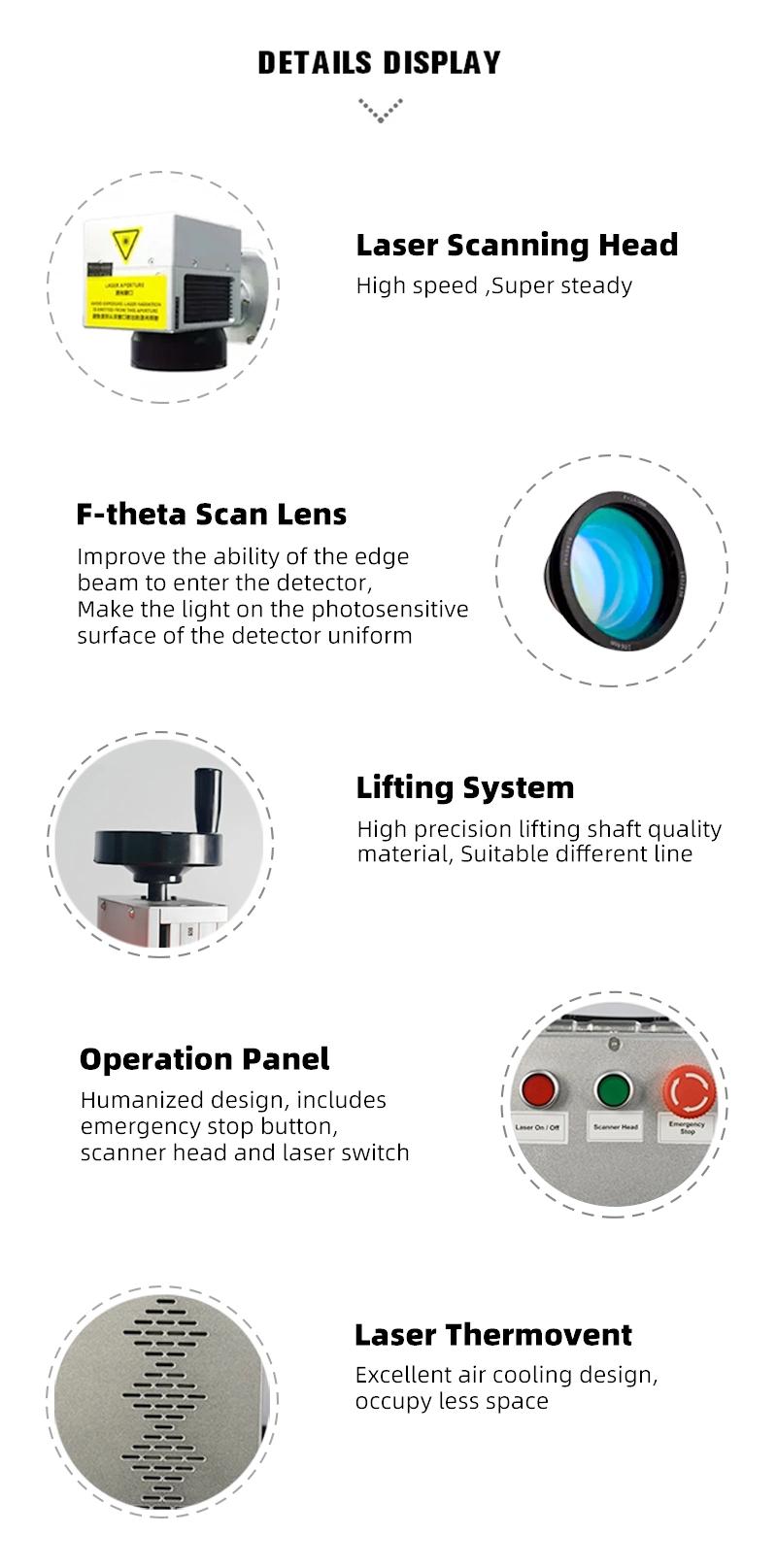

Product Details

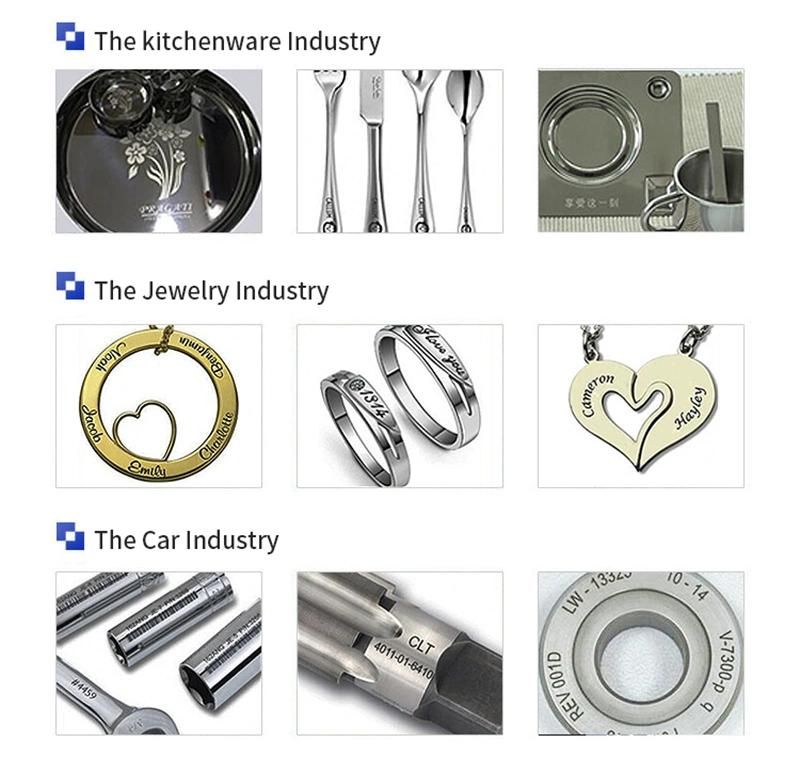

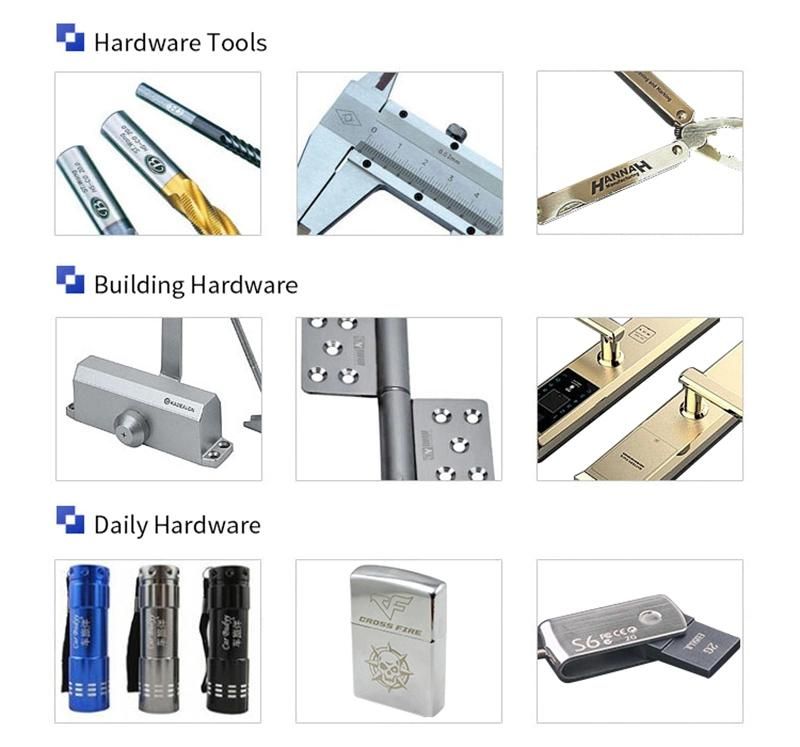

Product Samples





Other products

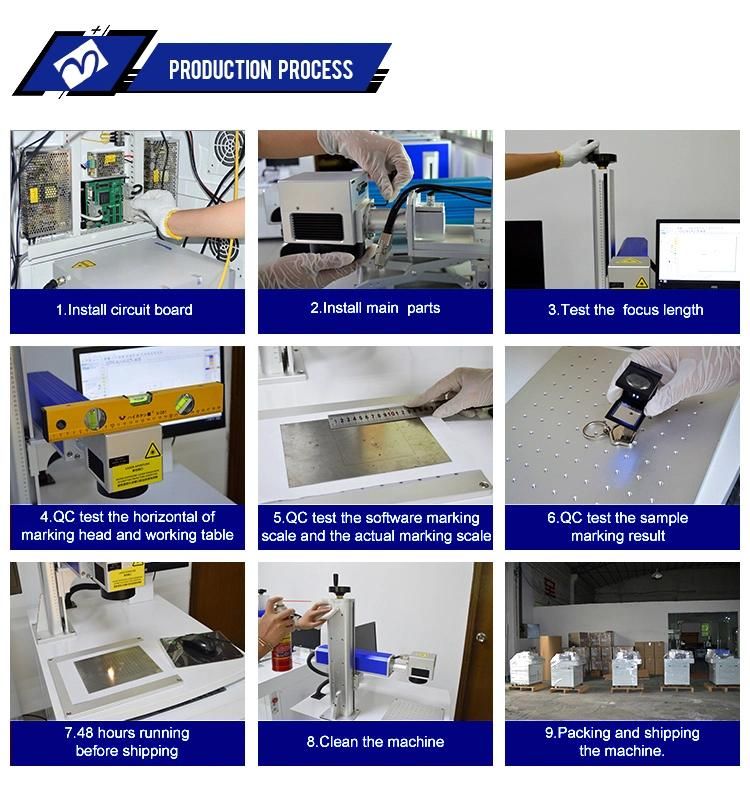

Production Process

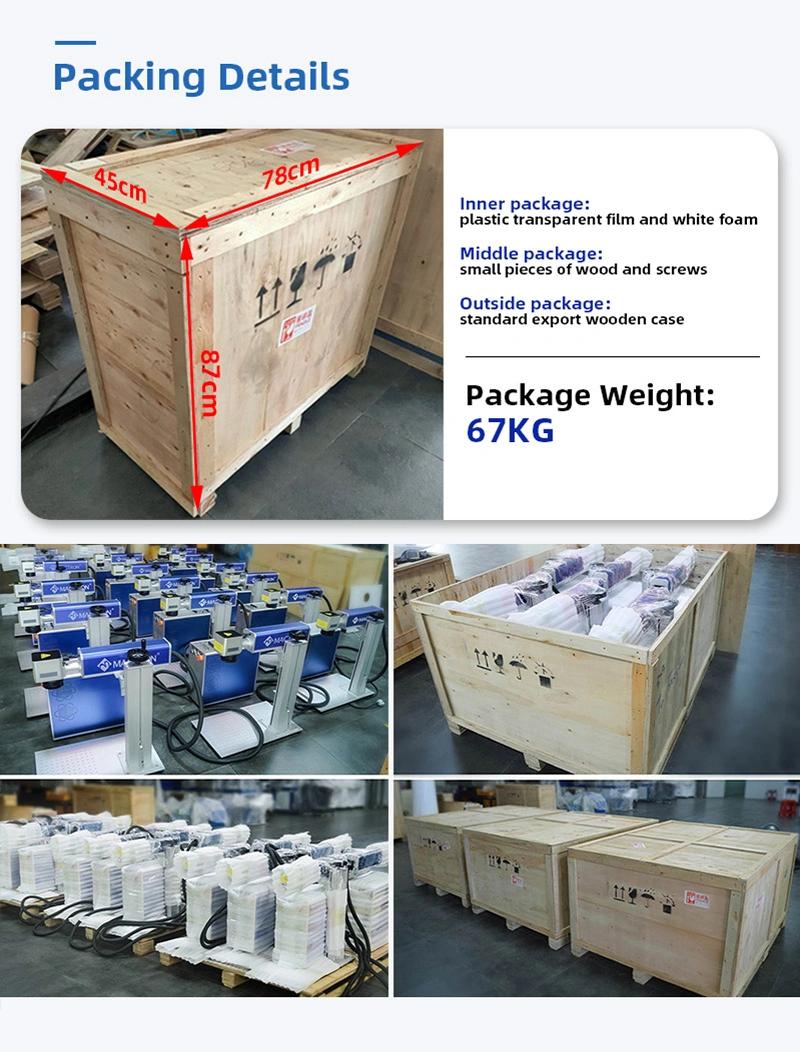

Packaging & Shipping


Company Information
Dongguan Mactron Technology CO.,Ltd is a new & hi-tech enterprise ,located in international famous manufacturing city--Dongguan,integrated the laser,precision machinery,CNC and modern management,specializing in developing ,manufacturing and selling of industrial laser equipment and customized automation device.
Mactron Technology relying on the wide range of IT information and Hi-tech human resource in Guangzhou,Shenzhen,Hongkong,Macao,Dongguan,as well as the Pearl River Delta's superiorities in manufacturing of advanced light industrial machinery and electronic products,the company has developed steadily for years,and has established modern standard manufacturing factory,the floor area is over 6000 square meters,over 50 sets of precision machining equipment and a variety of professional skills of highly qualified staff,and to establish a long-term stable cooperative relationship with the interaction of universities,research institutions.
