30W Flying Production Line Laser Marking Machine with Conveyor Belt
Jinan Lansen Laser Equipment Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
Base Info
- Model NO.：Flying laser marking machine
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Fiber Laser：Raycus 30W
- Comtrol System：Jcz
- Operation System：Microsoft Windows 7. 8. 10 System
- Power Supply：220V,60Hz(110V,60Hz Can Choose)
- Laser Type：Fiber Laser(CO2 Laser Source Optional)
- Transport Package：Wood Boxes
- Specification：Working area: 110*110mm
- Trademark：Lansen
- Origin：China
- HS Code：8456110090
Description
Marking content support
Import vector files like PLT,
Add Barcode, QR code
Add Text, series number, etc.in SHX, TTF and CSF.
Working area
110*110mm(Standard),
50*50mm,75*75mm,150*150mm,175mm*175mm,200*200mm,300*300mm(Optional)
Marking depth
<1mm
Marking speed
<7000mm/s
Min. line width
0.05mm
Repeatability accuracy
0.003mm
Power Machine
300W-800W(Depend on fiber laser power)
Operation temperature
-15~+60°C
Operating environment
Clean and free of dust
Warranty
Three years for laser source, one year for machine
Optional
Conveyor belt at different size/ CO2 laser source for nonmetal/ Auto feeding system
1. Sealed model no harm to your body, small window no harm to your eye.
2. With auto focus function, easy operate.
3.Connect to air cleaner, no smoke come out, suit work in any public area like hall, shoppingcenter,etc.

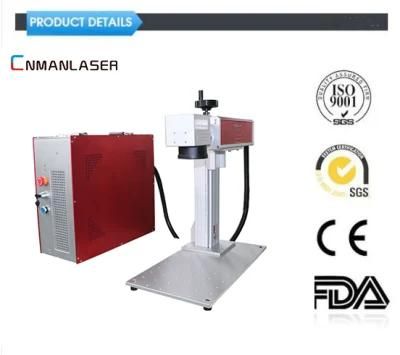

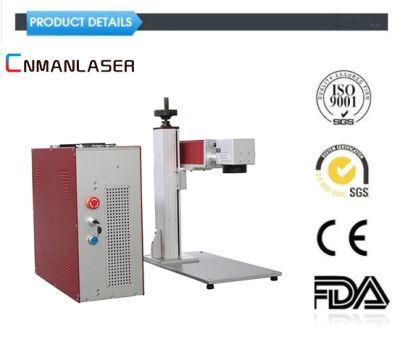

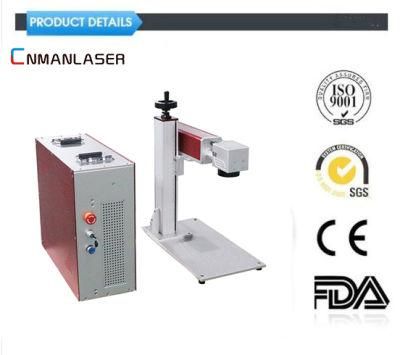

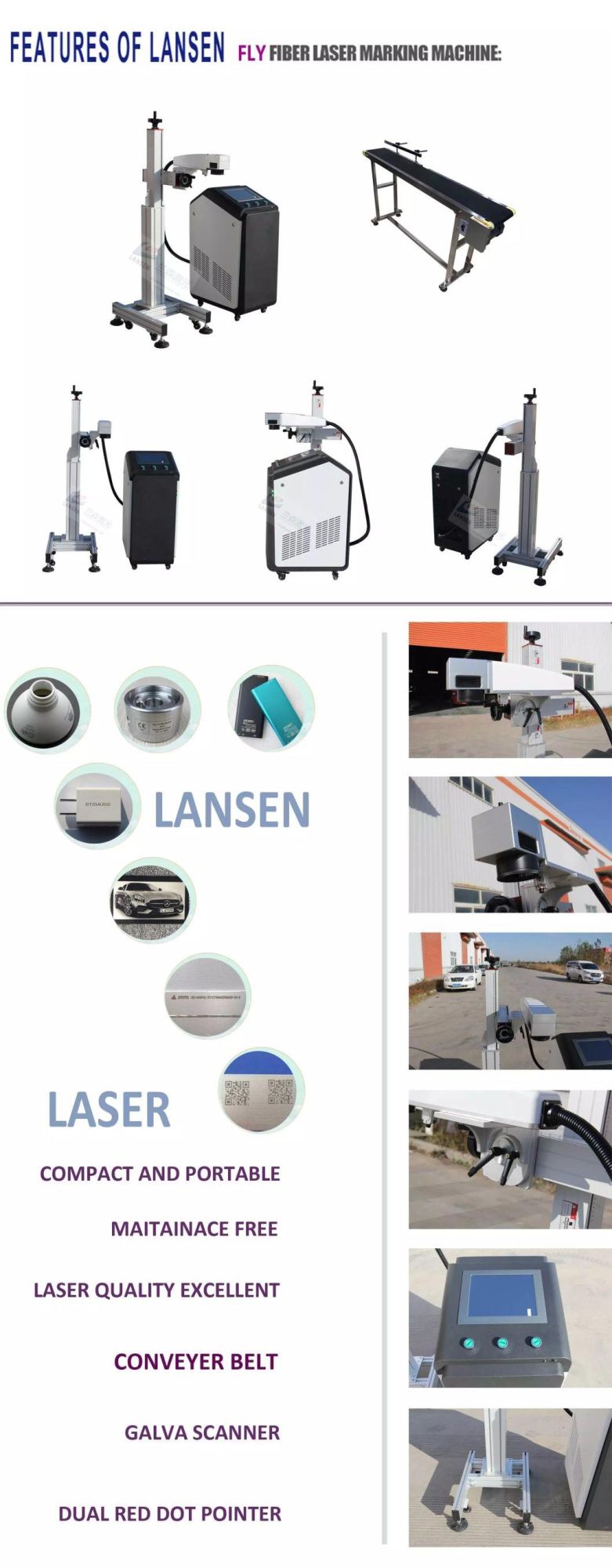

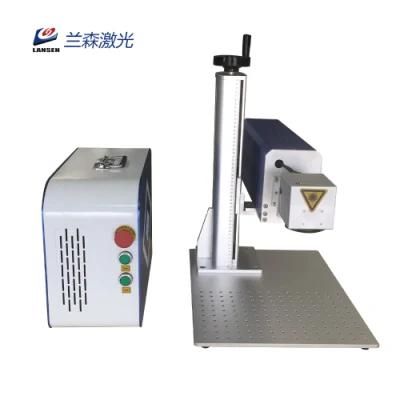

Machine details:
Applications:
Aplicable Industries:
1. Electrical Engineering and Electrical part and component
2. Mobile (Cover, battery, keyboard, IPhone Case)
3. Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4. Building materials,PVC pipe
5. Car motor car spare part, Instrument and meters and cutting tool
6. plastic case,aviation and aerospace,
7. military product,hardware fitting and accessory,sanitary appliance
8. food and beverage ,Medicine package and medical instrument,solar Pv industry
Applicable Materials:
1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
2.Alloy and metal oxides: Anodized Aluminum
3.Some non-metallic materials & Special surface treatment:
silicon wafer, Poly,urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.
Warranty:
- 24 Months for Machine
- Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
- Lifely and fast technical guide and solution within 24hours by email and web camera.
