• Model NO.：MT-1313MN
• Location Precision：±1.015mm
• Repeated Positioning Accuracy：0.15-0.3mm
• Power Source：AC110,220V ± 10%,50,60Hz
• Working Temperature：0-40ºC
• Gross Power：<4kw
• Humidity：5% to 85% (No Condensed )
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：50sets,Month

Basic Info.

Model NO. MT-1313MN Location Precision ±1.015mm Repeated Positioning Accuracy 0.15-0.3mm Power Source AC110/220V ± 10%/50/60Hz Working Temperature 0-40ºC Gross Power <4kw Humidity 5% to 85% (No Condensed ) Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 50sets/Month

Product Description

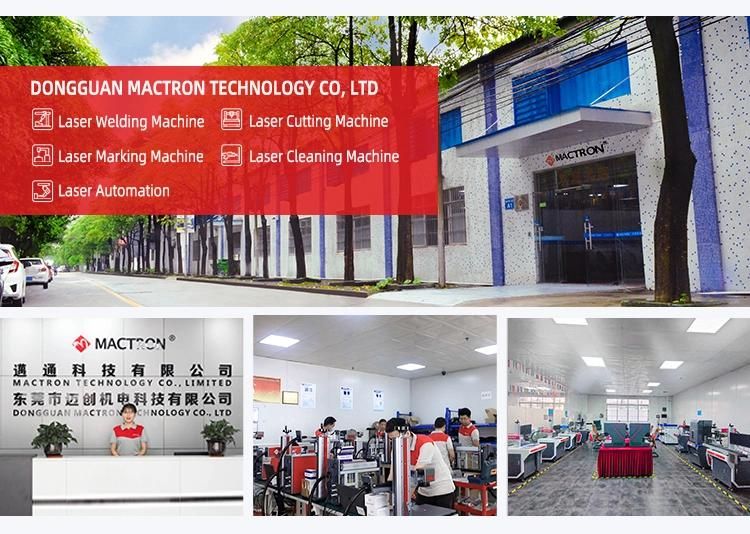

Company Information
Dongguan Mactron Technology CO.,Ltd is a new & hi-tech enterprise ,located in international famous manufacturing city--Dongguan,integrated the laser,precision machinery,CNC and modern management,specializing in developing ,manufacturing and selling of industrial laser equipment and customized automation device.

Mactron's mainly product is including:
Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Mini Laser Engraver, CNC Laser Cutter, YAG Laser System, Diode Pump Laser Equipment, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer, Krypton Lamp and accessories etc.

Mactron Technology's business tenet is "Do Honest Bussiness ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"


Certifications


Product Description

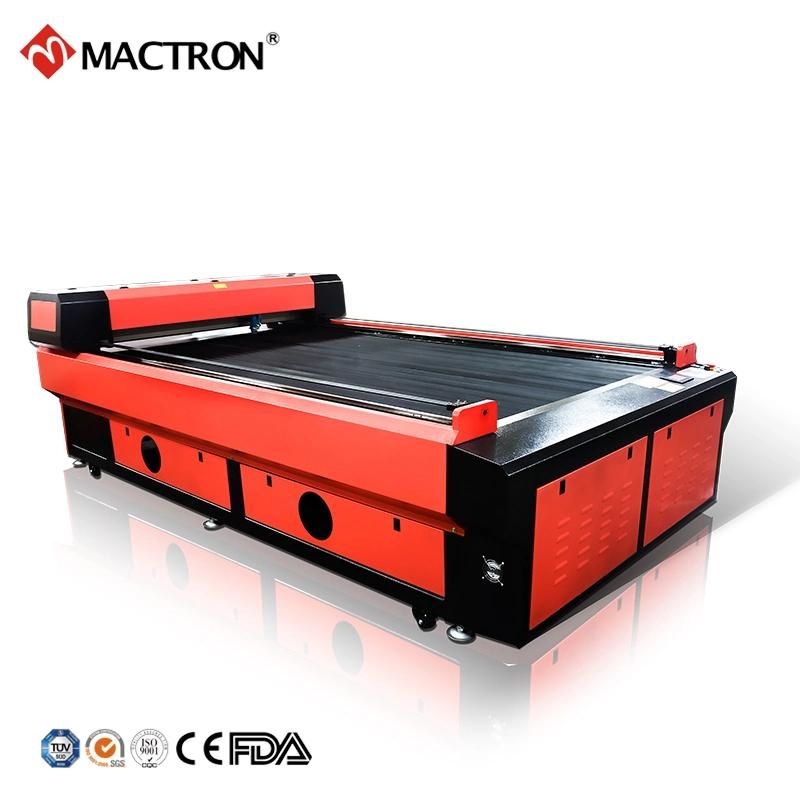

MT-MN series metal and nonmetal laser cutting machine is suitable for metal and non-metal sheet cutting, which is equipped with steel welded frame, stable, good rigidity, high dynamic response that ensures no deformation on long-term working condition.
Multifunctional laser cutting head suitable metal and nonmetal materials cutting. Fixed optical path compensation system ensures consistency of laser spot quality within the whole cutting area. Imported linear guide and screw transportation system with high rigidity, high transmission torque, and eliminating vibration, over fiber times higher in accuracy compared with the belt transmission system.
Self-developed new generation touch screen motion controller with touch-screen software design. The control system supports automatic focusing for metal cutting and nonmetal processing, which makes to cut various material thickness easily with good effect.




Applicable Material
Widely applied to large format material cutting, such as carbon steel, stainless steel, acrylics, MDF and etc.

Applicable Industry
Applicable Fields:advertisement making, thin metal processing, die-boards cutting etc.



Parameters

Laser Type	CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power	150W/200W/300W/400W/600W (Optional )
Wavelength	10.6um
Cutting Speed	Max.30M/Min
Focal Length	50.8,63.5,76.2,127mm
Cooling Mode	Water Cooling and Protection System
Location Precision	0.05mm
Controlling Formats Supported	DSP High Speed Controller
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-40ºC
Warranty	1 Year
Beam Quality	<1.2M2
Humidity	5% to 85% (No Condensed )
Gross Power	<4000W
Min.Line Width	0.15-0.3mm
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	2500*1300mm(Optional)
Working Environment	Clean, Free of Dust
Safety Protection Class	Ip54
Laser Generator Safety Class	IV

Machine Advantages
1) Can cut lines and holes with different diameters from different directions on the pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
2) Can cut column Crossed Lines at the end of branch pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
3) Can cut inclined section at the end section of the pipe.
4) Can cut branch pipe intersected with the main circular pipe.
5) Can cut variable angle bevel surface.
6) Can cut square hole, waist-shaped holes and circular hole on the pipe.
7) Can truncate the pipe.
8) Can cut all kinds of graphics on the surface of the square pipe.

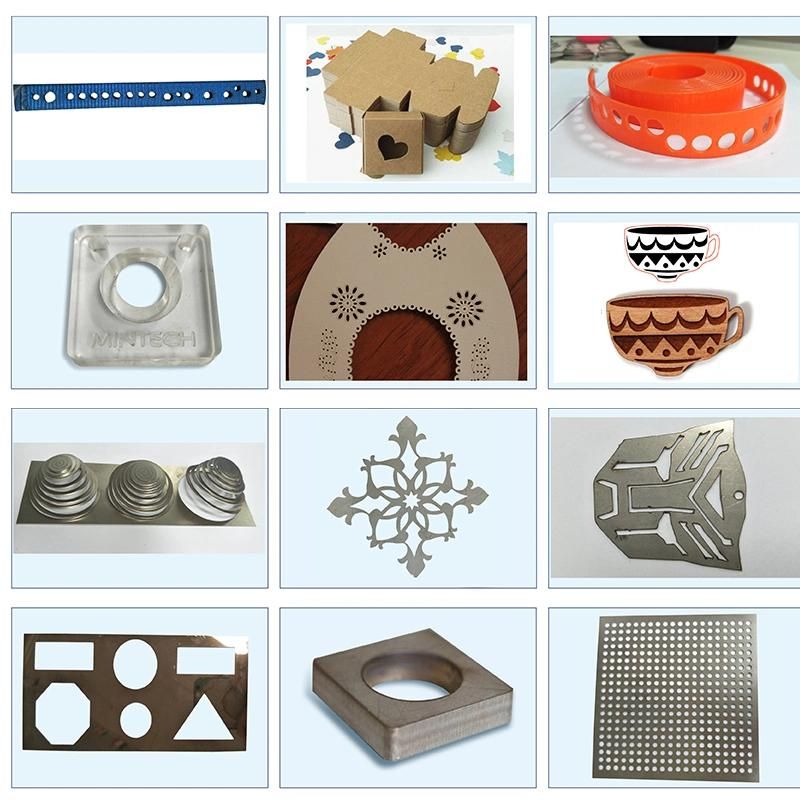

Product Sample Display

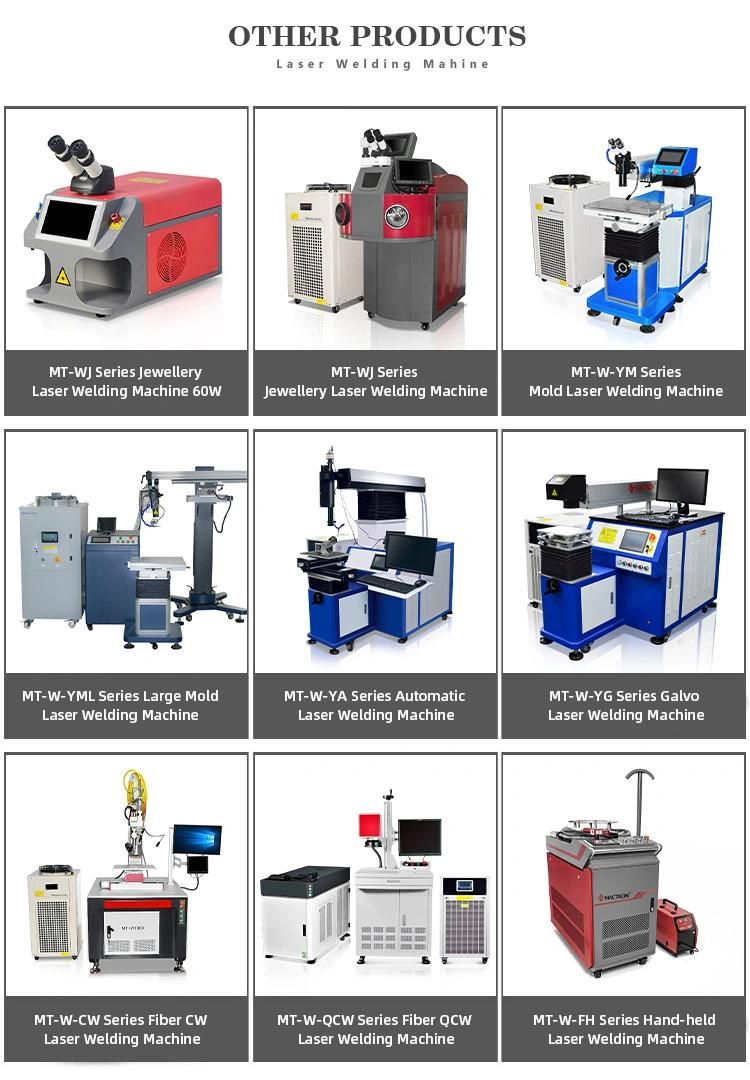

Other Product Recommendation

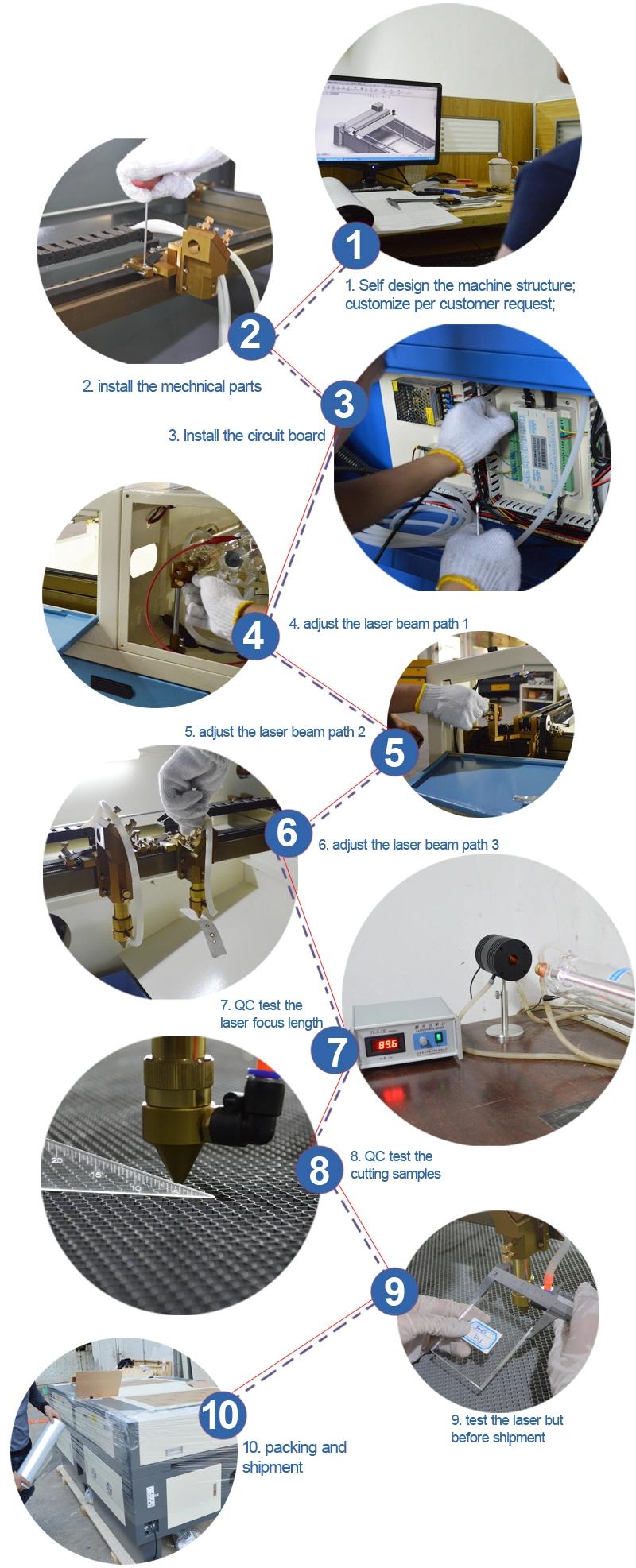

Production Process


Packaging & Shipping



FAQ

Q:What are the primary products of your company?
A: Our primary products include laser engraving machine, laser marking machine, laser cutting machine, laser welding machine, and laser spare parts.

Q: How can you guarantee that I have a good sale on this product?
A: We offer professional technology and after-sale service.

Q: How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience. At the same time, you can send us the sample for testing.

Q:Which countries are your laser machinery sold to?
A: Our laser machine sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.

Q:What certificate has your company got?
A: All of our laser marking machine with CE, ISO, SGS

Q: How long is the delivery time?
A: The laser marking machine will be delivered to you within 1-2 weeks after the order is confirmed.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: What's the package?
A: We have 3 layers package. For the outside,we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 200 countries worldwide. So please don't worry, you will receive the parcel in good condition.
