Desktop Typ High Precision Affordable RF Flying CO2 Laser Marking Machine
Shenzhen Dapeng Laser Technology Co., Ltd.- Laser Visibility：Visible
- Applicable Material：Nonmetal
- Cooling System：Air Cooling
- Technical Class：Continuous Wave Laser
- Laser Wavelength：LD Single-end Pumped ND:YAG Laser
- Laser Classification：Free Electron Laser
Base Info
- Model NO.：CO2-10, 20DW1
- Type：CO2 Laser Marking Machine
- Marking Method：Scanning Marking
- Transport Package：Prewood
- Specification：New produces
- Trademark：Dapeng
- Origin：China
- HS Code：84561000
- Production Capacity：200sets,Month
Description
Our CO2 laser marking machine adopts the best quality CO2 laser source in the world. The estimated life for laser source will be around 100,000 hours, which is 10 times longer life than diode laser and 2 times longer life than other laser source.
The portable CO2 laser marking machine is very easy to use, small, light, moveable.
Specification:
Laser wavelength | 10.64μm |
Power adjustment range | 10-100% |
Repeat Accuracy | ≤25KHz |
Laser Device | China |
Marking linear depth | 0.01-0.2mm |
Min. Spot diameter | 0.01mm |
Min. Character size | 0.4mm |
Repetition accuracy | ±0.002mm |
Max. Liner marking speed | 7000mm/s |
Standard marking area | 100*100mm, 150*150mm or 180*180mm |
Power consumed | 500W |
Electrical demand | Ac220V±10%.50HZ |
Software | EZCAD |
Cooling mode | Air-cooling |
Operational Temp Range | 10-40ºC |
Specifications:
Model CO2-20,30,50HLaser Power:10W,20W,30WWavelenth:1064nmStandard Marking Area:100mm*100mmOptional Marking Area:160mm*160mm,200mm*200mmMarking Speed:≤7000mm/sMinimum Line Width0.02mmMinimum letterEnglish: 0.2 x 0.2mmMarking Depth0 ~0.5mmLocation precision≤0.01mmResetting positioning accuracy0.002Beam QualityM2:1.2~1.8Electrical Requirements:Ac220V±10%.50HZ.5AmpCooling modeAir cooledScan HeadHigh Precision Digital Scan HeadUnit Power<0.5kwOperational Temp Range10-40COperational Humidity Range5%-75%, Non-condensingWarranty:2 years on laser sourceDimensions:25*60*80MMNet Weight38KG
Software:True Type FontsSingle Stroke FontsElliptical TextSequential Serial NumbersCustomizable Auto DatingBarcodesQR Codes and Data MatrixUID WizardLogosPhoto Quality Images - JPG, TIF, GIFCorel Draw, Adobe IllustratorRaster GraphicsVector GraphicsCAD Files

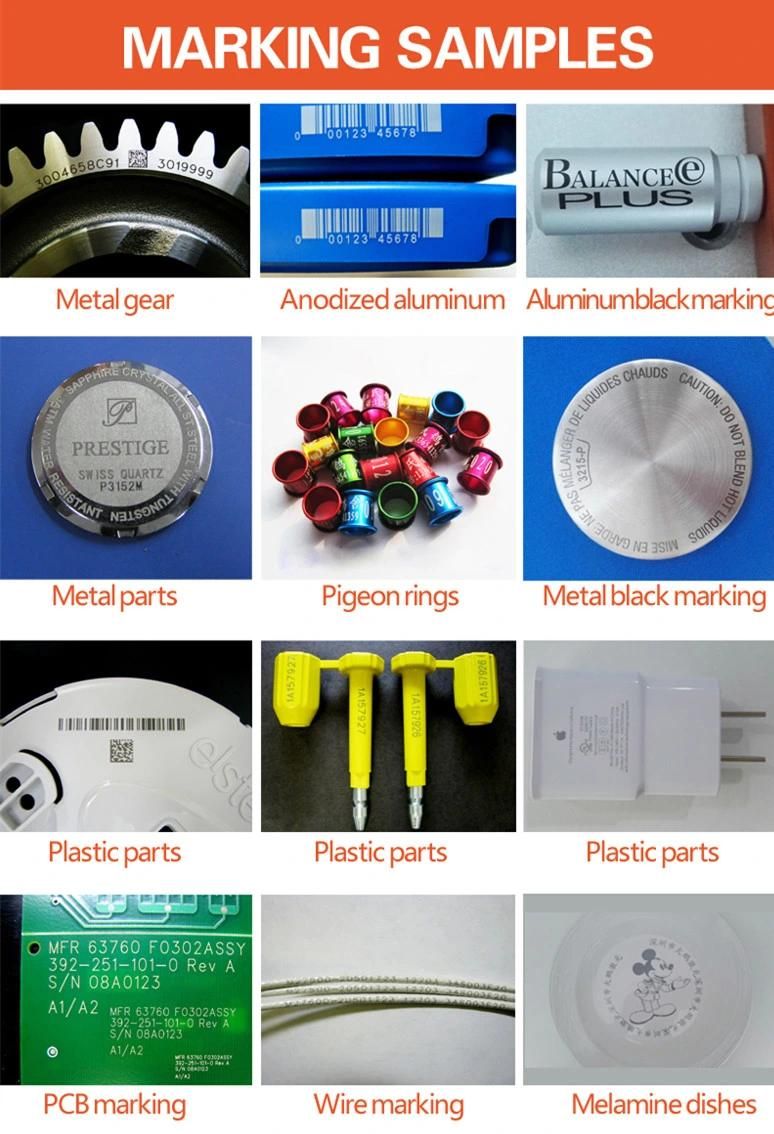

Applications:
We offer Fiber Laser Marking Machine with following applications:
l Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
l Hall marking on Gold
l Automotive & Engineering Industries
l Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
l Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making
We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.
Materials:Stainless SteelSteelAluminum, CarbideNickelTitaniumCast IronChromePainted Metal AlloysMulti-Coated MetalsPlastics/RubberBacklit ButtonsPolycarbonatePVCCompositesMany more materials
