• Model NO.：PEDB-600
• Laser Classification：Fluid Laser
• Engraving Method：Vector Engraving
• Marking Area：110*110mm, 175*175mm
• Laser Type：Fiber Laser
• Usage：Glass, Rubber, Cloths, Wood, Plastic
• Laser Output Power：10W, 30W, 60W
• Laser Wavelength：1064um
• Marking Speed：250 Characters , Second
• Minimal Character Size：0.25mm
• Minimal Line Width：0.015mm
• Power Supply：380V , 50Hz
• Cooling Method：Air-Cooling
• Transport Package：Wooden Case
• Specification：ISO9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Units, Month

Basic Info.

Model NO. PEDB-600 Laser Classification Fluid Laser Engraving Method Vector Engraving Marking Area 110*110mm/ 175*175mm Laser Type Fiber Laser Usage Glass, Rubber, Cloths, Wood, Plastic Laser Output Power 10W, 30W, 60W Laser Wavelength 1064um Marking Speed 250 Characters / Second Minimal Character Size 0.25mm Minimal Line Width 0.015mm Power Supply 380V / 50Hz Cooling Method Air-Cooling Transport Package Wooden Case Specification ISO9001 & CE Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 50 Units/ Month

Product Description

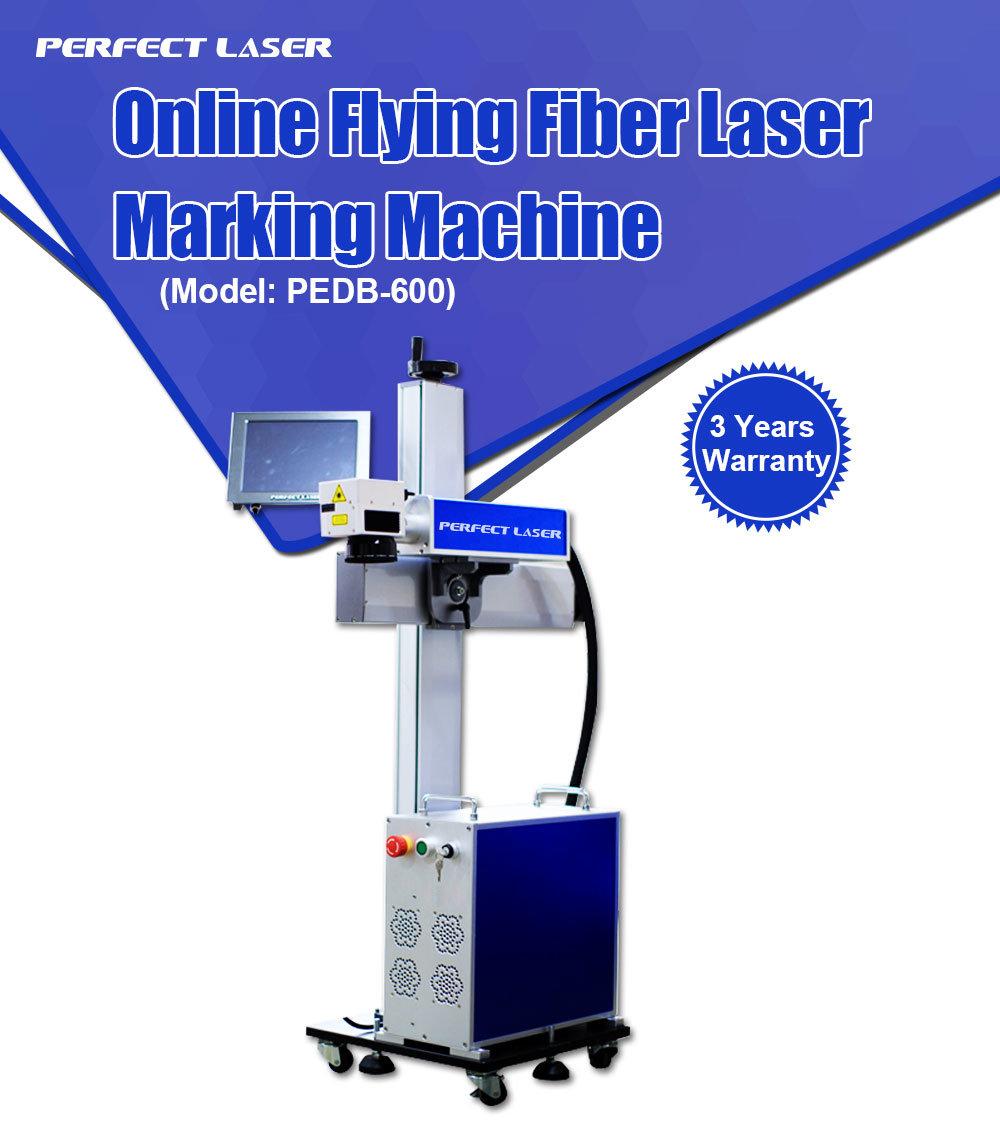

Laser Marking Machine for Plastic Bottle for Production Line


Laser Marking Machine Application:
Laser online marking machines are widely used in food, beverage, alcohol, electronic components, handicrafts, chemical and industrial building materials, cables, card printing and other products. They're used to mark expiry date, batch number, shift, bar code, manufacturer's name and logo, etc.. They can mark on metal, plate coating layer on metal surface, PVC, PET, ABS, PP and PS, etc..



Laser Marking Machine Working Principle:
When the marked product goes through the laser marking machine on the production line, the photoelectric sensor gives a trigger signal. At the same time, the marking software obtains the current speed of production line by high-speed encoder and automatically amends and compensates for the marking pattern. The laser and galvanometer controlled by bus board emit light according to the corrected pattern to mark the online product accurate.

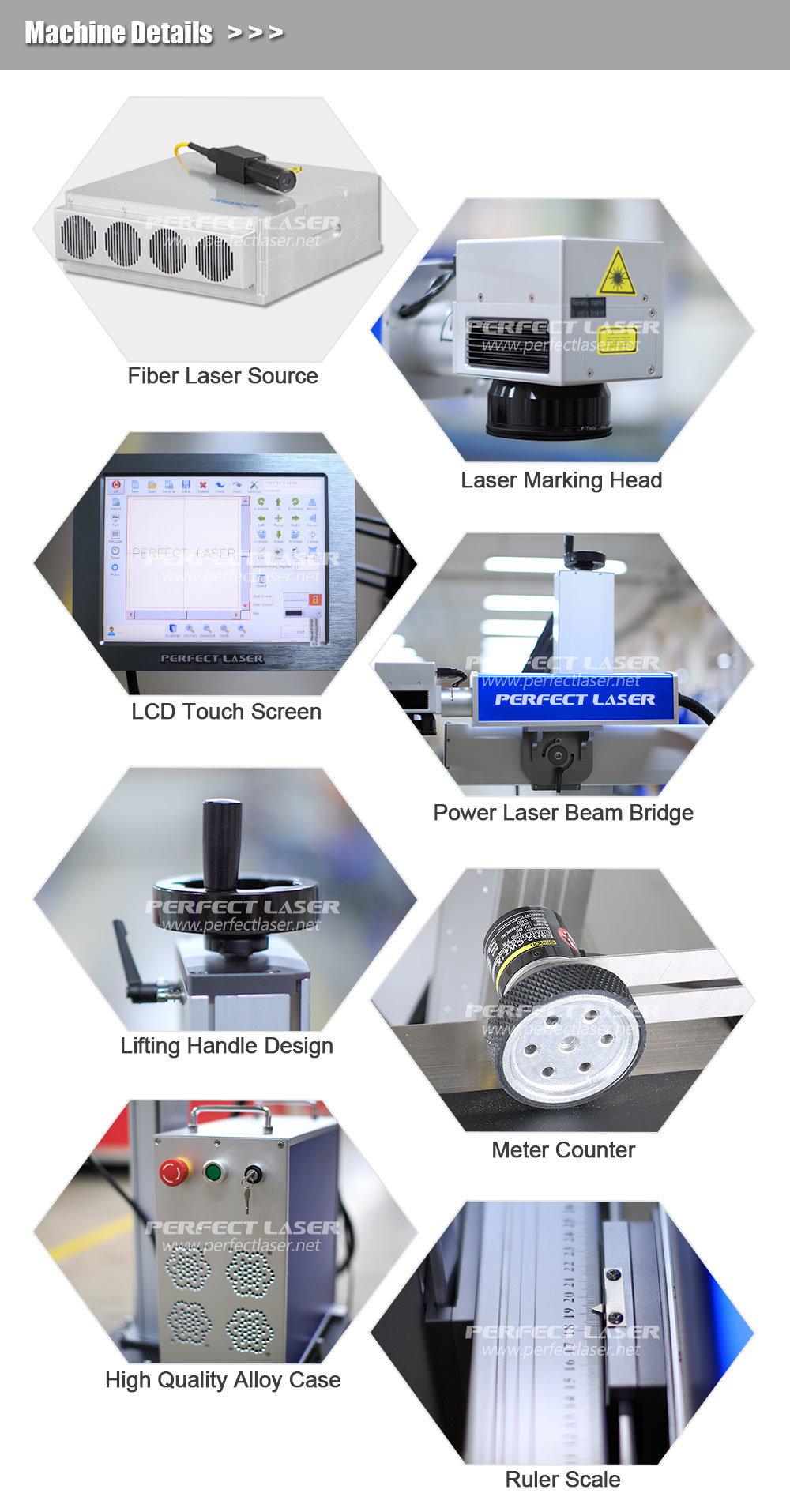

Laser Marking Machine Hardware Features:
The marking process is automatic, high-speed and efficient. The marking effect is fabulous;
It uses self R&D fiber laser, which has advantages of high optical conversion efficiency, small size, low cost, no consumables and maintenance-free;
It bears the capability of 7*24 hours continuous working, which can meet the requirements of large-scale online continuous production;
It can achieve the communication without delay between the laser and the bus board. Compared with the product equipped with the same configuration, the marking speed has doubled;
It adopts the special scanning galvanometer system of the marking system, which can not only improve the overall stability of the product, but also guarantee the good quality in high-speed marking.




Laser Marking Machine Technical Data:

Laser type	Fiber laser	Maximum scanning speed	10000mm/s
Laser wavelength	1064nm	Cooling	Forced  air
Average output power	20W(optional)	Supply requirements	220V 50Hz
Repetition frequency	20kHz-60kHz	Consumption	≤0.5kw
Line width	0.15mm	Environmental temperature	-5ºC-45ºC
Minimum character height	0.5mm	Environmental humility	10%-90%
Marking range	110mm×110mm (differing from the lens)	Maximum speed  adapting production line	200m/min(differing from the  contents and materials)
Marking lines	Random in range	Software	Special system
Displacement accuracy	±0.001mm	Hand-held display terminal	10.2 inc

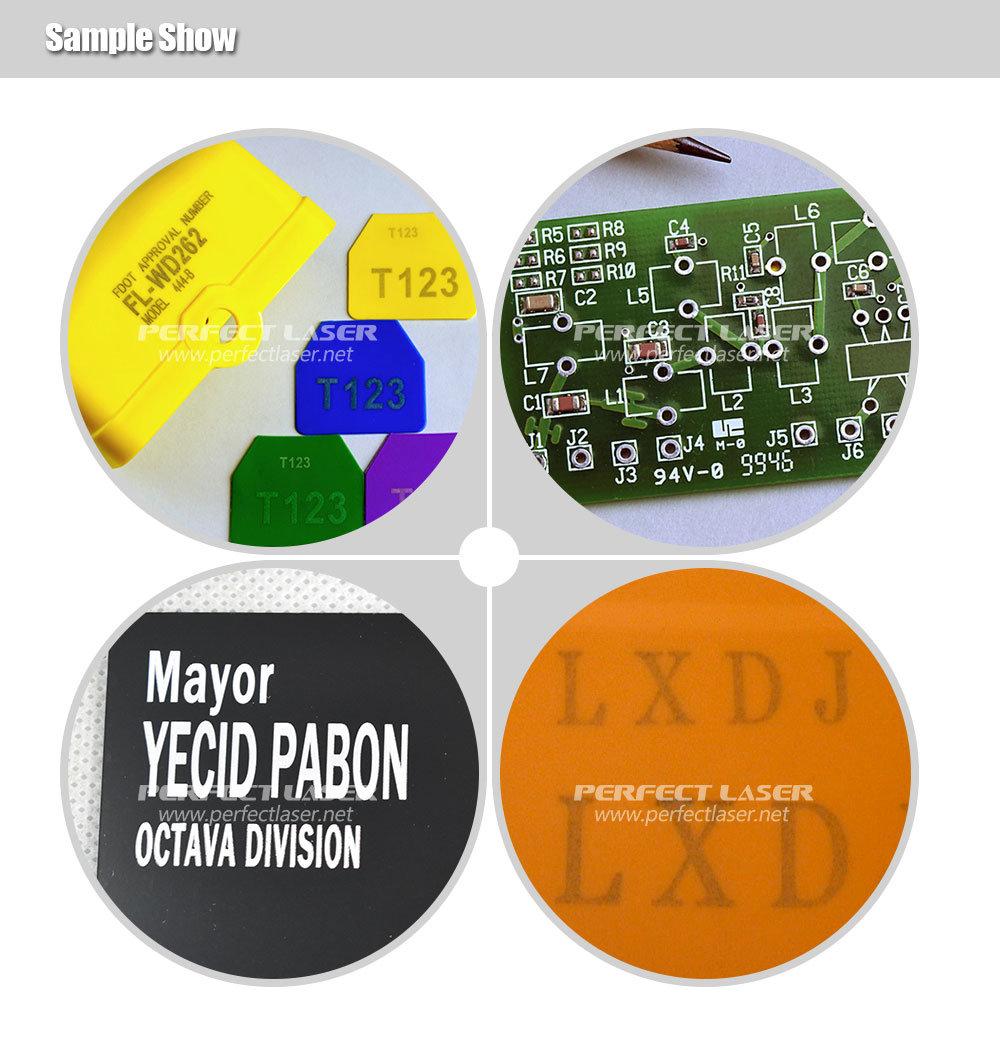

Laser Marking Machine Samples Picture:

Company information
Perfect Laser is a world famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.

We have attended lots of internal and overseas exhibition, such as India exhibition, Shanghai Exhibition, Guangzhou exhibition, Germany exhibition etc.
Every year, lots of global customers has visited our factory and looking for collaboration with us, such as USA, UK, Germany, poland, Italy, Iran, Vietnam.. We all have business partners!


Our service
1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a12 months quality guarantee period.
2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports,  by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.
