• Model NO.：1500W
• Laser Classification：Optical Fiber Laser
• Type：Silicon Steel Sheet Laser Welding Machine
• Model：Zpg-1500W Handheld Laser Welding Machine
• Laser Power：1000W,1500W,2000W,3000W
• Laser Wave Length：1080nm
• Welding Speed Range：0-120mm,S
• Welding Gap：≤1,10 of The Thickness of Sheet Metal
• Fiber Length：Standard 10m
• Cooling Mode：Water Cooling
• Electromechanical：380V,50Hz
• Consumable：Nitrogen Welding, Output Pressure 0.2MPa
• Total Power：8kw
• Dimensions：1300X750X1200mm
• Total Weight：150kg
• Transport Package：Woden Box
• Specification：1000W,1500W,2000W,3000W
• Trademark：ZPG
• Origin：China
• HS Code：845611
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. 1500W Laser Classification Optical Fiber Laser Type Silicon Steel Sheet Laser Welding Machine Model Zpg-1500W Handheld Laser Welding Machine Laser Power 1000W/1500W/2000W/3000W Laser Wave Length 1080nm Welding Speed Range 0-120mm/S Welding Gap ≤1/10 of The Thickness of Sheet Metal Fiber Length Standard 10m Cooling Mode Water Cooling Electromechanical 380V/50Hz Consumable Nitrogen Welding, Output Pressure 0.2MPa Total Power 8kw Dimensions 1300X750X1200mm Total Weight 150kg Transport Package Woden Box Specification 1000W/1500W/2000W/3000W Trademark ZPG Origin China HS Code 845611 Production Capacity 100 Sets / Month

Product Description

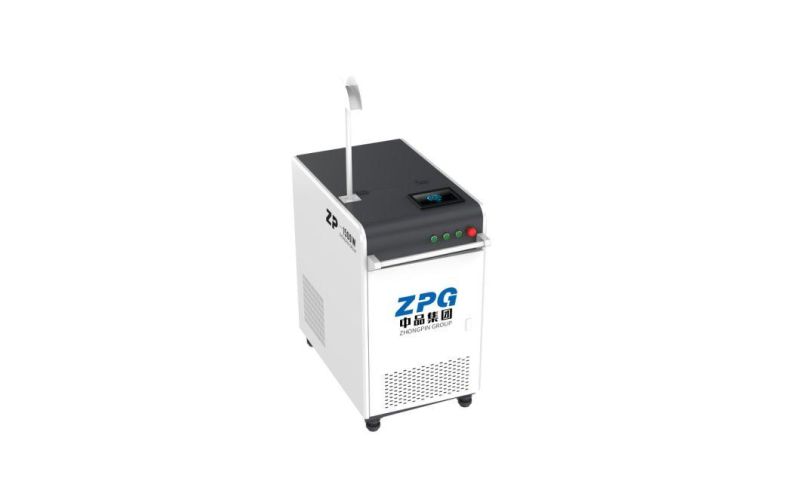

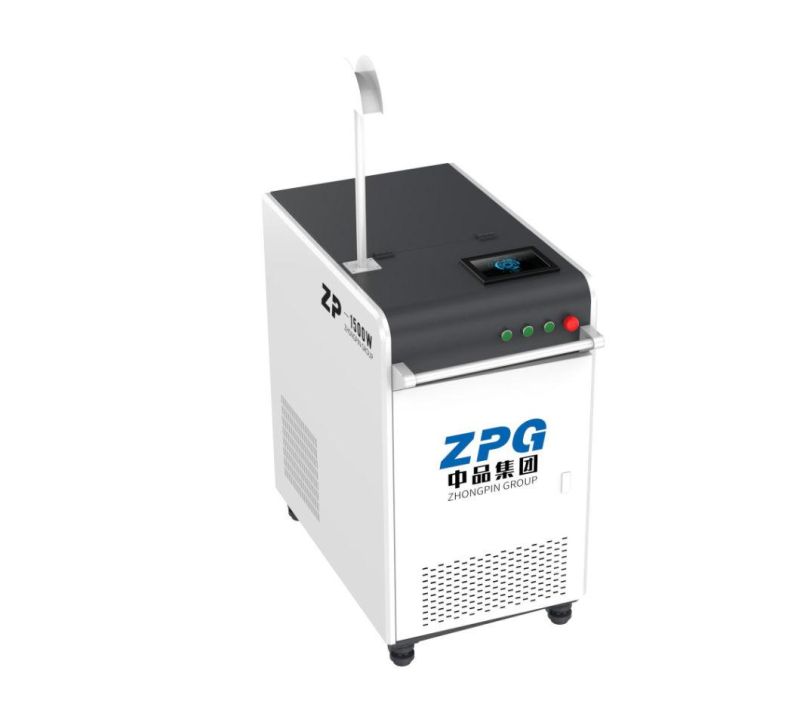

Introduction of ZPG-1500w laser welding machine
The handheld laser welding machine is the preferred model in the metal material welding and processing industry.The machine can weld all kinds of metal. The welding seam is beautiful and firm, and the operation is simple, fast, flexible and low in processing cost.

Fiber laser welding machine is to couple the laser beam to the optical fiber, after long-distance transmission, and then convert it into parallel light through collimating mirror, and finally focus on welding on the work-piece.

The non-contact method is adopted for the difficult parts of the optical fiber laser welding machine, and the welding mode is more flexible. Laser beam achieves the separation of time and energy, and multi-beam processing makes welding more accurate.

Configuration

Model	ZPG-1500w handheld laser welding machine
Laser device	1000W,1500W,2000W,3000W
Laser wave length	1080nm
Welding speed range	0-120mm/s
Welding gap	≤1/10 of the thickness of sheet metal
Fiber length	Standard 10m
Cooling mode	Water cooling
Electromechanical	380V/50HZ
Consumable	Nitrogen welding, output pressure 0.2Mpa
Total power	8KW
Dimensions	1300X750X1200mm
Total weight	150KG

 Application

Laser welding machine is not only used for welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, but also for welding various materials, such as copper-brass, titanium-gold, titanium-molybdenum, nickel-copper and so on.
1. Welding material - Laser welding machine is not only used for welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, but also for welding various materials, such as copper-brass, titanium-gold, titanium-molybdenum, nickel-copper and so on. 2. Welding range:0.5~5mm carbon steel,0.5~5mm stainless steel,aluminium alloy 0.5~4mm,brass 0.5~2mm;

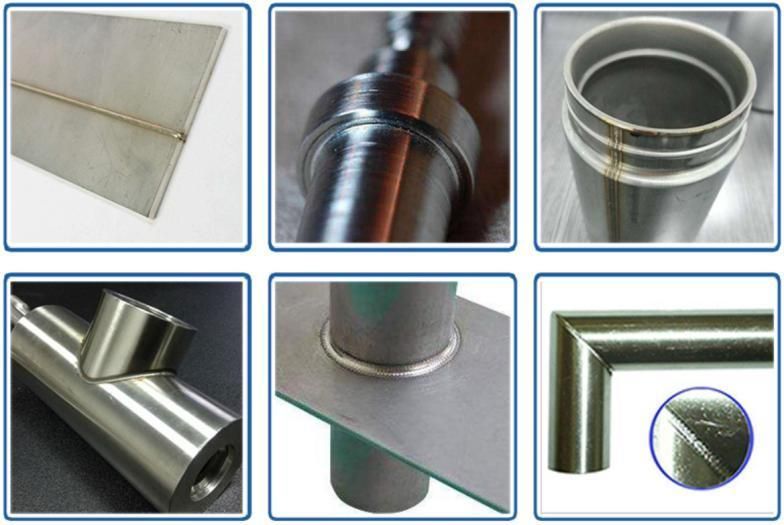

3. Unique welding function:Hand-held welding can meet the requirements of square tube welding, round tube butt welding, plate tube welding,etc. The machine can be customized for all types of tooling.Samples Show
