GS-G Serise Single Platform Pipe & Metal Plate Laser Cutting Machine
Dongguan Glory Star Laser Technology Co., Ltd.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Fiber Laser
Base Info
- Model NO.：3015,4015,4020
- Laser Technology：Laser Control Fault Cutting
- Laser Type：Fiber Laser Generator
- Working Area：3000mm*1500mm
- Laser Power：500W,1000W
- Laser Wavelength：1064nm
- Repeat Positioning Accuracy：≤0.03mm , M
- Working Voltage：3 Phase 380V ±5% , 50Hz, 60Hz, 100A
- Maximum Cutting Speed：30 M, Min
- Minimum Line Width：0.15mm
- Maximum Cutting Thickness：10mm
- G.W.：5.0t
- Transport Package：Packaged by Plywood
- Specification：CE, ISO, SGS, FDA
- Trademark：Glorystar
- Origin：Guangdong, China
- HS Code：8456100090
- Production Capacity：8000sets,Year
Description
Basic Info.
Model NO. 3015/4015/4020 Laser Technology Laser Control Fault Cutting Laser Type Fiber Laser Generator Working Area 3000mm*1500mm Laser Power 500W/1000W Laser Wavelength 1064nm Repeat Positioning Accuracy ≤0.03mm / M Working Voltage 3 Phase 380V ±5% / 50Hz/ 60Hz/ 100A Maximum Cutting Speed 30 M/ Min Minimum Line Width 0.15mm Maximum Cutting Thickness 10mm G.W. 5.0t Transport Package Packaged by Plywood Specification CE, ISO, SGS, FDA Trademark Glorystar Origin Guangdong, China HS Code 8456100090 Production Capacity 8000sets/YearProduct Description

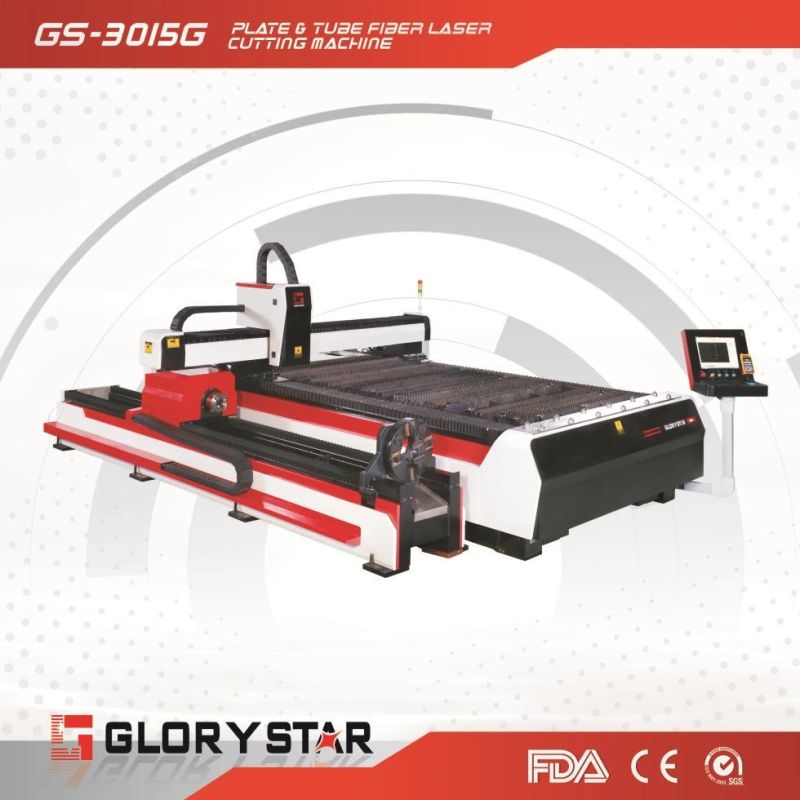

GS-G Serise Single platform pipe & metal plate laser cutting machine
Machine Features
Integrated machine design, cutting metal sheets and metal pipes in one machine, cost-saving and high performance-price ratio.
The frame is precisely welded by argon arc, whole structure is gantry type.
600 ºC high temperature annealing treatment and 12 meters large CNC gantry fine milling.
Equipped with the most advanced wireless handheld terminal.
The machine adopts imported Germany CNC system
High-performance AC servo motor.
High-strength cast-aluminium cross girder.
It's a high-tech product integrated with advanced technology such as pneumatic, mechanic, photoelectric and CNC, etc.
Configurations
1. Imported high precision ball screw transmission.
2. Imported high precision Taiwan linear guide rail.
3. Japan Panasonic servo motor and driver system.
4. German professional laser cutting head.
5. Imported French high precision gearbox,Optionally equipped with device for cutting round and square pipes.
Applicable Materials
Especially suitable for contact-free cutting, hollowing or drilling of metal sheets in 0.5mm to 14mm, e.g., stainless steel, carbon steel, galvanized sheet, thin aluminum and thin copper etc. Fast, precise and energy-efficient.
Technical Data
| Model No | GS-3015G |
| Laser Type | Fiber Laser Generator |
| Working Area | 3000mm*1500mm |
| Laser Wavelength | 1064 nm |
| Rated Output Power | 500W/1000W |
| Beam Quality | <0.373 mrad |
| X axis Travel Distance | 3030mm |
| Y axis Travel Distance | 1520mm |
| Z axis Travel Distance | 105mm |
| Cooling Mode | Water Cooling(1HP) |
| Repeat Positioning Accuracy | ≤0.03mm / m |
| Maxium Load of worktable | 800 KG |
| Working Voltage | 3 Phase 380V ±5% / 50Hz/ 60Hz/ 100A |
| Main power protecting level | Ip54 |
| Maximum Cutting Speed | 30 m/ min |
| Minimum Line Width | 0.15mm |
| Maximum Cutting Thickness | 10mm |
| G.W.: | 5.0T |
