• Model NO.：SCT-W1325Q3
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Working Area：1300*2500mm
• Table Type：Vacuum Table with T-Slot
• Spindle Power：3kw,4kw,5.5kw Optional
• Spindle Speed：0-24000rpm
• Z Axis Height：200mm
• Tools Diameter：3.175mm--12.7mm
• Controlling System：Ncstudio or DSP , Optional
• Max Engraving Speed：15m, Min
• Max Traveling Speed：25m, Min
• Transport Package：Wooden Packing
• Specification：3300x2700x1600
• Trademark：SCT
• Origin：China Jinan
• HS Code：8462411900
• Production Capacity：200 Pieces Per Year

Basic Info.

Model NO. SCT-W1325Q3 Laser Classification Gaseous Laser Engraving Method Vector Engraving Working Area 1300*2500mm Table Type Vacuum Table with T-Slot Spindle Power 3kw/4kw/5.5kw Optional Spindle Speed 0-24000rpm Z Axis Height 200mm Tools Diameter 3.175mm--12.7mm Controlling System Ncstudio or DSP , Optional Max Engraving Speed 15m/ Min Max Traveling Speed 25m/ Min Transport Package Wooden Packing Specification 3300x2700x1600 Trademark SCT Origin China Jinan HS Code 8462411900 Production Capacity 200 Pieces Per Year

Product Description

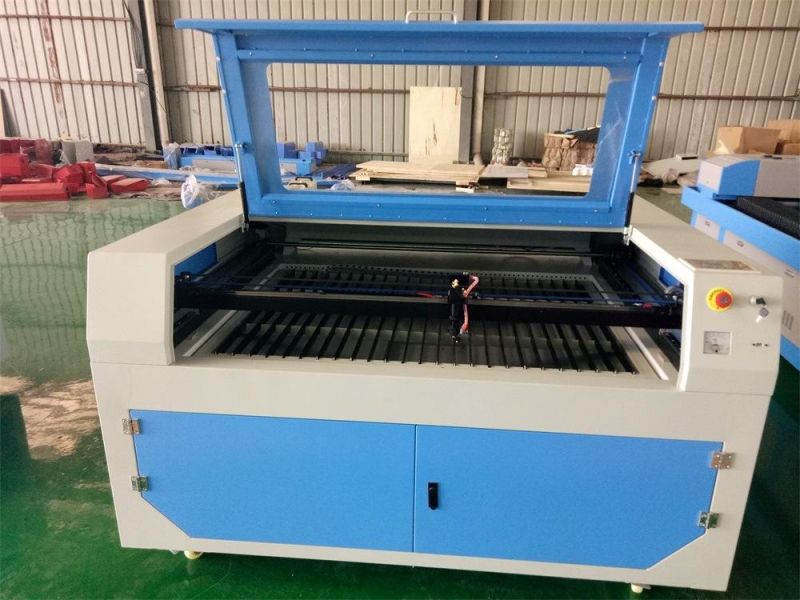

Description of CO2 Laser Engraving Cutting Machine:

With different working area/laser power, which can engrave/cut on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of nonmetal materials with complex shapes. Our Laser Engraving Machine is widely applicable for advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.

 Special Features of CO2 Laser Engraving Cutting Machine:

1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.

2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5) Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;

6) Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.

8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.

9) Red Light Pointerrealizes the exact position without laser.

10) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.

11) Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;

12) Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.

13) Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.

14) Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.

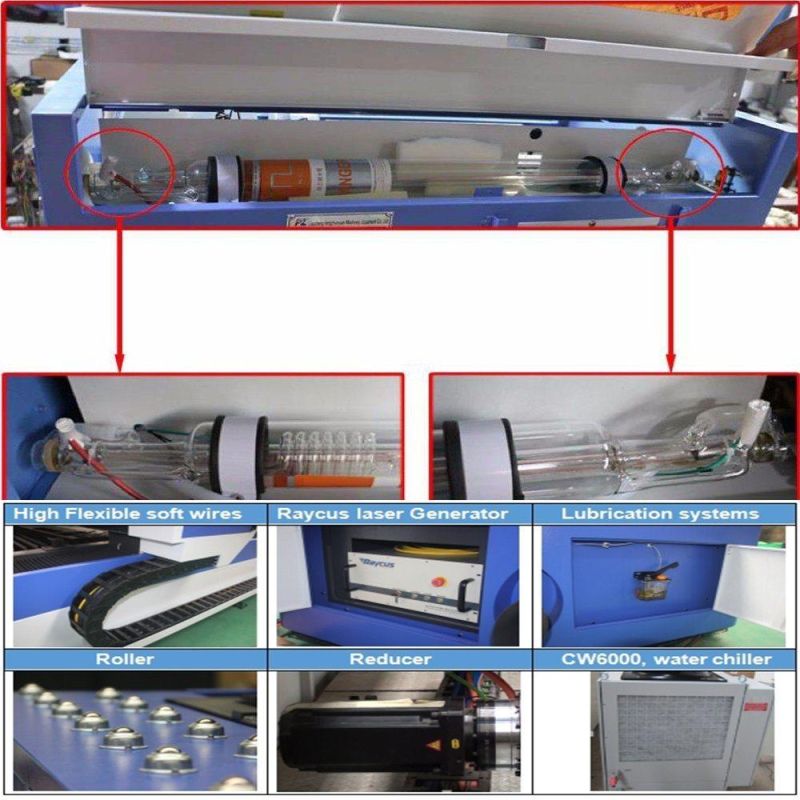

Details




Item	Paramters
Working  Area (X*Y)	1300*900mm
Laser tube type	CO2 sealed laser tube
Laser wave	10.6um
Cooling type	Water Chiller CW5000 / CW5200
Laser power	150W(Reci)
Engraving speed	0-60,000mm/min
Cutting speed	0-30,000mm/min
Reposition Accuracy	±0.01mm
Minimum Character Size	English:1mm ; Arabic numbers:1mm
Resolution	1,000--10,000 dpi
File output mode	2.0 USB interface
Machine Power	<3,000W
Power supply	220V/50HZ
Motor	Stepper
Graphic format supported	BMP, PLT, DST, DXF, AI
Control System	RUIDA6332M
Software	RDWORK
Software supported	CorelDraw,PhotoShop,AutoCAD,TAJIMA
Net Weight	400kg
Warranty	1 year for machine (10 months for RECI tube)

Our Packing and shipping:



After-sales Services:
1.2 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
