• Model NO.：YDFLP-E-20-M7-S-R
• Standard Component：Standard Component
• Type：Laser Source
• Transport Package：Carton
• Specification：245*200*65mm
• Trademark：JPT LASER
• Origin：China
• HS Code：9013809000
• Production Capacity：1000 Sets Per Month
• Package size per unit product：30.00cm * 30.00cm * 20.00cm
• Gross weight per unit product：10.000kg
• Lead Time：15 days (1 - 10 Sets) To be negotiated ( > 10 Sets)

Black Color on Aluminum   Color on stainless steel         Deep mark on steel
1. Feature:
JPT LP series plused fiber lasers makes use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of lemporal pulse shaping controllability.
Compared with Q-switching technology, LP seriees has greater flexibility, wider frequency range, higher control precision and superior first pulse.


2. Application Advantage:
Scribing, drilling;
Sheet metal cutting, welding;
Surface treatment;
Marking on fly;
Laser Derusting;
Metal surface processing, peeling coating.

3. Main Technical Parameters

No.	Item	Unit
1	Average output power rate	More than 20W
2	Central Emission Wavelength	1064nm
3	Output Power Stability	Less than 5%
4	Max. pulse energy	0.8mj
5	Repetition frequency adjustment range	1-4000kHz
6	Pulse Width	2-350ns
7	Beam Quality	Less than 1.3
8	Supply DC Voltage (VDC)	24V
9	Current Consumption	Less than 5A
10	Environment Supply Current	More than 5A
11	Power @20ºC	Less than 120W
12	Output beam diameter	7±0.5mm
13	Output fiber length	2m
14	Emission Bandwidth @3dB	Less than 15nm
15	Polarization Oritentation	Random
16	Output Power Tuning Range	0-100%
17	Operation Temperature	0-40ºC
18	Weight	4.4Kg
19	Cooling Method	Air Cooling

4. Related Products
4.1 Laser Source: Raycus/ MAX/ IPG

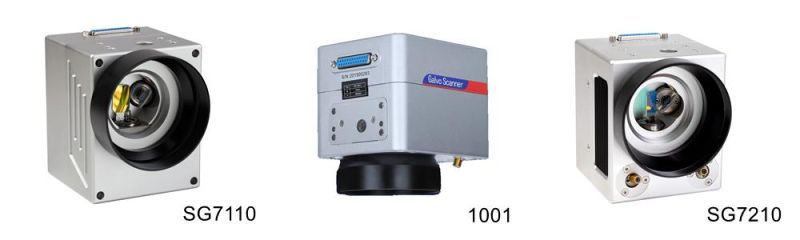

4.2 Galvanometer Scanner: SINO-GALVO

4.3 Field Lens: WAVELENTH

4.4 Marking Card/ Power Supply: BJJCZ/ MEAN WELL

4.5 Rotary Device (If need)
5. Company Introduction
CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.

Wish cooperating with you to create a better future!

6. FAQ

A. Question: What kind of our company is CCILASER?

Re: CCI is laser marking machines, laser welding machines, laser marking machines manufacturing expert since year 2002.

B. Question: How is  JPT fiber laser source guarantee?

Re: b1. laser source warrenty period is 24 months after BL time;

b2.12 hours technical support feedback;

b3. Own machining factory, which can control the spare parts quality at high quality;

b4.  Own accessories warehouse and user can enjoy the agent price.

C.Question: How is delivery time?

Re: We can delivery the machines within 7 days if we have the machines in stock.

The common machine fabricating time is 15-25 days and CNC machine fabricating time is about 25-50 days.If you have customized products, the delivery time will be given after confirmation.

D. Question: How is payment?

Re: 50% of amount as deposit and the balance should be paid by T/T or LC at sight before seller delivery the machines to loading port.

E.Question: How is our package?

Re: Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.

F. Question: Why is price higher than other supplier?

Re: f1. We have our own machining factory and the high quality technical quality is our aim;

f2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;

f3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;

f4. Our warrenty period is 24 months after BL time. It can support the new comer client going well in the beginning time.

7. Delivery Procedure


Customer Care
