10/20/30/50W Diode Pumped Laser Marking Machine Manufacturer

Shanghai Yuchang Industrial Co., Ltd.
  • Laser Visibility：Visible
  • Applicable Material：Nonmetal
  • Cooling System：Air Cooling
  • Technical Class：Continuous Wave Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Solid Laser

Base Info

  • Model NO.：LF50F
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Name：50W Diode Pumped Laser Marking Machine
  • Application：Cable, Pipe, Tags, Steel Sheet
  • Capacity：10,20,30,50W
  • System Language：English
  • Cooling：Air
  • Pulse Frequency：20 kHz - 100 kHz
  • Marking Range：110 mm X 110 mm (Can Be Customized)
  • Transport Package：Wooden Case with Foam
  • Specification：155X55X56cm
  • Trademark：CYCJET
  • Origin：Shanghai
  • HS Code：8456110090
  • Production Capacity：300units,Month

Description

Basic Info.

Model NO. LF50F Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Name 50W Diode Pumped Laser Marking Machine Application Cable, Pipe, Tags, Steel Sheet Capacity 10/20/30/50W System Language English Cooling Air Pulse Frequency 20 kHz - 100 kHz Marking Range 110 mm X 110 mm (Can Be Customized) Transport Package Wooden Case with Foam Specification 155X55X56cm Trademark CYCJET Origin Shanghai HS Code 8456110090 Production Capacity 300units/Month

Product Description

10/20/30/50W Diode Pumped Laser Marking Machine Manufacturer
10/20/30/50W Diode Pumped Laser Marking Machine Manufacturer
Application:

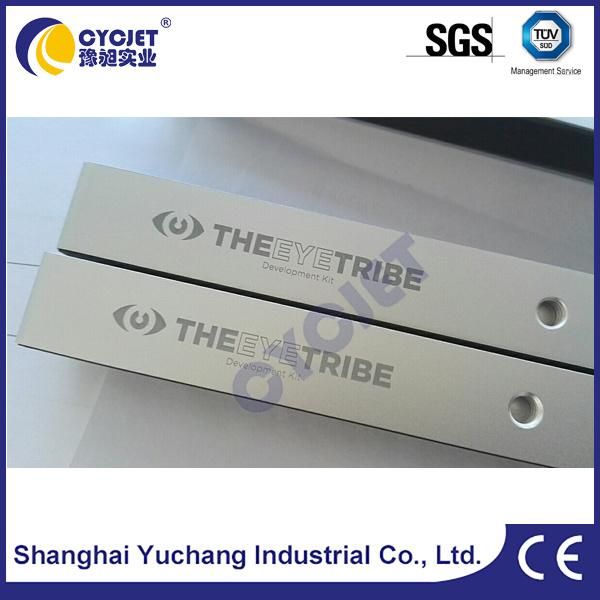

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

Advantages:

1, Perfect design software, easy to learn and operation
2, Less Mechanical Faliure
3, Operation Status: Fly and Standstill

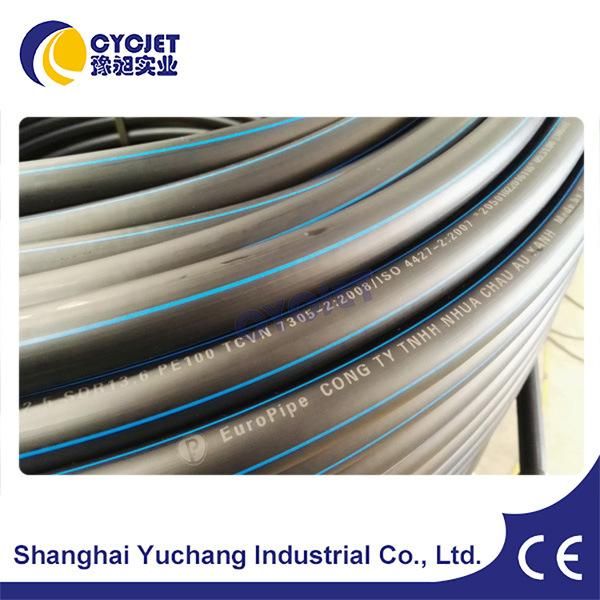

4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter.
5, The code can not move or erase it
6, No consumer goods, less production cost

Terms Of Payment:
T/T, LC

After-sale Service
1, Warranty Valid: 18 Month
2, Online or Spot Training

Details and Specifications:

Specifications		Laser Device: Fiber
Output Power: 10/20/30/50W
Beam quality M2: <2
Laser wavelength: 1064 nm
Air cooling
Pulse frequency: 20 KHZ - 100 KHZ
Marking range:
110 mm x 110 mm (can be customized)
MarkingSpeed:7000mm/s
Marking Depth: ≤0.3mm
Marking Line Width: 0.01-0.2mm (based on difference material)
Min character Size: 0.015mm.
Repeat accuracy: + / - 0.003 mm
Marking area locating: Red-light locating system.
Power supply:
AC 100-260 v 50/60 hz
Power: ≤800W
Delivery&PackageDelivery Time: 3-7 days after received Advance Payment
By Vessel or Air Plane
Standard Package: Wood Carton, Carton Box
