• Model NO.：PEDK-130180
• Laser Technology：Laser Flame Cutting
• Power：100W
• Drive Type：Stepper Drive
• Certification：Ce, ISO 9001
• Laser Type：CO2
• Control：Automatic
• Current：AC
• Condition：New
• Usage：Wood, Acrylic, Leather
• Cooling Mode：Water Cooling and Protect System
• Water Cooling and Protect System：CNC Professional Control System
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：CE & ISO 9001: 2000
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：1500 Units, Month

Basic Info.

Model NO. PEDK-130180 Laser Technology Laser Flame Cutting Power 100W Drive Type Stepper Drive Certification Ce, ISO 9001 Laser Type CO2 Control Automatic Current AC Condition New Usage Wood, Acrylic, Leather Cooling Mode Water Cooling and Protect System Water Cooling and Protect System CNC Professional Control System Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification CE & ISO 9001: 2000 Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 1500 Units/ Month

Product Description

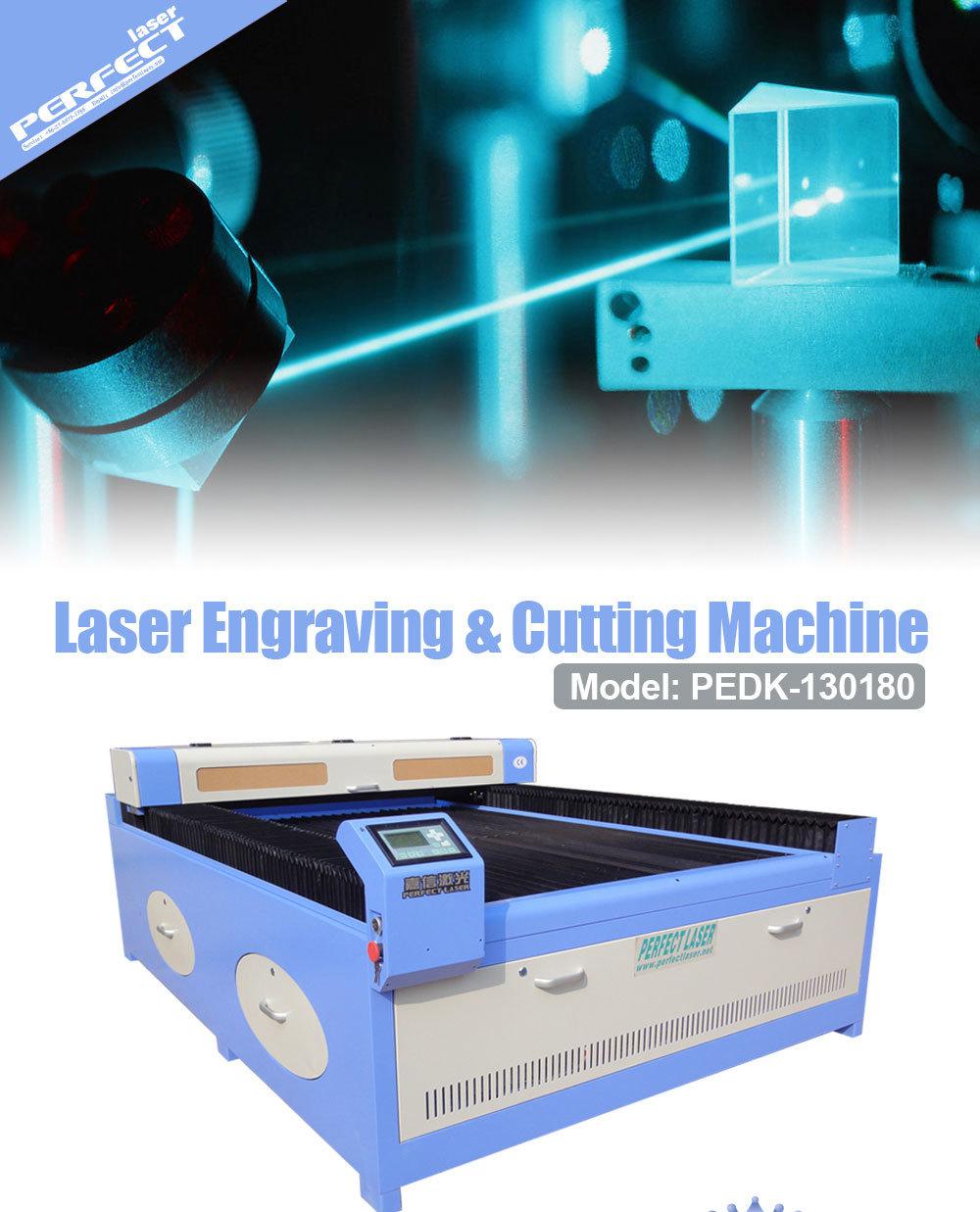

 100w 120w co2 3d wood mdf laser engraving machine 130180(Model: PEDK-130180)

Applicable Fields:

Our mdf laser engraving machine has been widely used for engraving and cutting on nonmetal material, including Acrylic, Organic Glass, Crafts, Furniture, Glasses, Wood, PVC, Lightings, Advertising and decorating, pater, packaging ithography, mark plate, atomic stamp & seals, bamboo products, trademarks, embroidery, apparel and other industries. Adoptable for clothing tailoring, embroidery cutting, leather punch Pierced menthol cutting carving processing.



Features:

1) Advanced LCD Touch Screen+ USB port+ Offline Control, which can not only work without computer, but also connect to U disk, USB communication.

2)LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

4) Special Front and back running-through design, the unique door for the limitless engraved materials through.

5)Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;

6) Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.

8)High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.

9) Red Light Pointer realizes the exact position without laser.

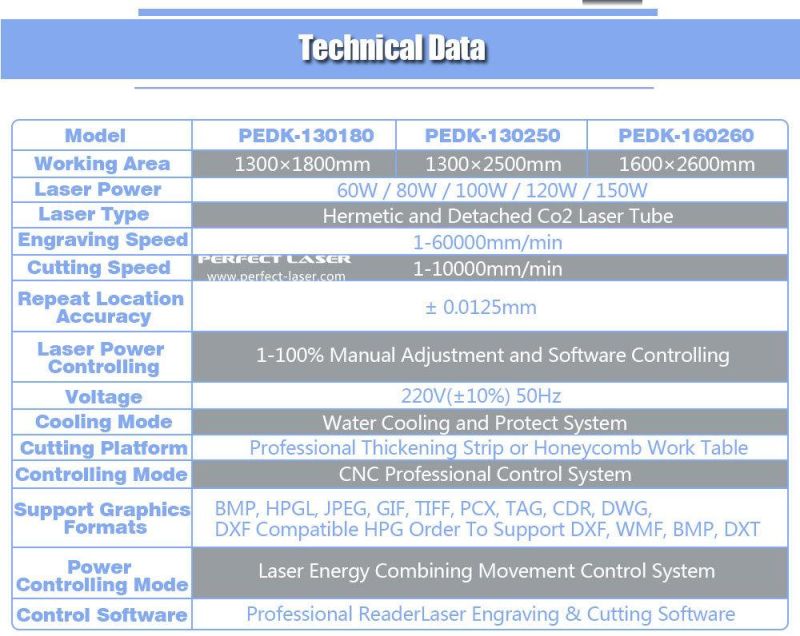

Technical Data:

Model	PEDK-130180 laser engraver
Working Area	1300×1800mm
Laser Power	80w,100w, 120w, 150w, 180W laser tube
Laser Type	Hermetic and Detached Co2 Laser Tube
Engraving Speed	1-60000mm/min
Cutting Speed	1-10000mm/min
Repeat Location Accuracy	± 0.0125mm
Laser Power Controlling	1-100% Manual Adjustment and Software Controlling
Voltage	220V(±10%) 50Hz
Cooling Mode	Water Cooling and Protect System
Cutting Platform	Professional Thickening Strip or Honeycomb Work Table
Controlling Mode	CNC Professional Control System
Support Graphics Formats	BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible  HPG Order To Support DXF, WMF, BMP, DXT
Power Controlling Mode	Laser Energy Combining Movement Control System
Control Software	Original Perfect Laser Engraving & Cutting Software

Working Video:

Acrylic, PVC board Laser Engraving machine	http://youtu.be/6ey2lmpzMlI
Fabric Garment Cloth Laser Cutting Machine	http://youtu.be/QqwQRKKiajQ
Leather Laser Engraving & Cutting Machine	http://youtu.be/sbfxlLxZXl8
Double Head with Galvanometer Scanning Head	http://youtu.be/YoKDVL7vwBw
Wood Laser Cutting Machine	http://youtu.be/UDzcYGRXOKE
Wood Laser Engraving Machine	http://youtu.be/3Mp99xHgg9E

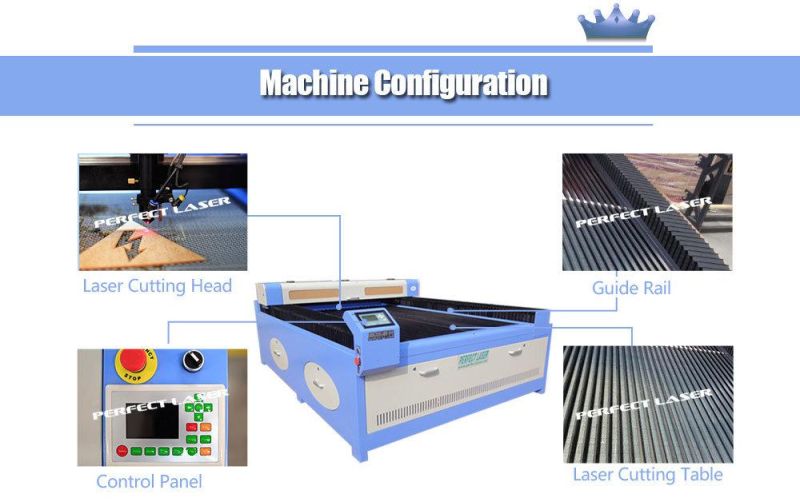

Machine Photo :
Samples photo:



Company After -Sales- Service rule:

1> We produce and export laser equipments over 18 years. We had been exporting to 130 different countries. Our company has acquired the European CE Certificate, ISO9001: 2000 quality system certificate. Our products quality and steady had been improved step by step.

2> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. And all of our machine with a 12 months quality guarantee period.

3>We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.

4> We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
 5> Our engineer can make a door-to-door instruction training service.
Contact us:
Perfect Laser Co., Ltd. (China)
Contact: Nicole / Sales Department
Tel: 0086-27-86791986  MP: 0086-13659886768  Fax: 0086-27-86775865




Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).


Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact China Perfect Laser!

1. The exact material you want to cut? (Acrylic, Wood, Leather, Paper, , , , etc)
2. The cutting depth on above materials? (Like, 3 mm, 5 mm, 7 mm, 15 mm...)T
3. he working area you demand? (max dimension of material, width*length, 400*300mm, 1300*900 mm, 1300*2500mm...)
