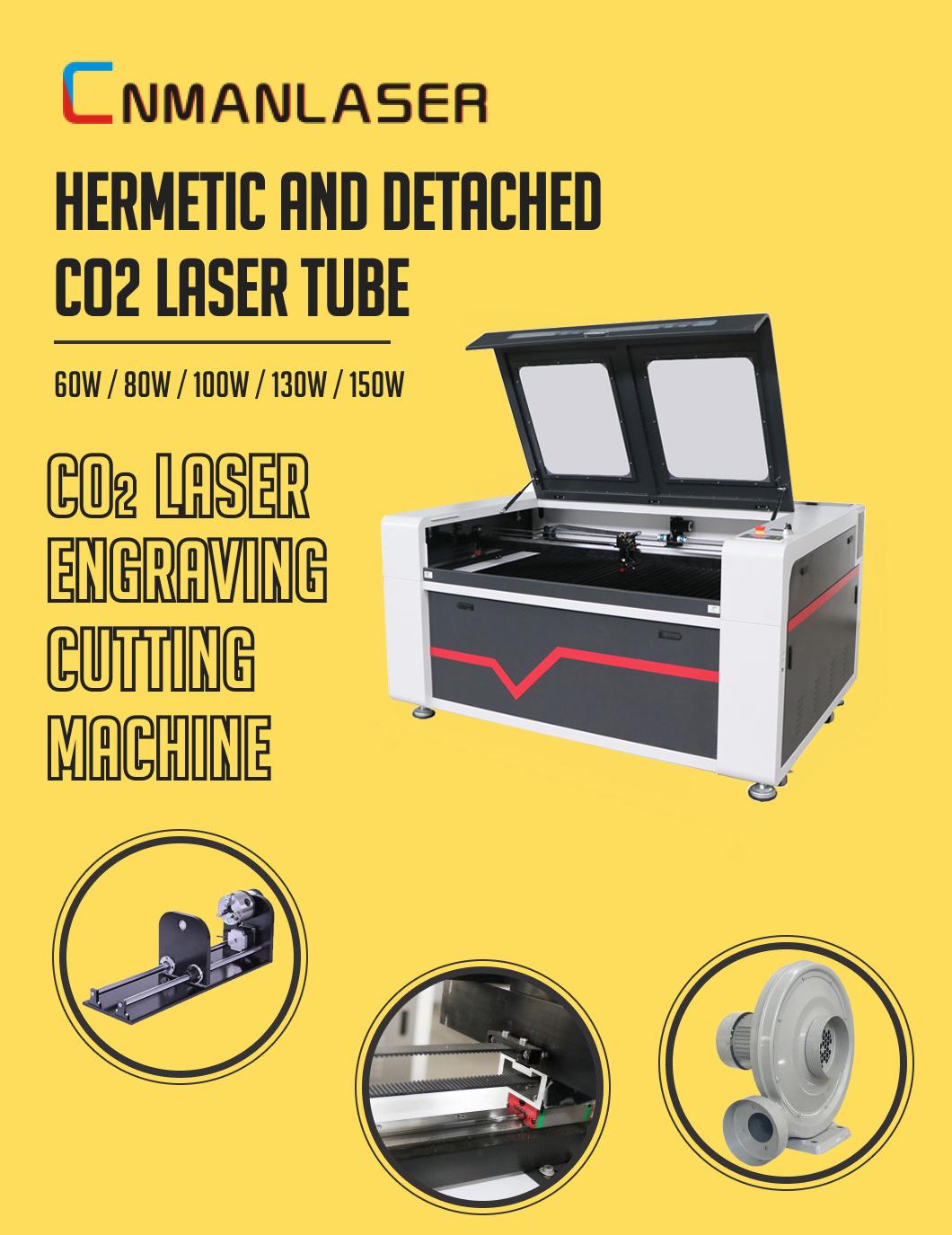

Laser Mat Board Cutting Machine Edge Knife Sharpening Machine Laser for Sale
Shandong Man Machinery Equipment Co., Ltd.- Cooling System：Laser Engraver
- Technical Class：Leather Laser
- Applicable Material：Leather, Paper, Rubber, Acrylic
- Structure Type：Laser Cutter
- Laser Classification：CO2 Laser Engraving Machine
- Laser Technology：Laser Cutting Machine
Base Info
- Model NO.：MAN-1390
- Laser Power：60W ,80W ,100W, 150W ,180W
- Engraving Speed：0-64000mm,Min
- Cutting Speed：0-36000mm,Min
- Preposition Accuracy：0.1mm
- Cutting Platform：Blade or Honeycomb Table
- Driving System：Stepper Motors
- Power Supply：AC220V 50Hz
- Certification：CE FDA ISO
- Transport Package：Wooden Box
- Specification：CO2 Laser engraving machine
- Trademark：CNMANLASER
- Origin：Shandong
- HS Code：8456110090
- Production Capacity：500 Set,Month
Description
Basic Info.
Model NO. MAN-1390 Laser Power 60W /80W /100W/ 150W /180W Engraving Speed 0-64000mm/Min Cutting Speed 0-36000mm/Min Preposition Accuracy 0.1mm Cutting Platform Blade or Honeycomb Table Driving System Stepper Motors Power Supply AC220V 50Hz Certification CE FDA ISO Transport Package Wooden Box Specification CO2 Laser engraving machine Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/MonthProduct Description
Laser Mat Board Cutting Machine Edge Knife Sharpening Machine Laser for Sale
TECHNICAL PARAMETER :
| Model | MAN-1390 |
| Working area | 1300*900mm |
| Laser Type | Hermetic CO2 glass tube |
| Power supply | AC220/110, +-10% |
| Max moving speed | 0-25000mm/Min |
| Worktable | honey comb/aluminium knife/(optional) |
| Locating precision | <0.01mm |
| Mini Shaping character | character:3x3mm, letter:2x2mm |
| Operating temperature | 5-35 centigrade |
| Resolution ratio | ≤4500DPI |
| Control configuration | DSP |
| Data transfer interface | USB(offline) |
| System environment | windows2000/XP/Vista/Win7/Win8/win10 |
| Cooling way | water cooling and protection system |
| Graphic format supported | the files which CorelDraw, Photoshop, AutoCAD can identify(BMP, GIF,JPGE, PCX, TIFF,PLT, CDR.DMG etc.) |
| Compatible software | CorelDraw, AutoCAD |
| Cutting thickness | 0-30mm(depends on different materials) |
| Color separation | up to 256 colors |
| Protection when water supply stops | yes |
| Net weight/ gross weight | 400kg |

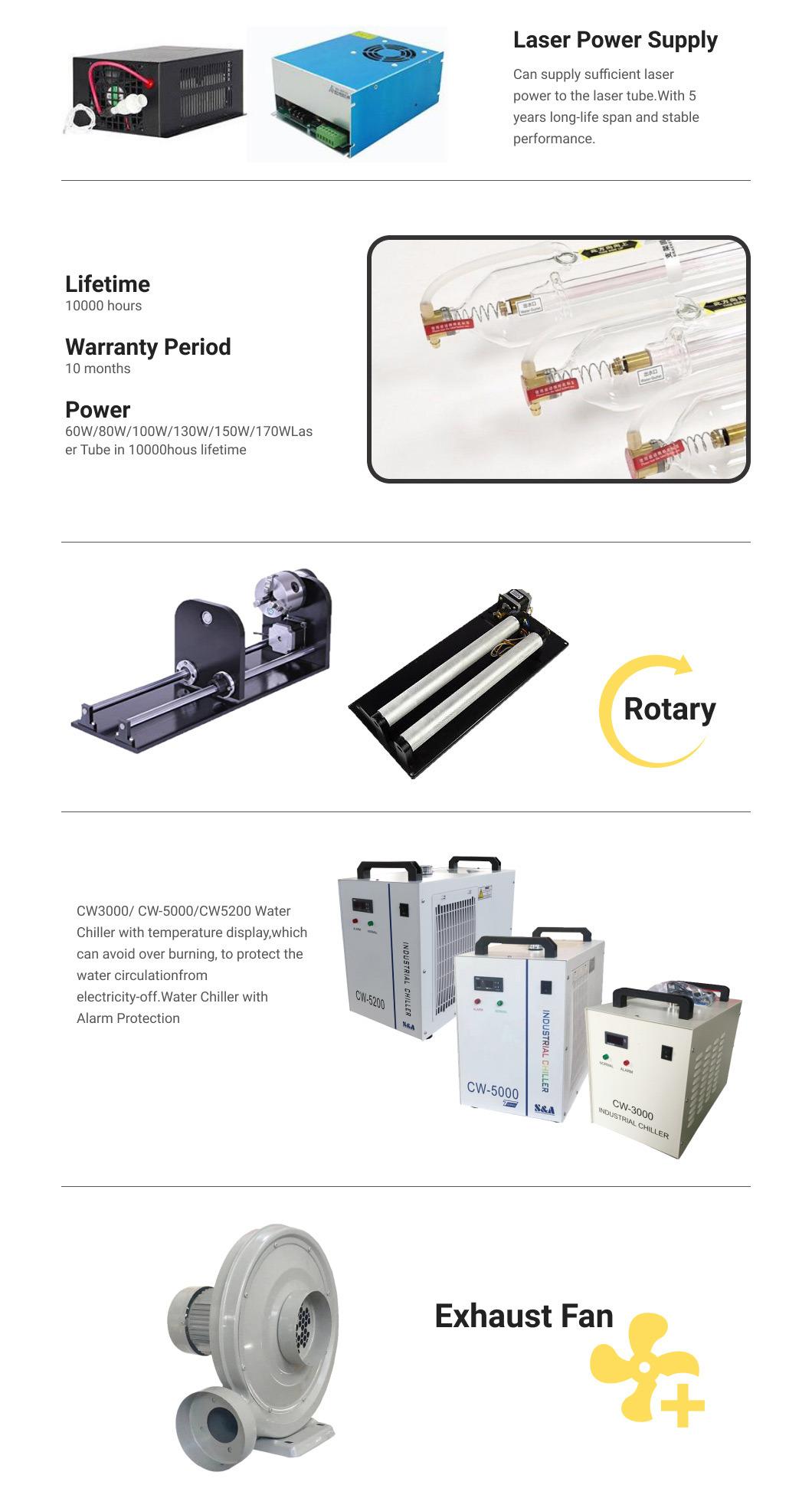

| Optional parts | high grade cooling system CW5000/double-head/rotary axis |
PACKAGING & SHIPPING :
SERVICES :
